WAGNER TUNING 400001003.FM Front mounted radiator BMW M2/M3/M4 S55

Description WAGNER TUNING 400001003.FM Front mounted radiator BMW M2/M3/M4 S55

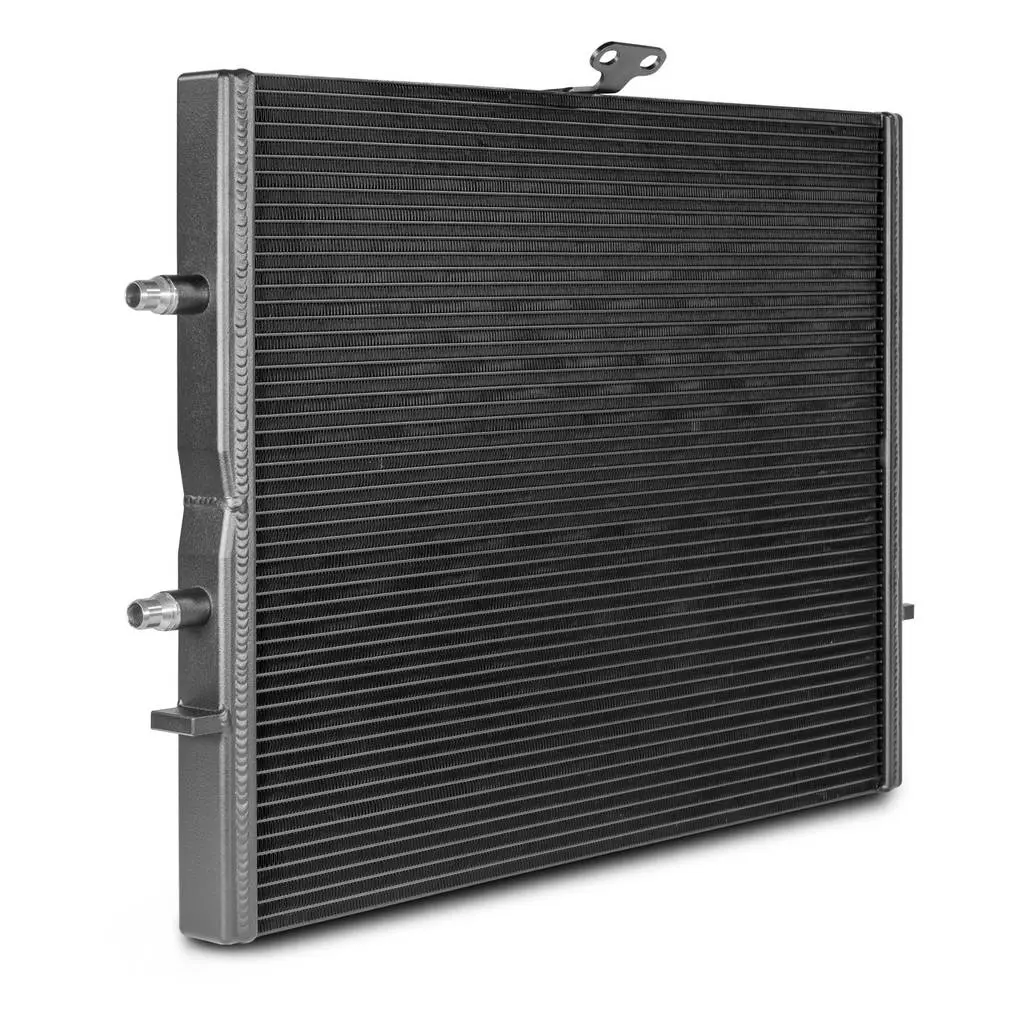

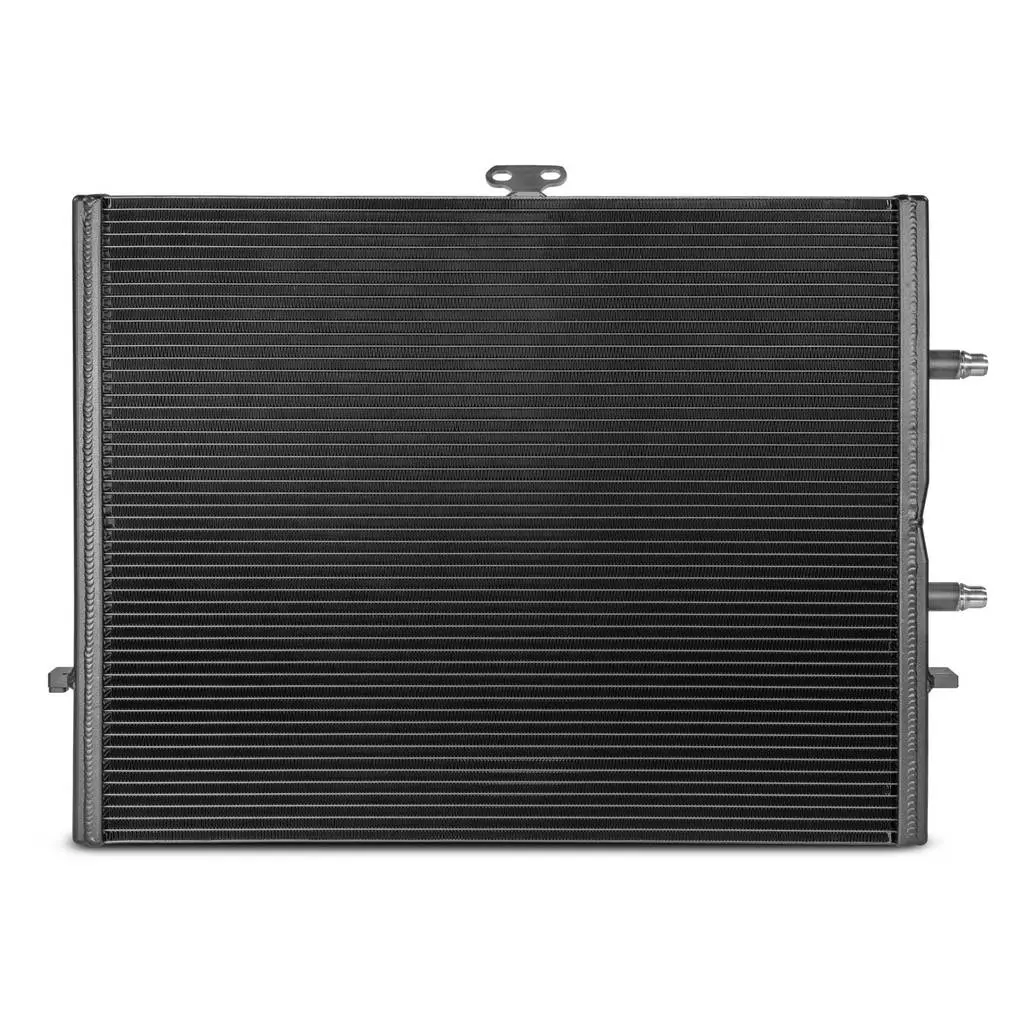

The Wagner Tuning Competition Front Water Cooler is designed for the BMW M3/M4 (F80, F82, F83) equipped with the 3.0L S55B30 turbo engine. This upgrade increases the volume of the front-mounted cooler in the low-temperature circuit by 89% compared to the standard part, ensuring improved thermal stability and consistent maximum performance. The kit now includes a parts certificate for legal compliance.

The high-performance competition racing core provides maximum heat transfer and sufficient airflow for all adjacent components. The cooler is equipped with a heat-conducting anti-corrosion coating for long-term reliability. Installation is straightforward and nearly plug and play, with detailed instructions included.

• Front water cooler increases low-temperature circuit volume by 89% over OEM
• Includes parts certificate for legal compliance and registration
• Effectively lowers coolant temperature in the indirect intercooler circuit
• High-performance competition racing core ensures maximum heat transfer

Specifications:

• OEM water cooler dimensions: 590 mm x 308 mm x 25 mm
• OEM volume: 4.5 liters
• OEM surface area: 1817 cm²
• Wagner Tuning water cooler dimensions: 568 mm x 468.4 mm x 32 mm
• Wagner Tuning volume: 8.5 liters (+89%)
• Wagner Tuning surface area: 2660.5 cm² (+46.4%)
• Radiator core: Competition racing intercooler core
• Part number: 400001003

Kit comes with::

• 1x front water cooler (low-temperature circuit)
• 1x installation instructions

Vehicle Compatibility:

• BMW M3 F80 (sedan) with S55B30 engine
• BMW M4 F82 (coupe) with S55B30 engine
• BMW M4 F83 (convertible) with S55B30 engine

Part numbers: 400001003.FM, TUNING

Special order: imported to order. Contact us for price and availability.
