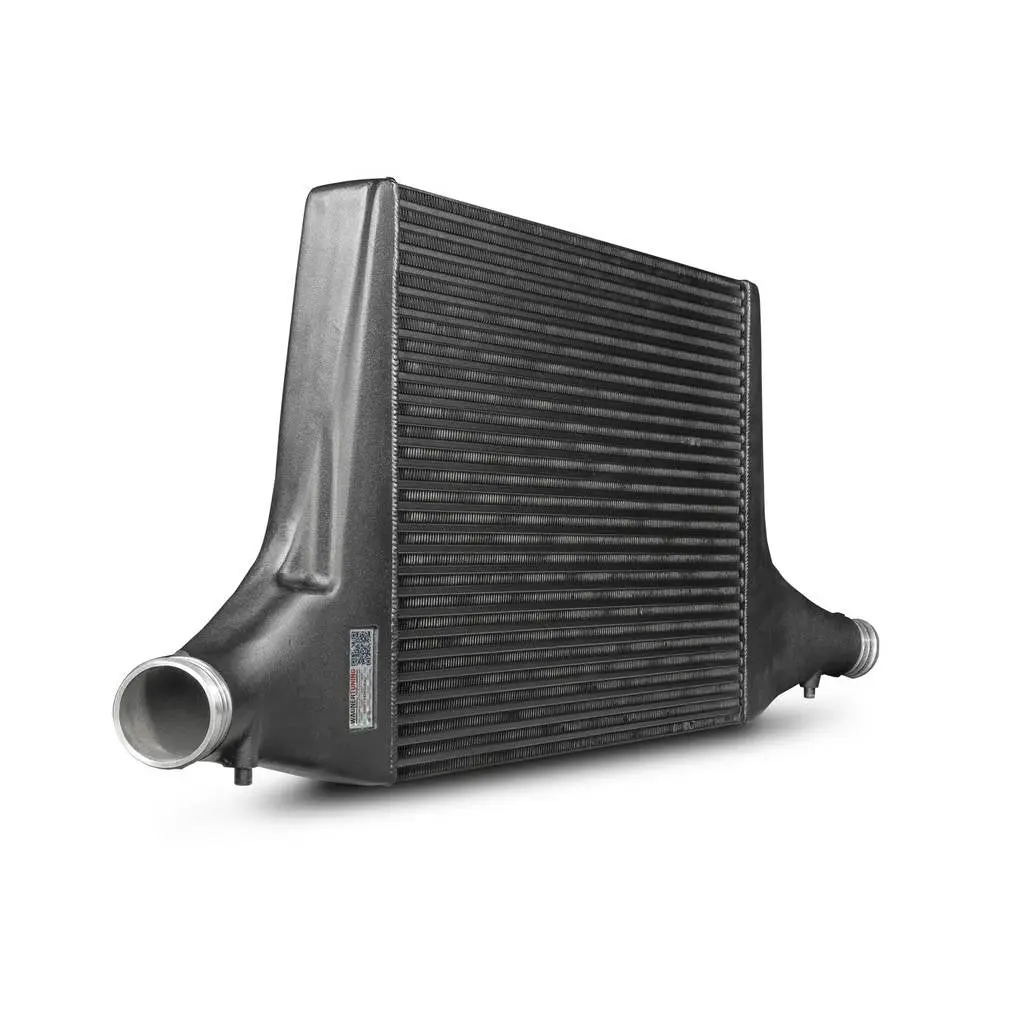

WAGNER TUNING 200001156 Competition Intercooler Kit AUDI A6 C8 45TDI

Description WAGNER TUNING 200001156 Competition Intercooler Kit AUDI A6 C8 45TDI

Featuring a 105% increase in charge air volume and a 134% larger flow area compared to the standard intercooler, this unit ensures more cool, dense air reaches the engine. The high-quality tube fin mesh with internal turbulators and cast aluminum end boxes, optimized using CFD simulations, maximize airflow and cooling efficiency while minimizing back pressure. Installation is straightforward with a plug-and-play design, and the intercooler is tested to withstand up to 6 bar of pressure. A special anti-corrosion coating with excellent thermal conductivity ensures long-lasting performance, and the lightweight 9.5 kg construction is suitable for racing applications.

• 105% more charge air volume compared to OEM
• 134% larger flow area for improved airflow
• Plug-and-play installation with no complex modifications required
• Pressure-stable up to 6 bar and lightweight at 9.5 kg

Specifications:

• Mesh dimensions: 550 mm x 445 mm x 70 mm
• Flow area: 2447 cm² (+134% vs. OEM 1044 cm²)
• Mesh volume: 17.13 liters (+105% vs. OEM 8.35 L)
• Inlet/outlet: Ø62 mm / Ø67 mm
• Weight: 9.5 kg
• Installation: Plug-and-play
• Part number: 200001156

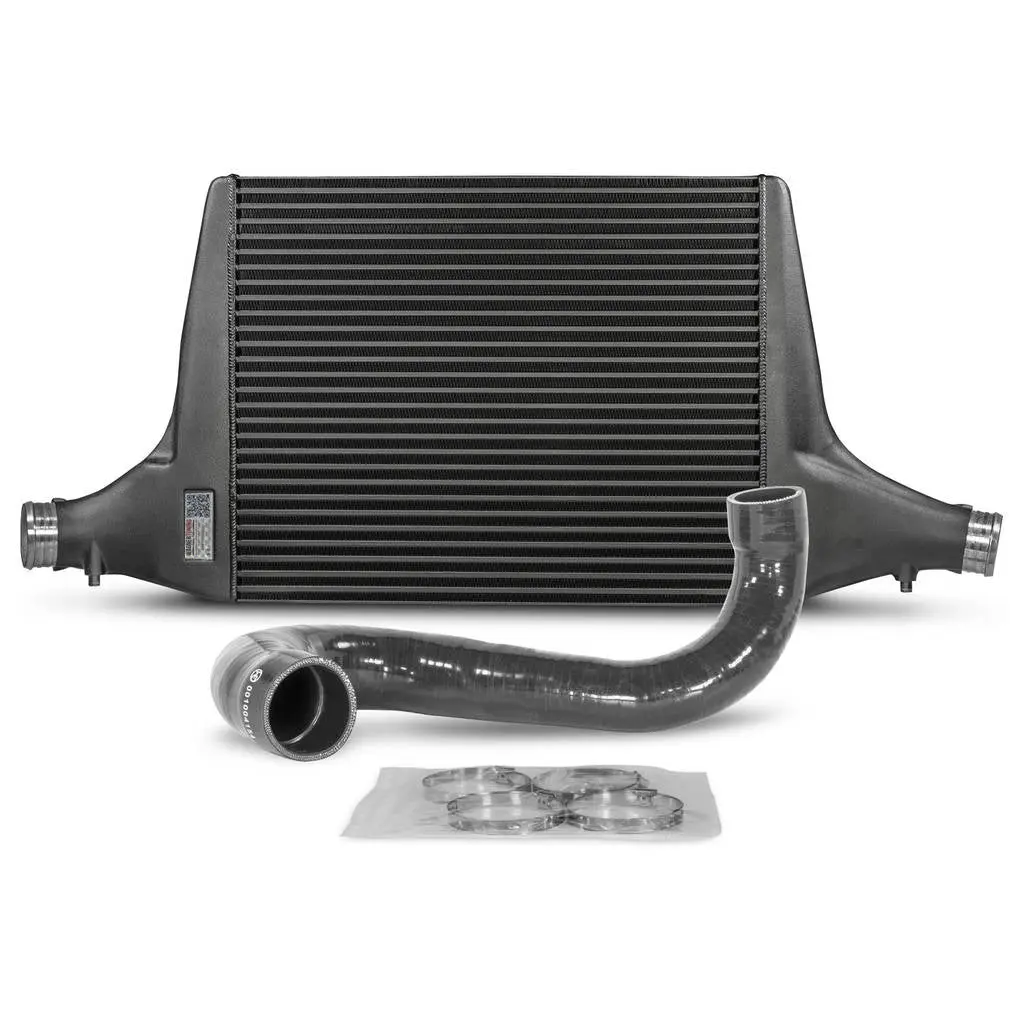

Kit comes with::

• 1x intercooler (black coated)
• 1x silicone hose (black)
• 1x mounting material
• 1x installation instructions

Vehicle Compatibility:

• 2018-on Audi A6 (C8) 45 TDI (170 kW/231 hp)
• 2018-on Audi A6 (C8) 50 TDI (210 kW/286 hp)
• 2018-on Audi A7 (C8) 45 TDI (170 kW/231 hp)
• 2018-on Audi A7 (C8) 50 TDI (210 kW/286 hp)

Part numbers: 200001156, TUNING

Special order: imported to order. Contact us for price and availability.
