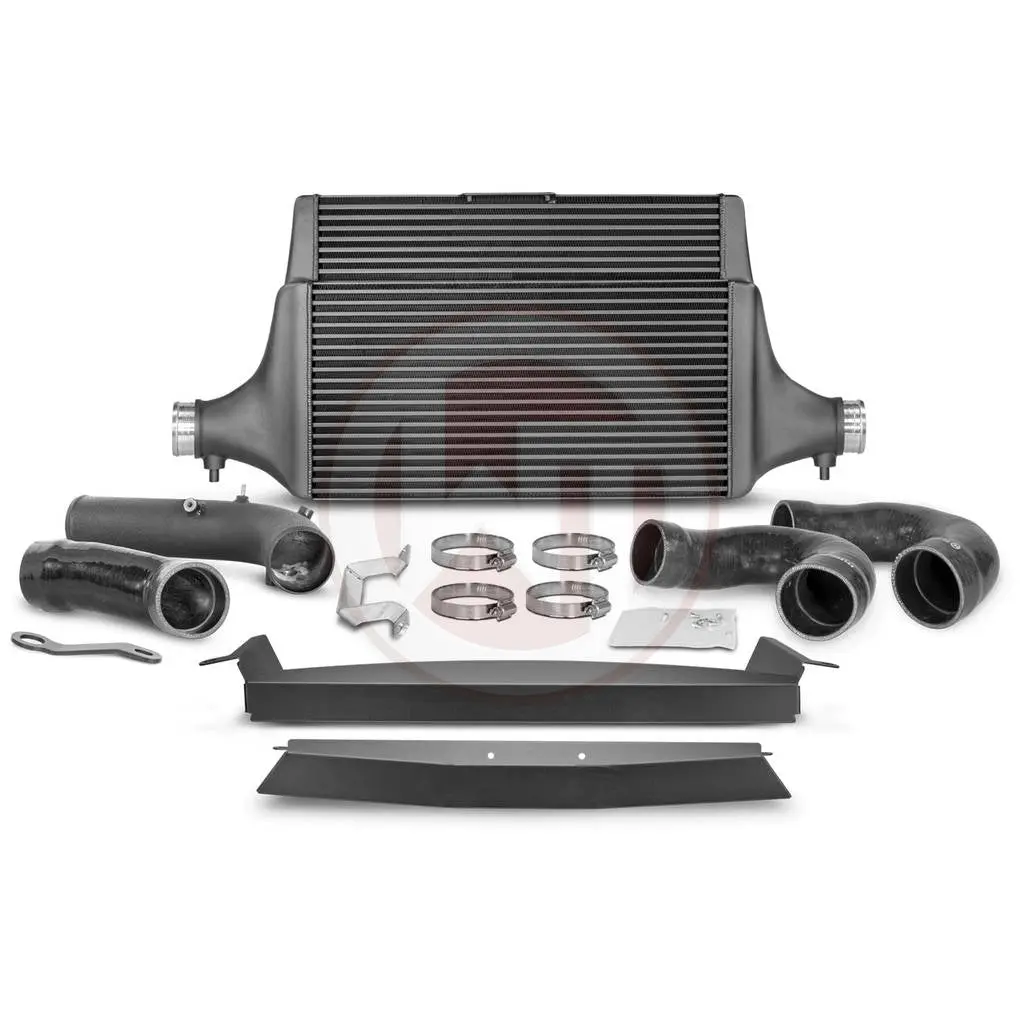

WAGNER TUNING 200001142.PIPE Competition Intercooler Kit + Pipe KIA Stinger GT (EU)

Description WAGNER TUNING 200001142.PIPE Competition Intercooler Kit + Pipe KIA Stinger GT (EU)

The COMPETITION CHARGE AIR COOLER KIT is designed to unlock the true potential of the Kia Stinger GT 3.3T-Gdi AWD (EU). The Wagner Tuning charge air cooler features a 175% larger inflow area and 183% more charge air volume compared to the stock intercooler.

This high-performance charge air cooler uses a Competition core (Tube Fin) with a stepped design, offering improved cooling performance and optimized internal airflow. The cast aluminum end boxes are precision-designed in CAD and optimized through CFD simulations. An incorporated air baffle ensures even filling, while the high-performance mesh allows sufficient airflow to adjacent components.

The anti-corrosion coating provides excellent heat conduction and long-lasting protection. Installation is straightforward at the original mounting points (plug and play). The kit includes an inlet and outlet diameter of 76 mm and offers optional accessories, such as a 76 mm aluminum charge air tube.

• 175% larger inflow area compared to OEM
• 183% more charge air volume than stock intercooler
• Optimized internal airflow with CAD and CFD-designed end boxes
• Plug and play installation at original mounting points

Specifications:

• Weight: 14.6 kg
• Inlet and outlet diameter: 76 mm
• Core dimensions (Wagner Tuning intercooler): 600 mm x 445(315) mm x 105(60) mm [stepped design]
• Core volume (OEM intercooler): 8.75 L
• Core area (OEM intercooler): 972 cm²
• Core volume (Wagner Tuning intercooler): 24.8 L
• Core area (Wagner Tuning intercooler): 2670 mm²
• Part number: 200001142

Vehicle Compatibility:

• Kia Stinger GT 3.3T-Gdi AWD (EU)

Part numbers: 200001142.PIPE, TUNING

Special order: imported to order. Contact us for price and availability.
