The Kit included Front light weight aluminium wishbones (left and right).

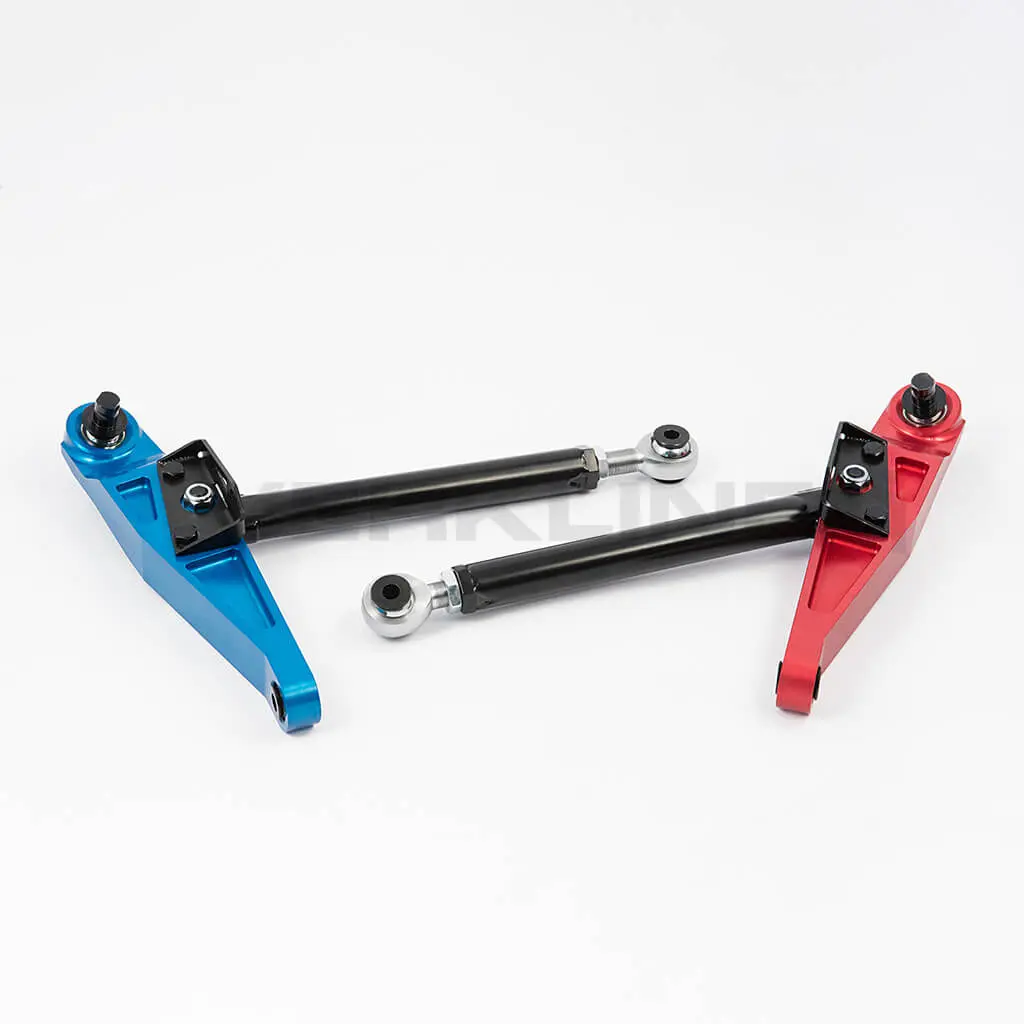

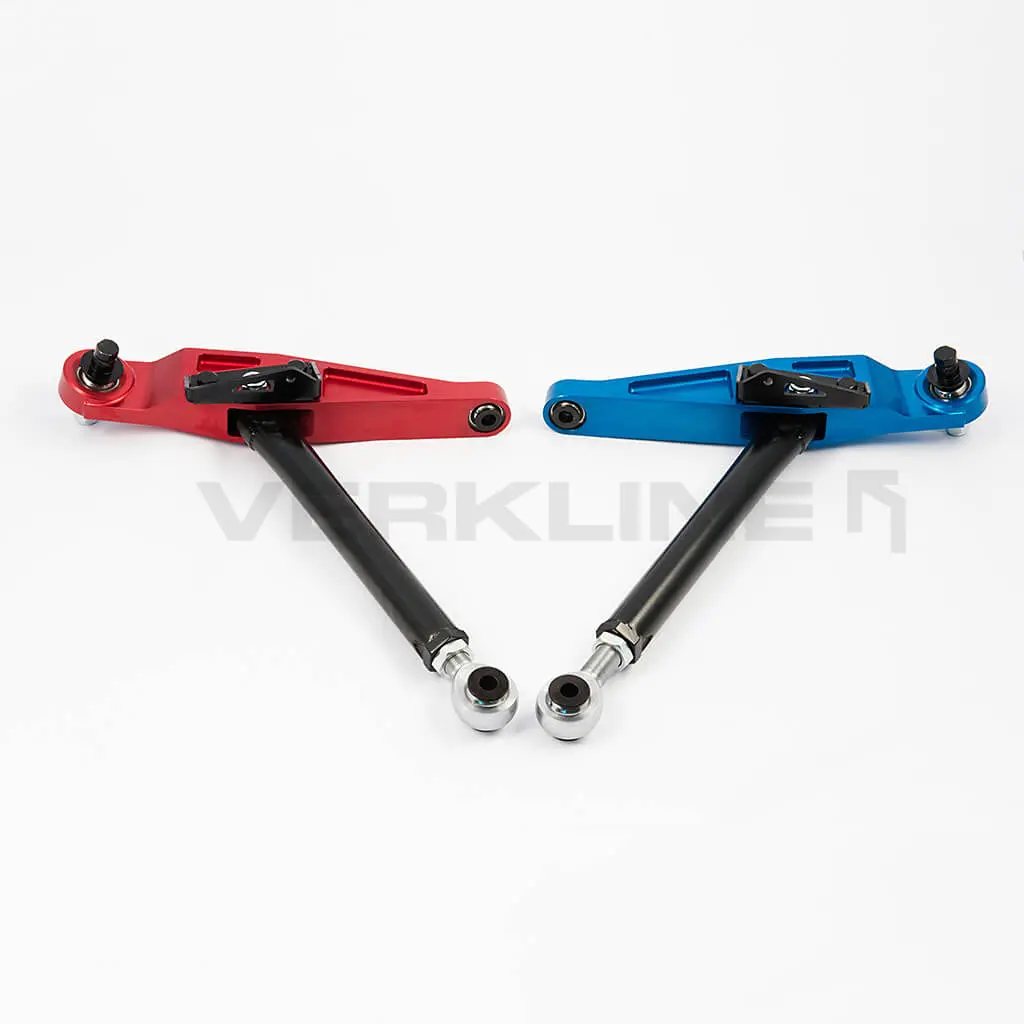

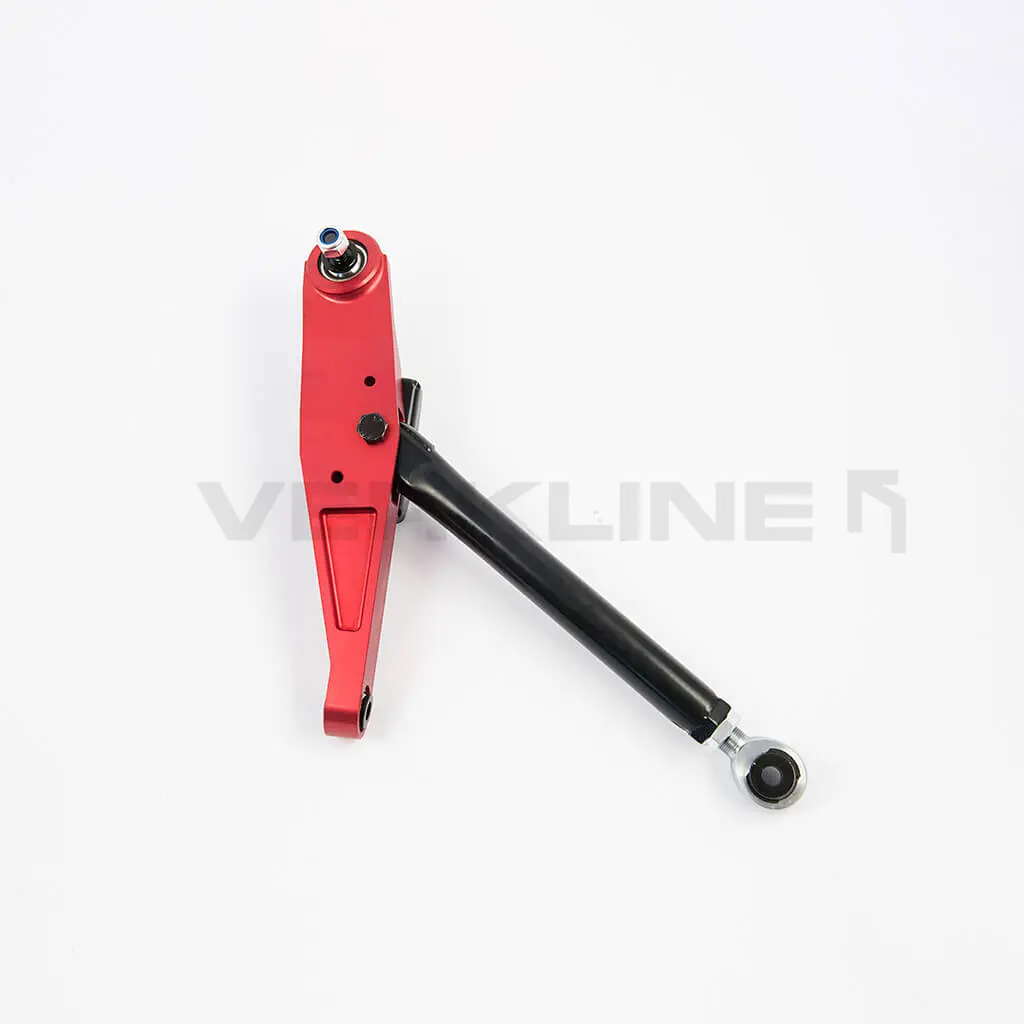

VERKLINE WAS-802-803 Front Arms Assembly Kit R4 for MITSUBISHI EVO X
SKU: WAS-802-803 | Brand: Verkline
Approximate Rs 3,47,366.29 not incl. of customs and shipping.
Call or message us for the price and availability.
The Kit included
- Front light weight aluminium wishbones (left and right).
- Two pins for uprighs.
- Two M22 motorsport rod ends.
- Four motorsport bearings.
- Two arm antiroll brackets.
- Spacer sleeves for assemble of the rod ends in the front subframe.
- Six 10.9 bolts used.
- Four 10.9 screws used.
Features
- R4 spec front suspension arm.
- Comes preassembled ready for fitment in the car.
- Allow increased caster and camber adjustment.
- R4 rally kit compliant.
- Same rod end suppler as for original R4 kit.
- Greater strength over OEM wishbones.
- Wishbones are anodized in red and blue colors.
Technical details
- Manufactured from 7075 aluminium on 5 axis CNC.
- T45 tubing used.
- Pins made from 42CrMo4.
- Tig Welded.
- Full 3D CAD designed.
- FEA Tested and additional reinforcement to the original design was made.
Notice: Works only with R4 front subframe WAS-821 or equivalent.
Part numbers: WAS-802-803
Special order: imported to order. Contact us for price and availability.
