High-strength forging manufacturing method is adopted rather than the mainstream casting method used for commercial vehicles.

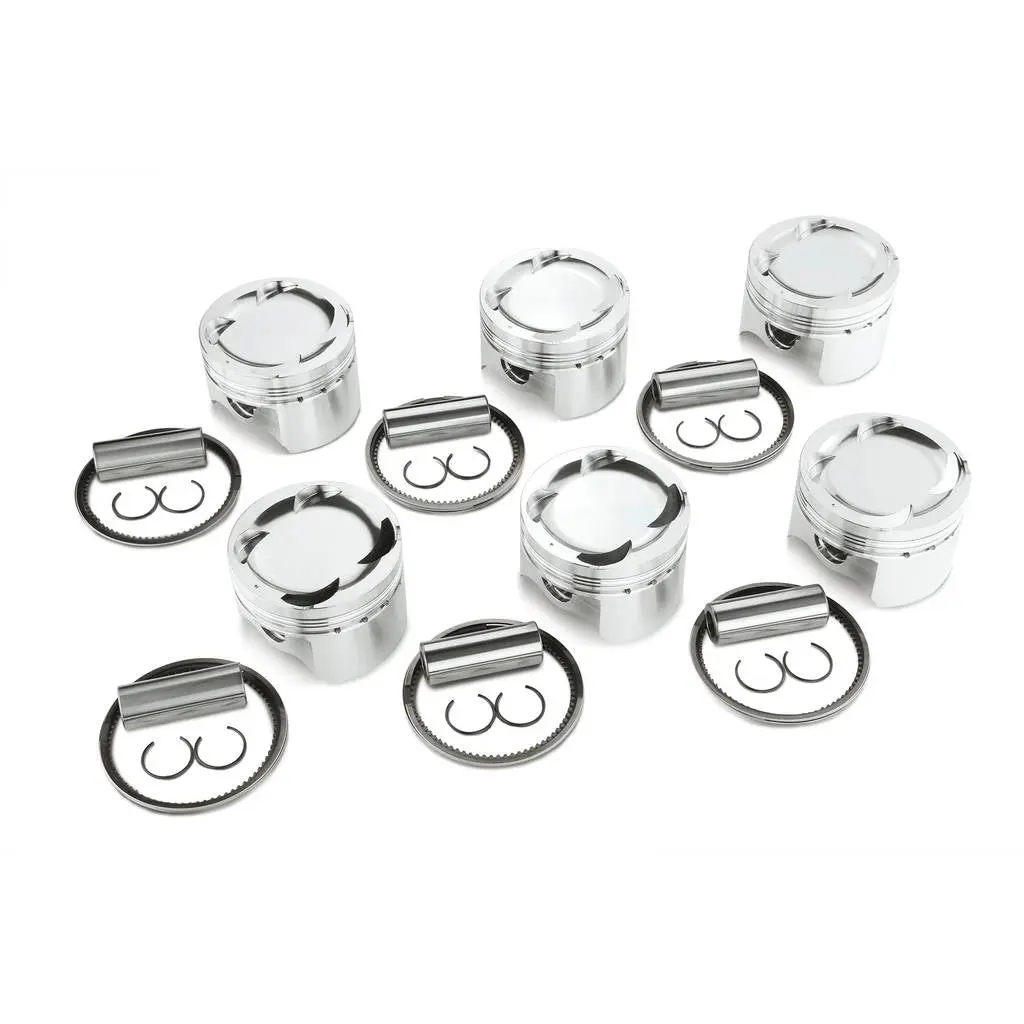

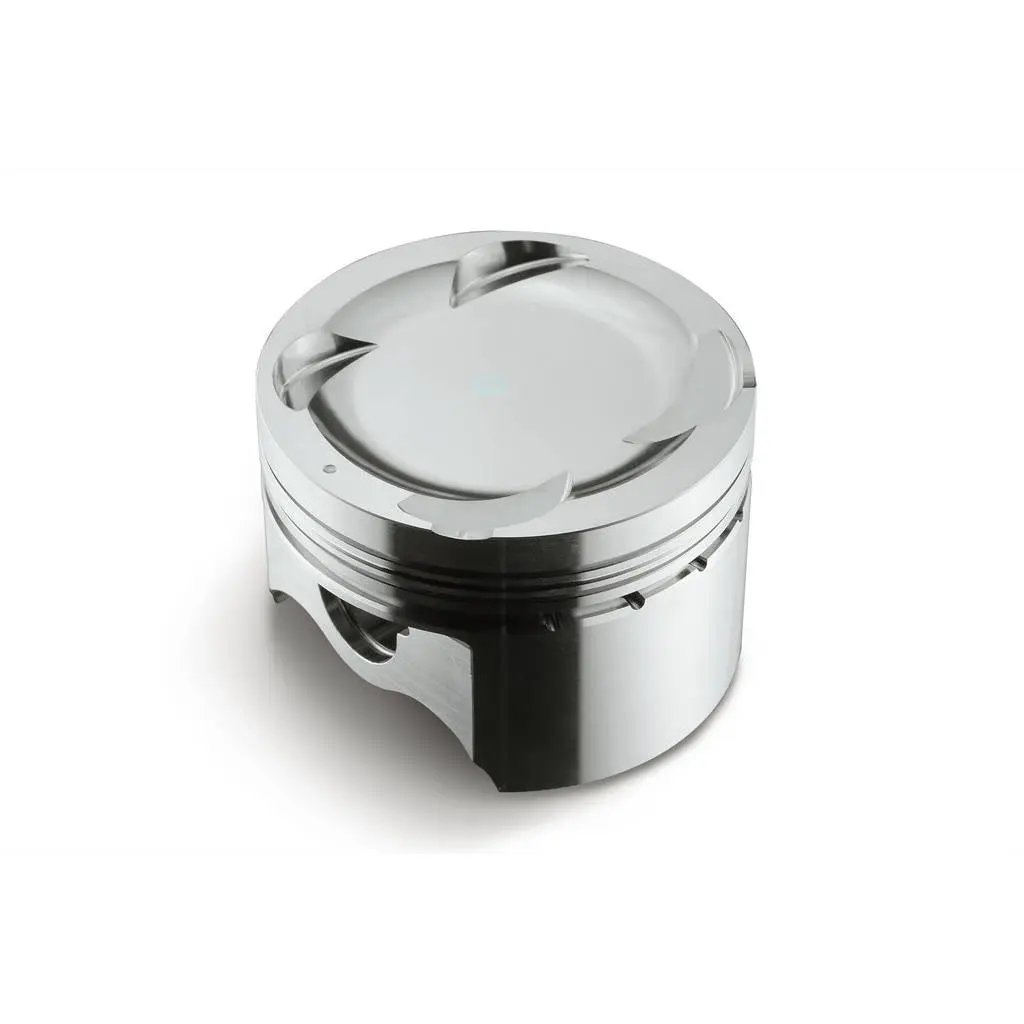

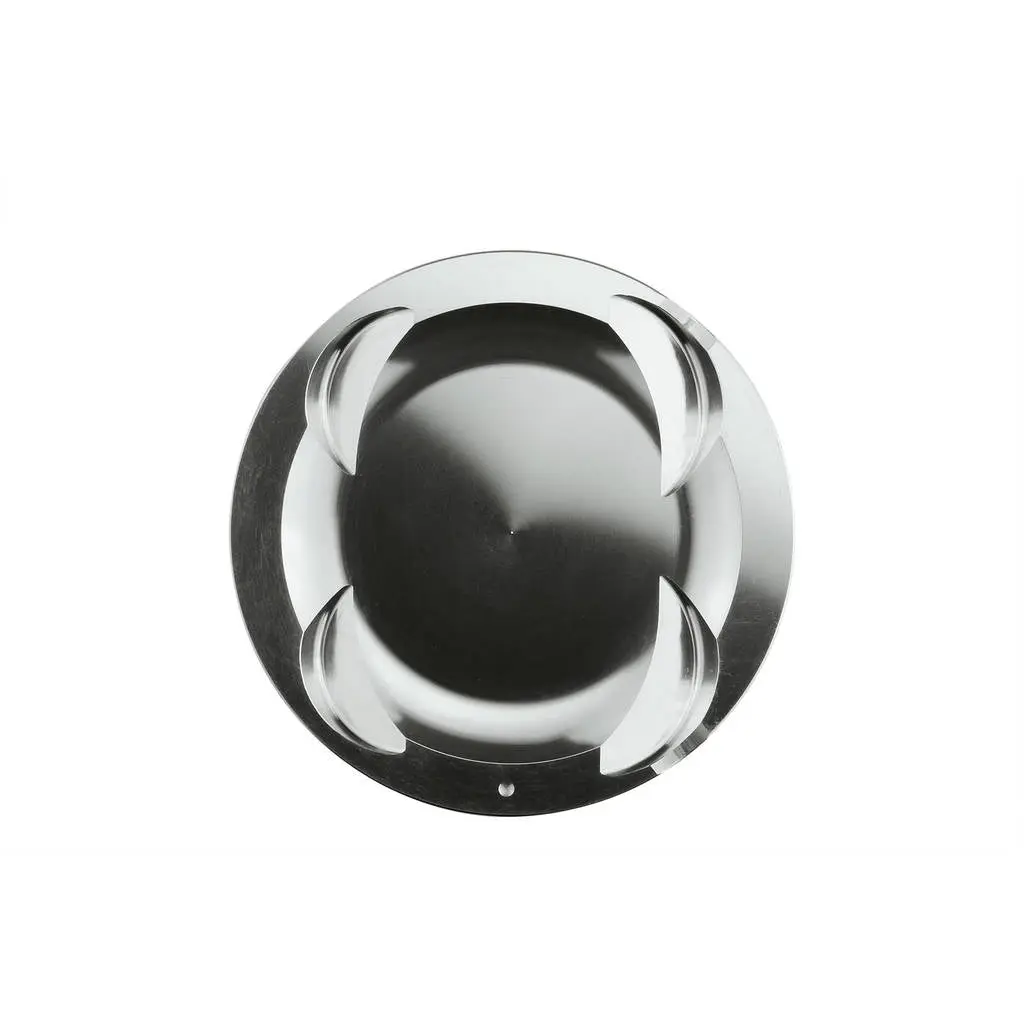

TOMEI TA202A-TY03F Forged Piston Kit 86.50 mm for 2JZ-GTE
SKU: TA202A-TY03F | Brand: Tomei
Approximate Rs 2,19,062.01 not incl. of customs and shipping.
Call or message us for the price and availability.
High-strength forging manufacturing method is adopted rather than the mainstream casting method used for commercial vehicles. Taking advantage of high temperature strength and high strength, weight reduction is achieved by making the walls thinner.
Application 2JZ-GTE Type TOMEI Bore (mm) 86.50 (OEM +1.0) Pin Diameter (mm) 22.0 Pin Length (mm) 60.0 Circlip Inner Diameter (mm) 22.0 Valve Recess WITH Compression Height (mm) 34.00 (OEM ±0.0) Piston Volume (cc) -14.6 Piston Weight (g) 369.3 Pin Weight (g) 121.5 Total Weight (g) 490.8 Top Ring (mm） 1.20 x 3.05 Second Ring (mm） 1.20 x 3.90 Oil Ring (mm） 2.50 x 2.95 Piston Material A4032 Compatibility
Part numbers: TA202A-TY03F
Special order: imported to order. Contact us for price and availability.
