High-strength forging manufacturing method is adopted rather than the mainstream casting method used for commercial vehicles.

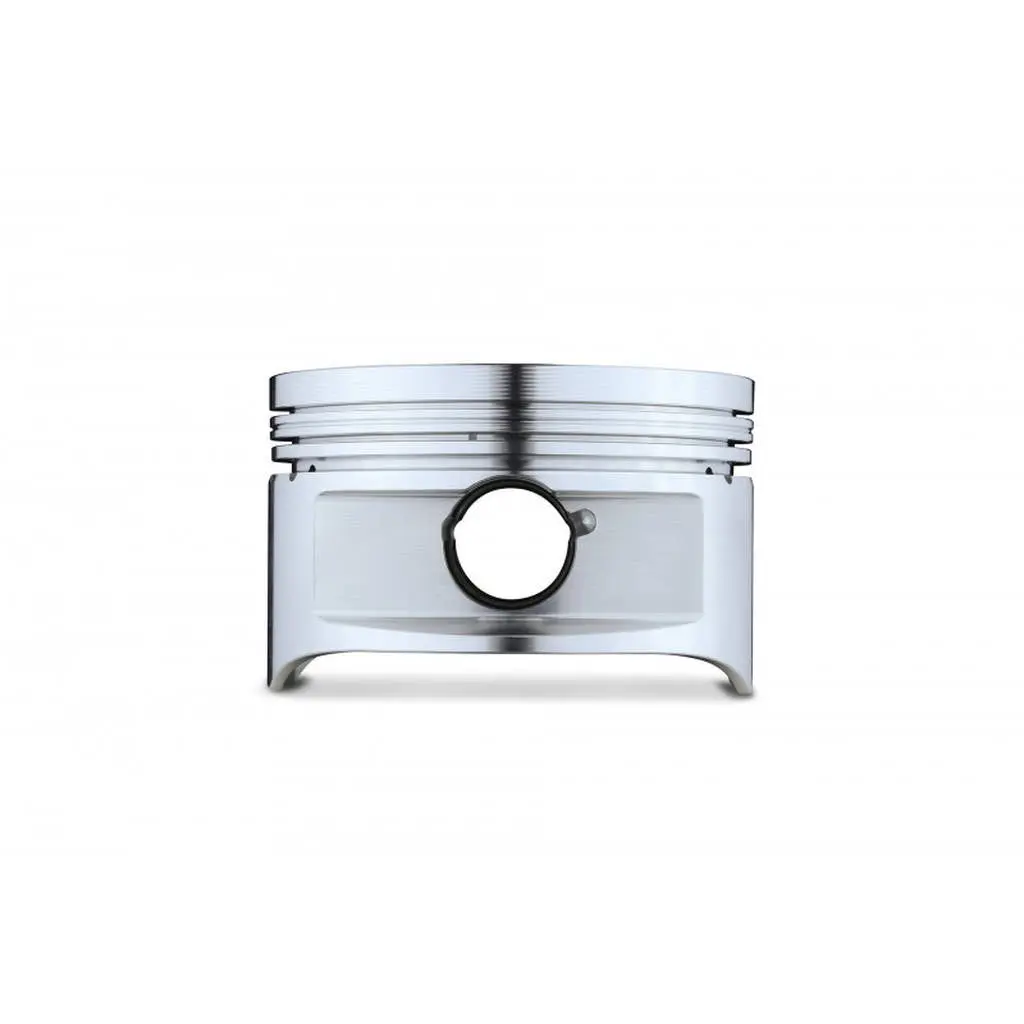

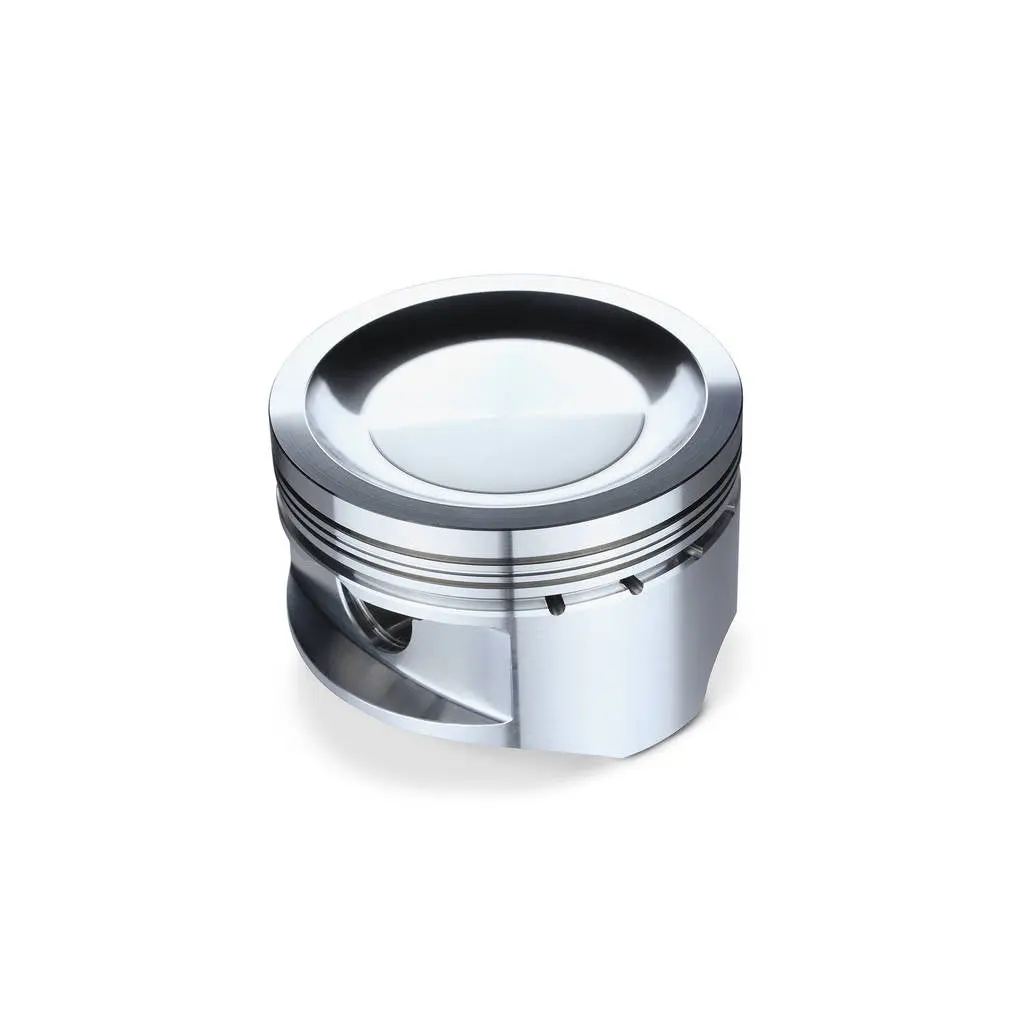

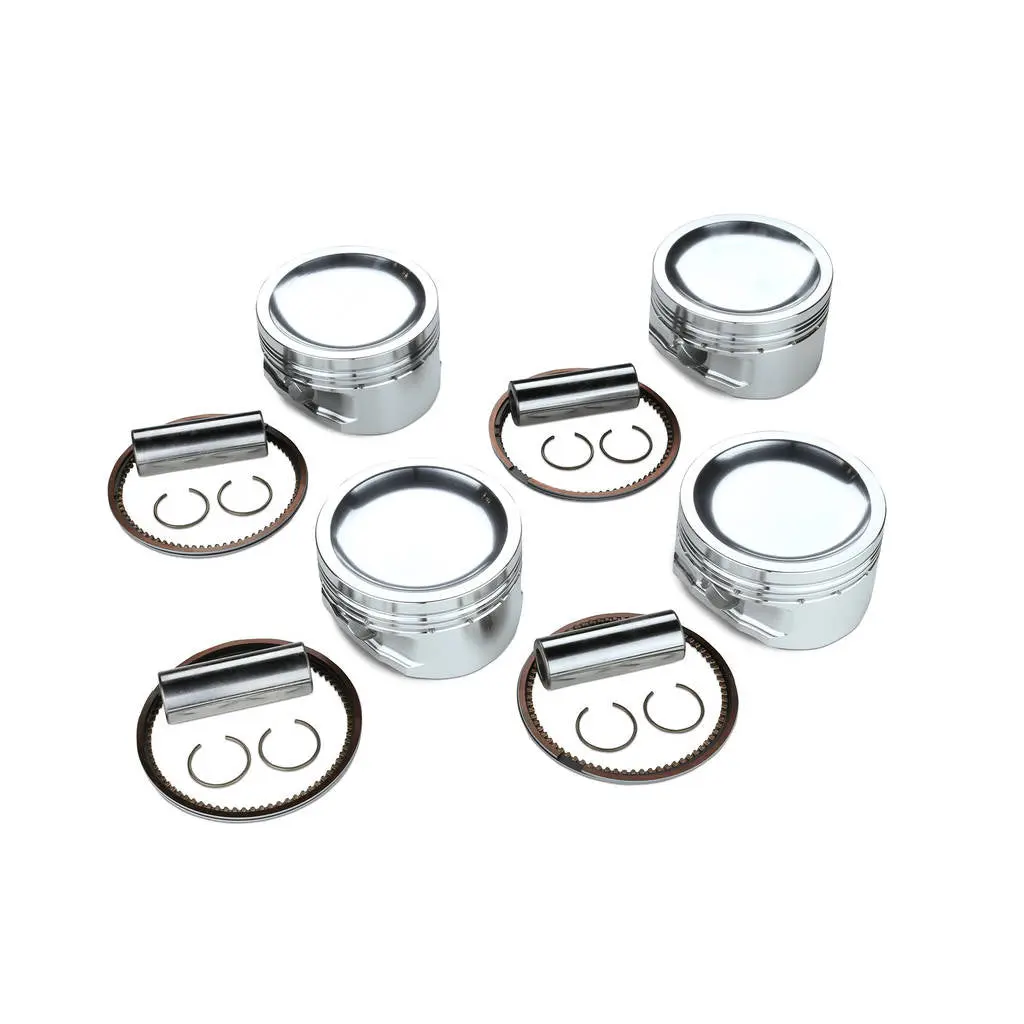

TOMEI TA202A-NS08C Forged Piston Kit 86.50 mm for SR20DET 2.2
SKU: TA202A-NS08C | Brand: Tomei
Approximate Rs 1,47,745.29 not incl. of customs and shipping.
Call or message us for the price and availability.
High-strength forging manufacturing method is adopted rather than the mainstream casting method used for commercial vehicles. Taking advantage of high temperature strength and high strength, weight reduction is achieved by making the walls thinner.
Application SR20DET Type TOMEI Bore (mm) 86.50 (OEM +0.5) Pin Diameter (mm) 22.0 Pin Length (mm) 60.0 Circlip Inner Diameter (mm) 22.0 Valve Recess WITHOUT Compression Height (mm) 29.50 (OEM -2.5) Piston Volume (cc) -18.0 Piston Weight (g) 311.2 Pin Weight (g) 121.5 Total Weight (g) 435.1 Top Ring (mm） 1.20 x 2.90 Second Ring (mm） 1.20 x 3.00 Oil Ring (mm） 2.50 x 2.60 Piston Material A2618 Compatibility
Sizes: L
Part numbers: TA202A-NS08C
Special order: imported to order. Contact us for price and availability.
