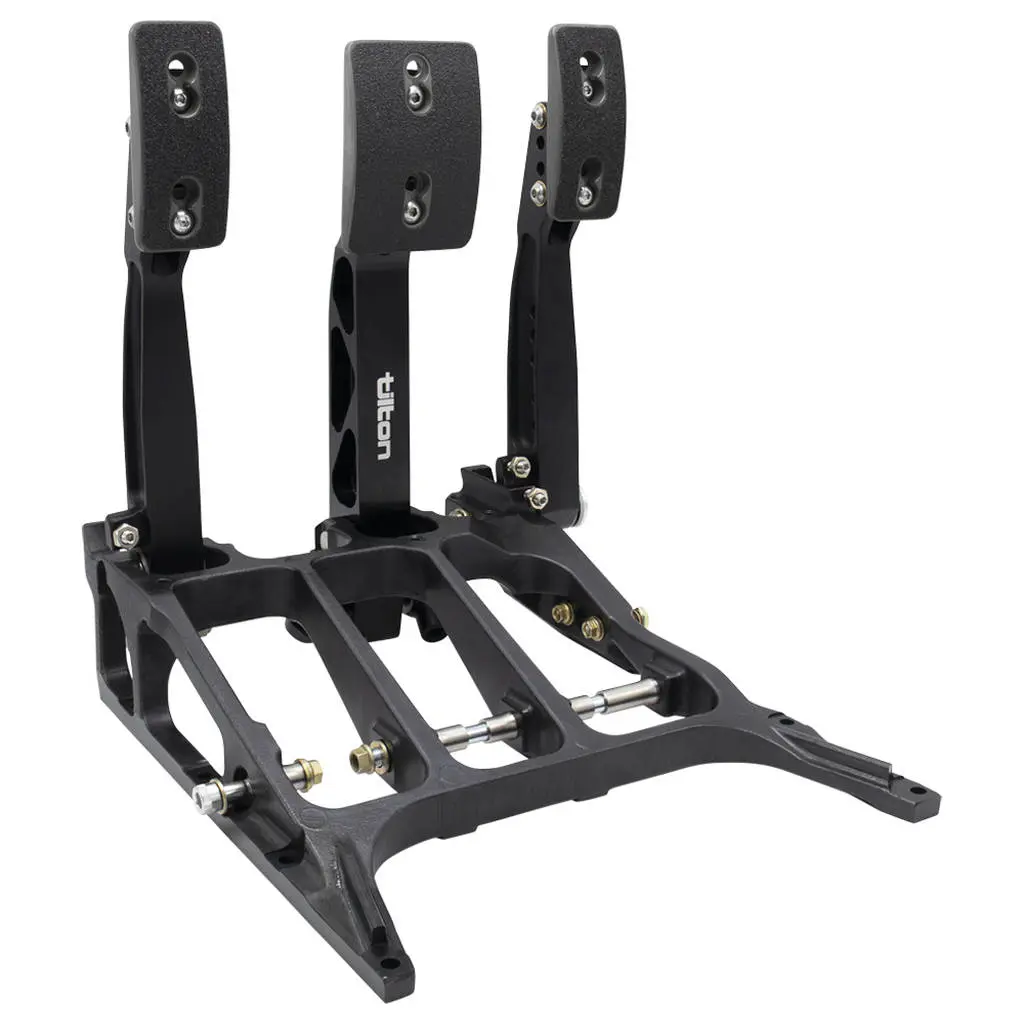

TILTON 72-856-S 850-Series 3-Pedal Underfoot Assembly (Floor Mount)
SKU: 72-856-S | Brand: Tilton
Approximate Rs 1,50,389.63 not incl. of customs and shipping.
Call or message us for the price and availability.
Description TILTON 72-856-S 850-Series 3-Pedal Underfoot Assembly (Floor Mount)
The TILTON 72-856-S 850-Series 3-Pedal Underfoot Assembly is a professional-grade floor-mounted pedal box engineered for motorsport and high-performance vehicle applications. Designed with lightweight aluminum construction and precision-machined components, the assembly provides exceptional pedal feel, durability, and adjustability for demanding racing environments.
The system features an ultra-efficient 7/16”-20 trunnion-type balance bar that minimizes brake bias migration under heavy braking. The billet aluminum brake pedal incorporates ball-bearing pivots for smooth operation, while the forged aluminum throttle and clutch pedals utilize oil-impregnated bronze bushings for long-term reliability. Adjustable pedal ratios and customizable foot pad positions allow precise tailoring to individual driver preferences.
- Floor-mounted 3-pedal assembly for motorsport applications
- 7/16”-20 trunnion-style balance bar minimizes brake bias migration
- Billet aluminum brake pedal with ball-bearing pivot
- Forged aluminum throttle and clutch pedals
- Oil-impregnated bronze bushings in throttle and clutch pivots
- Lightweight, high-strength aluminum frame construction
- Adjustable brake pedal ratio for customized pedal feel
- Adjustable foot pads for position and angle optimization
- Compatible with mechanical throttle linkage and Drive-by-Wire systems
- Designed for use with Tilton racing master cylinders
Specifications:
- Series: 850-Series
- Mounting Type: Floor mount
- Balance Bar Thread: 7/16”-20
- Brake Pedal Material: Billet aluminum
- Throttle & Clutch Pedal Material: Forged aluminum
- Frame Material: Aluminum
- Pedal Ratio Adjustment Range: 4.8:1 to 6.1:1
- Weight: 7.6 lbs
- Brake Master Cylinder Compatibility: Tilton 78-Series or 79-Series (sold separately)
- Clutch Master Cylinder Compatibility: Tilton 78-Series (sold separately)
- Throttle Linkage Compatibility: Mechanical linkage or Drive-by-Wire systems
- Important Note: Remote Brake Bias Adjuster required for 800/850-Series pedal assemblies
Part numbers: 72-856-S
Special order: imported to order. Contact us for price and availability.
