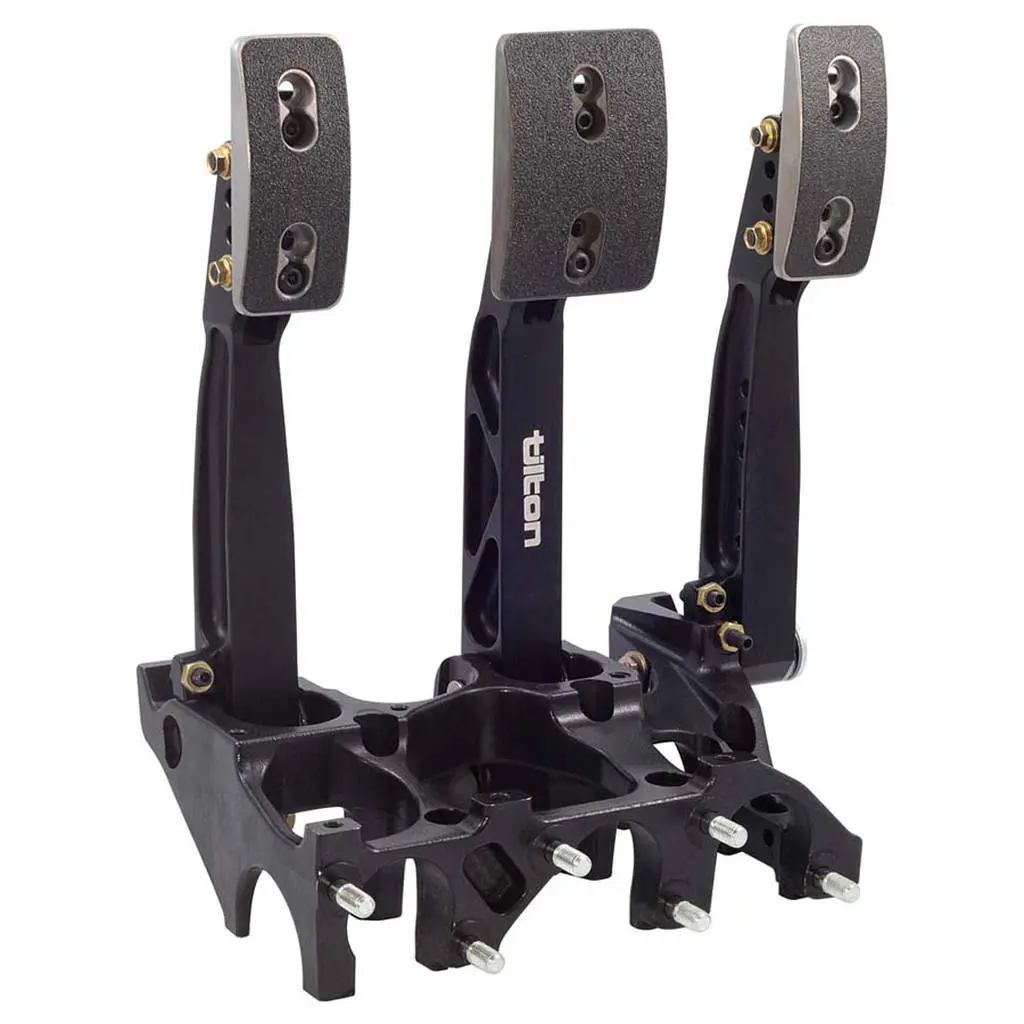

TILTON 72-616 600-Series 3-Pedal Underfoot Assembly (Floor Mount)

Description TILTON 72-616 600-Series 3-Pedal Underfoot Assembly (Floor Mount)

The TILTON 72-616 600-Series 3-pedal underfoot assembly is designed for motorsport applications where cockpit space optimization is essential. Unlike conventional forward-facing floor-mount configurations, this assembly employs a rear-facing master cylinder layout, enabling further forward pedal placement to accommodate a broader range of driver seating positions. Combined with over a hundred pedal pad configurations and an adjustable pedal ratio, the assembly offers extensive adaptability for various racing setups.

Constructed with forged aluminum pedals and a rigid aluminum frame, the assembly ensures high strength-to-weight performance for demanding racing environments. A large 7/16”-20 balance bar minimizes flex and delivers precise pedal feedback, while low-friction oil-impregnated bushings maintain smooth, consistent operation. The system is compatible with Tilton 76-Series master cylinders and can integrate with custom false floors or heel rests. Optional Tilton throttle linkage kits are available for both mechanical and drive-by-wire throttle systems.

• Forged aluminum pedals engineered for high rigidity and reduced mass
• Rear-facing master cylinder design for extended driver seating range
• Large 7/16”-20 balance bar for reduced flex and consistent pedal feel
• Fully adjustable aluminum foot pads for height, width, and angle
• Adjustable pedal ratio from 5.4:1 to 6.9:1 for braking system fine-tuning
• Low-friction oil-impregnated bushings for smooth operation
• Compatible with Tilton 76-Series master cylinders
• Total weight: 6.4 lbs (excluding master cylinders)

Part numbers: 72-616

Special order: imported to order. Contact us for price and availability.
