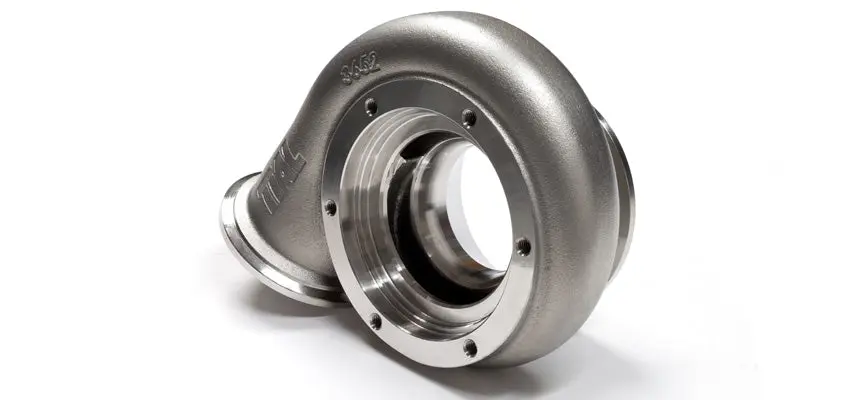

TIAL 004097 TIALVB2852 V-BAND HOUSING GT28 .52 A/R

Lightweight stainless steel turbine housings for the GT/X 28 series turbochargers, compatible with the 76 trim 53.9mm turbine wheel SPECIFICATIONSTypically lighter weight than a corresponding iron housing of the same A/RInvestment cast stainless steel for a beautiful, smooth interior and exteriorVband inlet and outlet gets rid of gaskets and bolts, no leaks and no broken boltsTwo A/R optionsOverall physical size is smaller than standard housing, allowing it to fit in tight engine baysBetter heat retention than cast ironInconel bolts provided for vibration and stretching resistance in extreme applicationsLocking tabs included for high vibration applicationsPivoting of the turbo 360* possible CONFIGURATIONGT28 Housing OptionFlange Materials 304L StainlessPipe Size Inlet Flange: 2.125″ OD, Outlet Flange: 3.00″ ODFlanges/Clamps Included? NoHousing Weight 4.5lbs (largest A/R)Turbine Wheel 53.9mm 76 Trim NCLUDED WITH EVERY HOUSINGTurbine HousingThree Moon TabsSix Inconel BoltsThree Locking Tabs TIAL V-BAND CLAMP AND FLANGE SYSTEMaltTiAL V-Band flanges are manufactured in houseGTVFL3.0 – Inlet FlangeVC300 – Inlet ClampVBF300M – Outlet FlangeVC355 – Outlet Clamp

Part numbers: 004097

Special order: imported to order. Contact us for price and availability.
