Description SYVECS SYV-GDI4 Stand Alone Engine ECU S-GDI4 The SDI ECU is a solution for integrated direct injection engine management.

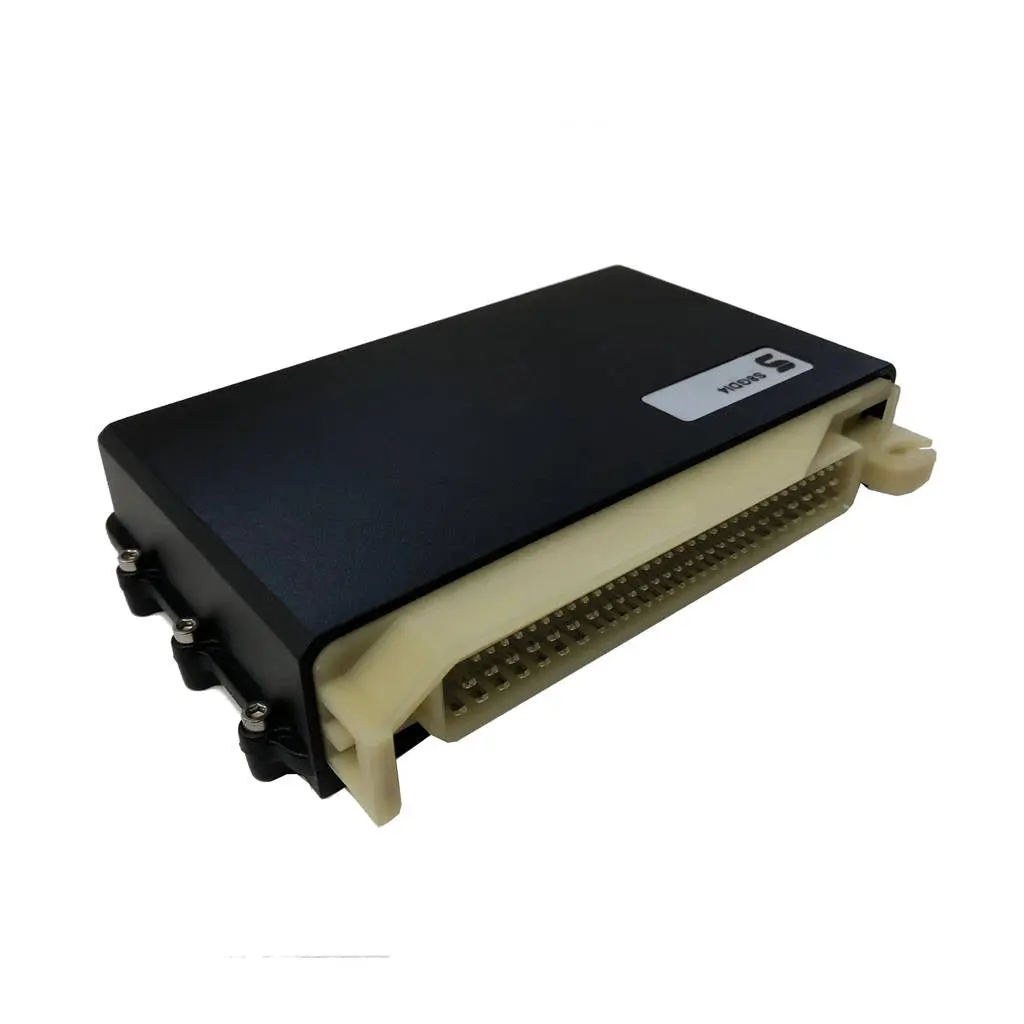

SYVECS SYV-GDI4 Stand Alone Engine ECU S-GDI4
SKU: SYV-GDI4 | Brand: Syvecs
Approximate Rs 6,36,043.72 not incl. of customs and shipping.
Call or message us for the price and availability.
Description SYVECS SYV-GDI4 Stand Alone Engine ECU S-GDI4
The SDI ECU is a solution for integrated direct injection engine management. Based on the S8 architecture, the SDI has fewer inputs and outputs for GDI applications that do not require the complexity of the full S8.
The SDI directly controls and drives gasoline direct injectors from Ford, GM, and Bosch, including Bosch Motorsport types, without an external driver box. It supports 4-cylinder engines as standard. Additional cylinders can be supported using the S12 ECU and GDI boxes.
- Sealed billet aluminium housing
- 1 waterproof 88-pin connector
- Up to 64 MB internal logging memory and onboard laptop logging
Specifications:
- General-Purpose Analogue Inputs: 24
- 5V/Bipolar, Sensor/Sync/Speed Inputs: 16, with programmable trigger voltages
- 5V Sensor Inputs: 4
- Thermistor Sensor Inputs: 4
- NTK Lambda Inputs: 2
- K-Type Thermocouple Circuits: 2
- Knock Inputs: 2
- High/Low-Side Driver Outputs: 24
- Half-Bridge Outputs: 4, maximum 10 amps
- Low-Side Injection/PWM Outputs: 12, maximum 10 amps
- TTL/IGBT Ignition Drivers: 4
- GDI Drivers: 4
- CAN 2.0B: 2
- RS232 Output: 1
- Ethernet: 100 MHz full-duplex connection for PC programming and data download
- Input Voltage Range: 6 to 20 V with reverse-polarity protection
- Regulated Sensor Supply Outputs: 3 protected 5V outputs
- Operating Temperature: -25 to +95°C
- Dimensions: 178 x 122 x 36 mm
Part numbers: SYV-GDI4
Special order: imported to order. Contact us for price and availability.
