SACHS PERFORMANCE 003072000307 Clutch Housing RCS

Description SACHS PERFORMANCE 003072000307 Clutch Housing RCS 140

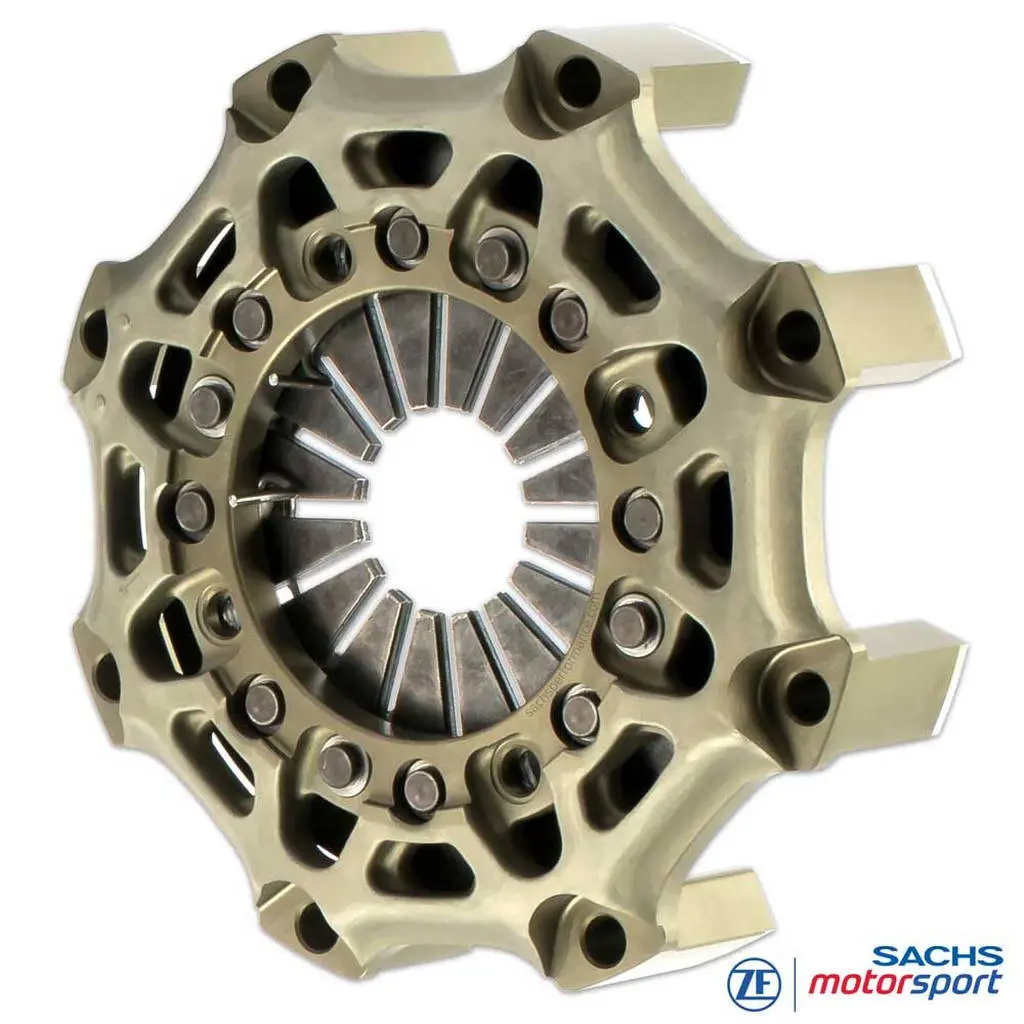

Compact, Lightweight, and precise, the SACHS RCS 140 clutch cover housing is the central support structure of ZF Motorsport’s modular Racing Clutch System. It was developed for high-revving, weight-optimised racing clutches with a very short design.

The RCS 140 version is suitable for demanding racing applications where low moment of inertia, fast shifts, high temperature stability, and precise component guidance are decisive.

Note: The clutch housing must be combined with approved RCS 140 pressure plates, intermediate plates, and clutch discs specific to the series. Selection depends on the number of plates, release diameter, Friction material, and application profile.

• Compact 140 mm design with low moment of inertia for particularly Lightweight, free-revving racing clutches, spontaneous response, and fast gear changes
• Available for 1-, 2-, 3-, and 4-plate clutches with 38 mm and 49 mm release diameters
• Designed for sintered metallic and carbon Friction materials in professional motorsport
• High housing stiffness and motorsport-specific geometry support precise modulation, accurate component guidance, efficient heat dissipation, and repeatable Torque transmission

Specifications:

• RCS 140-H-D-F-38
• For flywheel type: flat
• Release diameter: 38 mm
• Release force: 4200 N

Sizes: 140

Part numbers: 003072000307, PERFORMANCE

Special order: imported to order. Contact us for price and availability.
