With the Tire Pressure Monitoring System you can display tire pressure while driving, record and evaluate it.
RN VISION P-TPMS-KIT-4-SENSOR-TRACKDAY TPMS kit – Trackday
SKU: P-TPMS-KIT-4-SENSOR-TRACKDAY | Brand: RN Vision
Approximate Rs 79,928.05 not incl. of customs and shipping.
Call or message us for the price and availability.
With the Tire Pressure Monitoring System you can display tire pressure while driving, record and evaluate it. The system is compatible with the RN ONE MKII and the RN PRO. The tire pressure data is displayed separately for each tire while driving. The data is also recorded by the Race Navigator and is available for evaluation in the RN Analyzer after the ride. Adjustable optimum ranges and individually adjustable warning thresholds for each tire ensure that you are notified of potential problems during the drive, e.g. overheating or a potential puncture. A continuous control in the pit while driving is also possible in combination with our RN LIVE Telemetry.

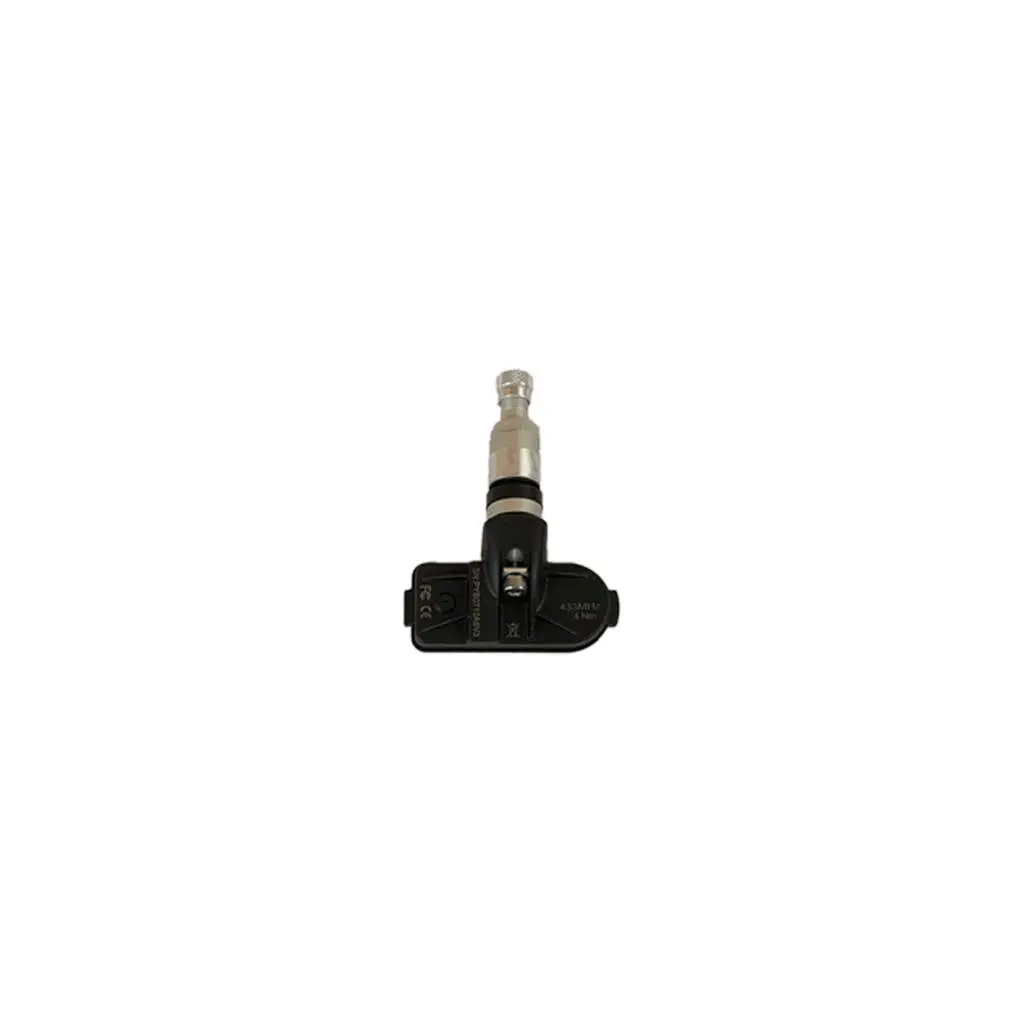

The TPMS sensors replace the original valve of the tire. A handy receiver unit reads the sensor data wirelessly and forwards them to the Race Navigator via the CAN connection.
The Trackday TPMS kit contains components required for use in street-legal vehicles. You can order the kit with either 4, 8 or 12 sensors. This makes it possible to equip multiple tire sets with the sensors at the same time. Additional sensors can also be ordered.
Please note: For the connection to the RN ONE MKII / RN PRO the RN CAN cable 12V is required. This cable is not included in the kit and must be ordered separately.
If you plan to use the TPMS kit in a racing car, we recommend the TPMS Kit for Racing.
Installation advice: The installation on the tire may only be carried out by qualified specialists. The diameter for the valve is 10.3mm.

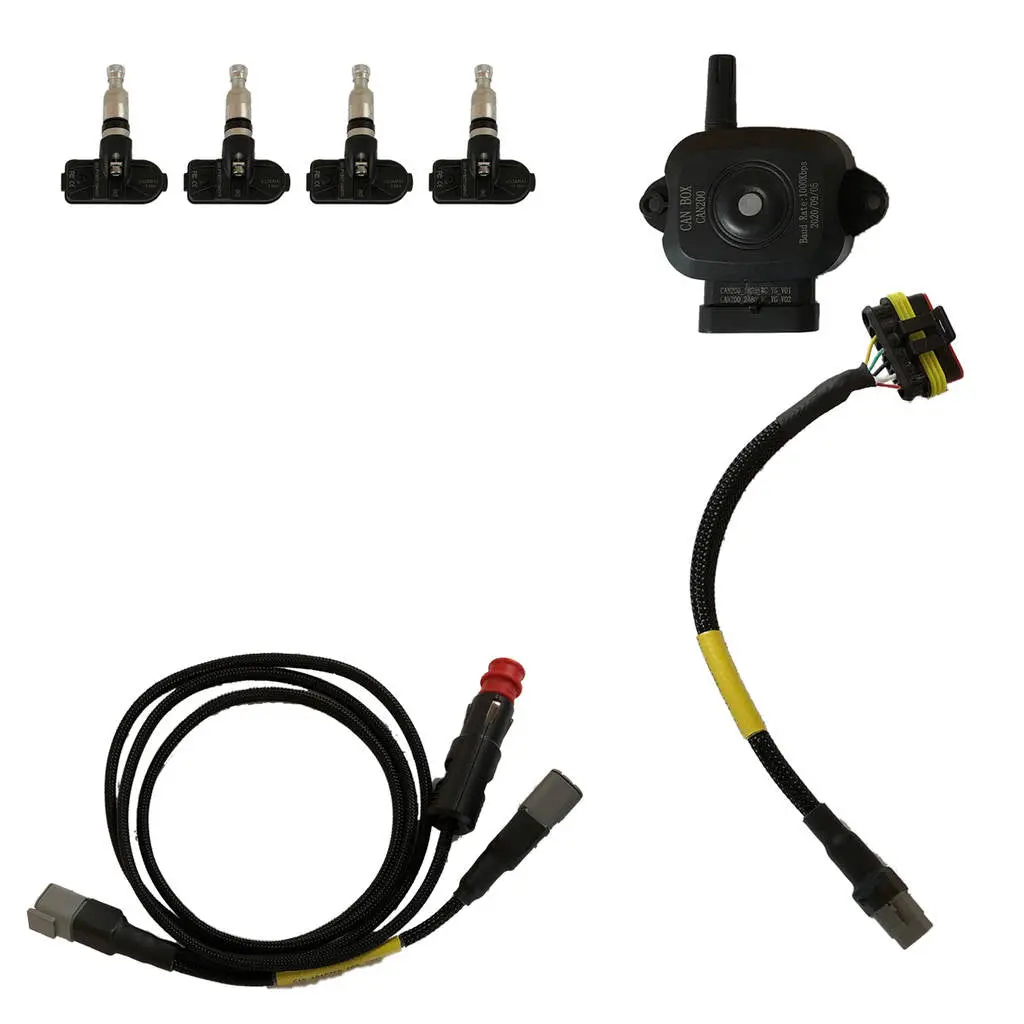

Kit consisting of:

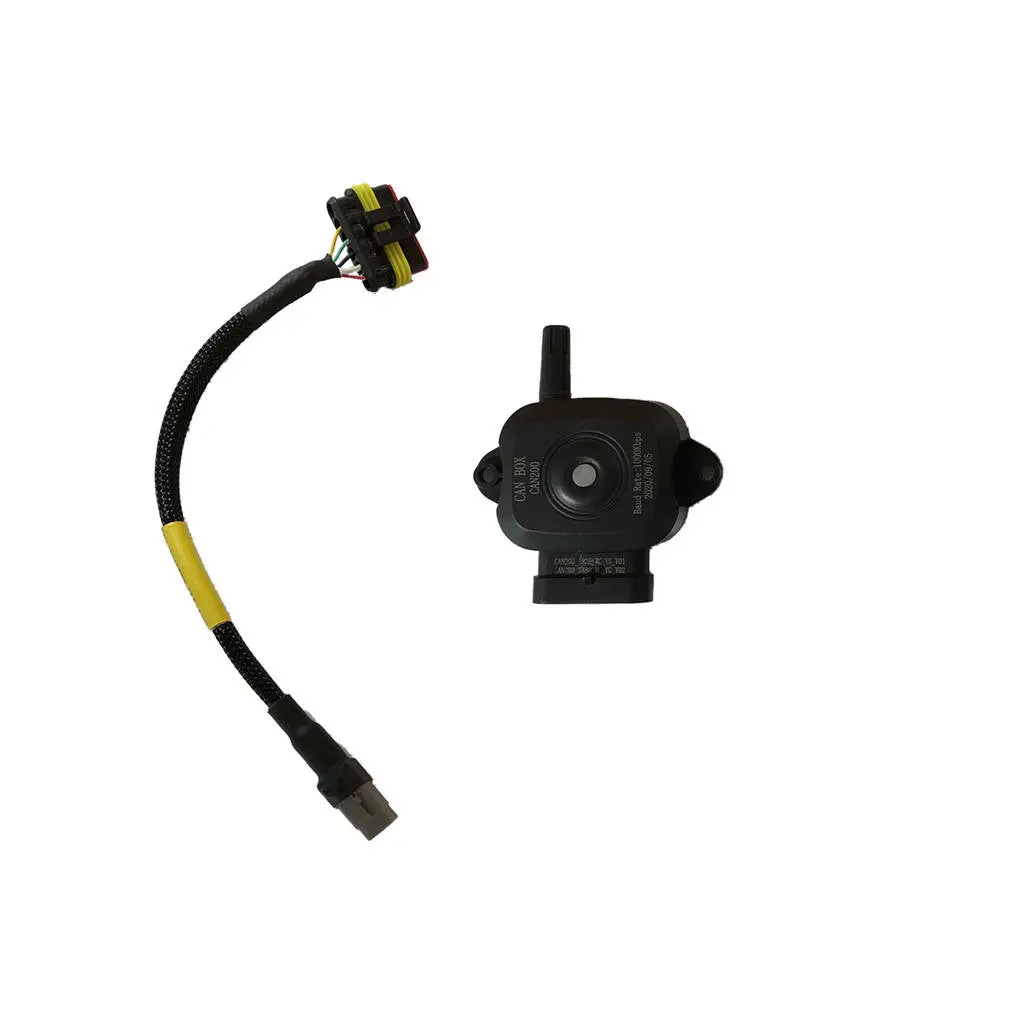

– 1x TPMS Receiver
– 1x TPMS Loom Trackday
– 1x connection cable between Receiver and Loom
– 4x TPMS Sensors (sensors should be installed by qualified personell only)
For displaying and recording the data, an RN ONE MKII or RN PRO are required.
Please note: For the connection to the RN ONE MKII / RN PRO the RN CAN cable 12V is required. This cable is not included in the kit and must be ordered separately.
Part numbers: P-TPMS-KIT-4-SENSOR-TRACKDAY, VISION
Special order: imported to order. Contact us for price and availability.
