Description RACELOGIC RLVBVDHD2H-2 VBOX Video HD2 with HDMI Output – 2 Camera System The RACELOGIC VBOX Video HD2 is a dual-camera video and data logging system designed to support lap-time analysis a
RACELOGIC RLVBVDHD2H-2 VBOX Video HD2 with HDMI Output – 2 Camera System
SKU: RLVBVDHD2H-2 | Brand: Racelogic
Approximate Rs 5,31,496.93 not incl. of customs and shipping.
Call or message us for the price and availability.
Description RACELOGIC RLVBVDHD2H-2 VBOX Video HD2 with HDMI Output – 2 Camera System
The RACELOGIC VBOX Video HD2 is a dual-camera video and data logging system designed to support lap-time analysis and improve driving consistency. It records high-definition footage together with GNSS and vehicle CAN data, providing synchronized information for motorsport review, driver development, and race-team analysis.
The system records 1080p video at 30 frames per second through two camera inputs, allowing a main camera view with picture-in-picture footage. Integrated HDMI output enables real-time video and audio transmission to compatible monitors, recorders, or streaming devices. Camera positioning can be adjusted through the Android or iOS application, which displays the live camera feed on a mobile device.
- Dual-camera recording with main-view and picture-in-picture display
- Wide-angle lenses capture track activity in high-definition video
- Records directly to an SD card or USB flash drive
- Logs up to 80 channels of CAN data from compatible dashboards and ECUs
- Supports vehicle data including throttle angle, RPM, and brake pressure
- HDMI output provides real-time video and audio for monitoring, recording, or live streaming
- Android and iOS application supports precise camera alignment using a live camera feed
- Customizable high-definition graphics overlays for dashboard and gauge layouts
- Integrated GNSS receiver automatically recognizes racetracks and configures track maps and lap timing
- Automatic recording, pre-record buffer, and internal power backup help prevent data loss
Specifications:
- Video Resolution: 1080p
- Frame Rate: 30 fps
- Camera Inputs: 2
- CAN Data Logging Capacity: Up to 80 channels
- GNSS Receiver Frequency: 25 Hz
- Video Storage: SD card or USB flash drive
- Video Output: HDMI

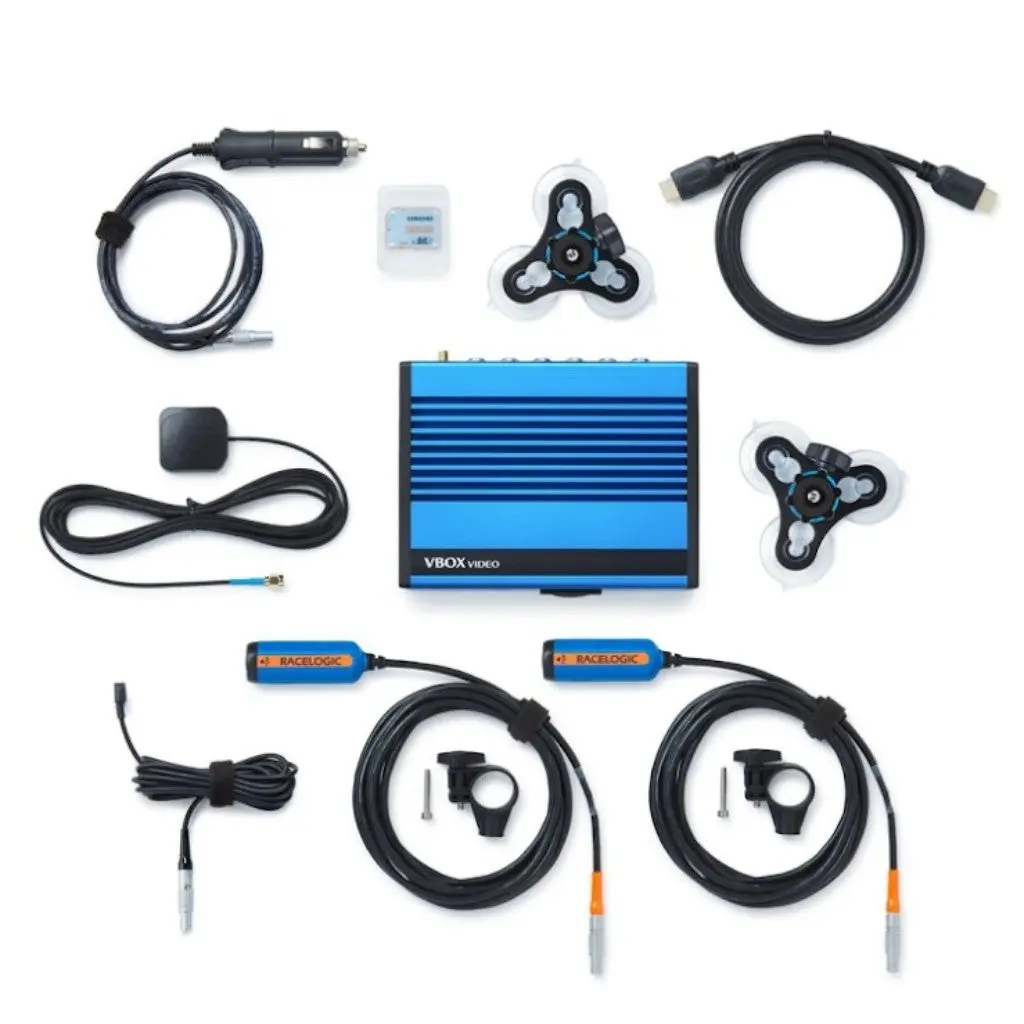

Package Contents:
- VBOX Video HD2 Data Logger
- Cameras × 2
- Microphone
- Windscreen Suction Mounts × 2
- Unterminated In-Car Power Cable
- GNSS Antenna
- 32 GB SD Card
- HDMI Cable
Part numbers: RLVBVDHD2H-2
Special order: imported to order. Contact us for price and availability.
