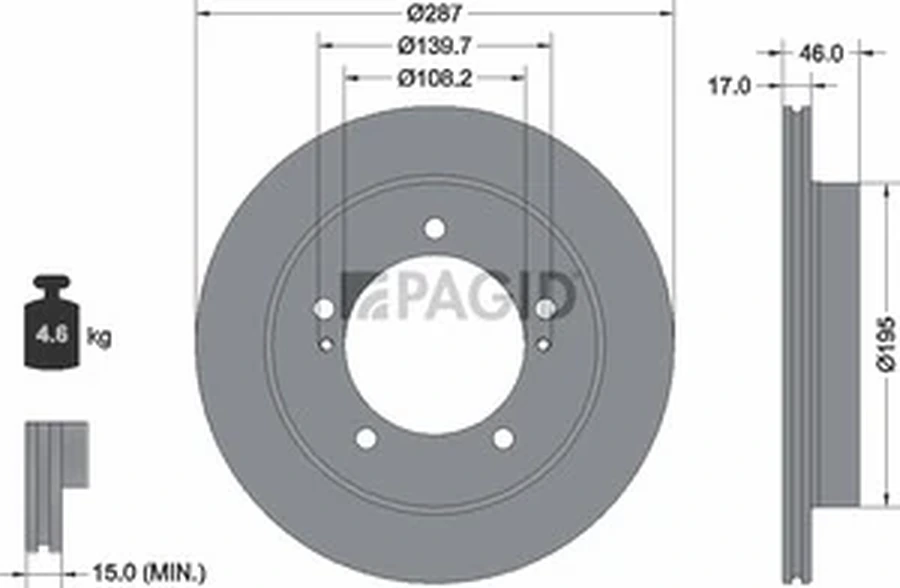

Pagid OEM front brake disc. Part number 56141NC. Brembo equivalent 09.C220.10.
Fits these vehicles
- Jimny NEWAll years
| Brand | Pagid |
|---|---|
| Range | OEM quality |
| Axle | Front |
| Brake Disc Type | vented |
| Inner Diameter (mm) | 183 |
| Outer Diameter (mm) | 287 |
| Brake Disc Thickness (mm) | 17 |
| Minimum thickness (mm) | 15 |
| Height (mm) | 46 |
| Hole arrangement / number | 05/07 |
| Bolt hole circle (mm) | 139.7 |
| Centering Diameter (mm) | 108.2 |
| Wheel Bolt Bore Diameter (mm) | 12.7 |
| Supplied without | without wheel bearing without wheel hub without wheel studs |
| Surface | Coated |
| Weight (kg) | 4.6 |
| EAN | 4007590380969 |
| Packaging size (L x W x H, cm) | 30.3 x 30.3 x 9 |
OE numbers are the original equipment references this part replaces. The Brembo number shows the Brembo part it is equivalent to. Always confirm fitment for your vehicle before ordering.
Equivalent part numbers from other brands
Brembo09.C220.10
Original equipment (OE) numbers
SUZUKI5521176J10, 5521176J10000, 5521176J11, 5521176J11000
Numbers are given for reference so you can check this part against the one you have or against another brand. Always confirm fitment for your vehicle before ordering.
