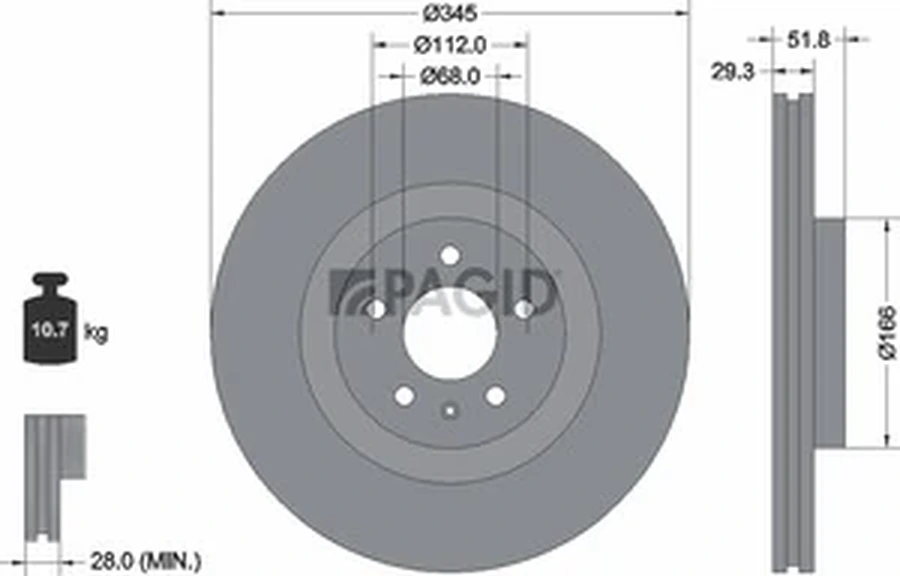

Pagid OEM front brake disc. Part number 54602NHC. Brembo equivalent 09.B039.11.
Fits these vehicles
- Q5 3.0 TDI 345mm2010 to 2013
- A7 3.0 TDIAll years
- A6 3.0 TDI Quattro 345MM2011 onwards
| Brand | Pagid |
|---|---|
| Range | OEM quality |
| Axle | Front |
| Brake Disc Type | vented |
| Inner Diameter (mm) | 153.9 |
| Outer Diameter (mm) | 345 |
| Brake Disc Thickness (mm) | 29.3 |
| Minimum thickness (mm) | 28 |
| Height (mm) | 51.8 |
| Hole arrangement / number | 05/06 |
| Bolt hole circle (mm) | 112 |
| Centering Diameter (mm) | 68 |
| Wheel Bolt Bore Diameter (mm) | 15.3 |
| Supplied without | without wheel bearing without wheel hub without wheel studs |
| Surface | Coated |
| Processing | High-carbon |
| Weight (kg) | 10.7 |
| EAN | 4007590379086 4007590399831 |
| Packaging size (L x W x H, cm) | 35.8 x 35.8 x 8.5 |
OE numbers are the original equipment references this part replaces. The Brembo number shows the Brembo part it is equivalent to. Always confirm fitment for your vehicle before ordering.
Equivalent part numbers from other brands
Brembo09.B039.11
Original equipment (OE) numbers
AUDI8K0615301B, 8K0615301E, 8K0615301K, 8K0615301M, 8K0615301Q
SEAT8K0615301B, 8K0615301E, 8K0615301K, 8K0615301M, 8K0615301Q
SKODA8K0615301B, 8K0615301E, 8K0615301K, 8K0615301M, 8K0615301Q
VW8K0615301B, 8K0615301E, 8K0615301K, 8K0615301M, 8K0615301Q
Numbers are given for reference so you can check this part against the one you have or against another brand. Always confirm fitment for your vehicle before ordering.
