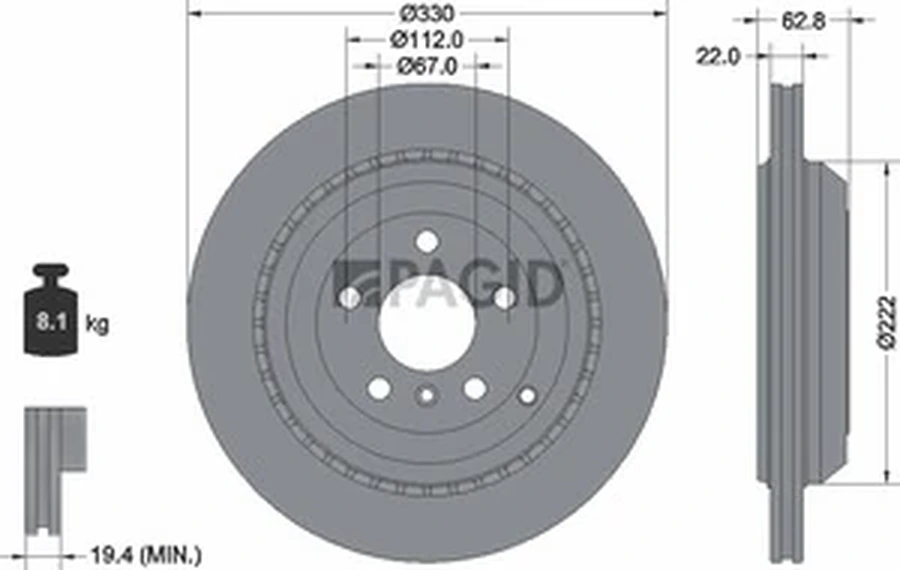

Pagid OEM rear brake disc. Part number 54509NC. Brembo equivalent 09.R124.21.
Fits these vehicles
- R Class W164All years
- GL Class W164All years
| Brand | Pagid |
|---|---|
| Range | OEM quality |
| Axle | Rear |
| Brake Disc Type | Externally Vented |
| Inner Diameter (mm) | 210 |
| Outer Diameter (mm) | 330 |
| Brake Disc Thickness (mm) | 22 |
| Minimum thickness (mm) | 19.4 |
| Height (mm) | 62.8 |
| Hole arrangement / number | 05/07 |
| Bolt hole circle (mm) | 112 |
| Centering Diameter (mm) | 67 |
| Wheel Bolt Bore Diameter (mm) | 15.3 |
| Supplied without | without wheel bearing without wheel hub without wheel studs |
| Surface | Coated |
| Weight (kg) | 8.1 |
| EAN | 4007590354229 4007590394683 |
| Packaging size (L x W x H, cm) | 34.3 x 34.3 x 11.5 |
OE numbers are the original equipment references this part replaces. The Brembo number shows the Brembo part it is equivalent to. Always confirm fitment for your vehicle before ordering.
Equivalent part numbers from other brands
Brembo09.R124.21
Original equipment (OE) numbers
MERCEDES-BENZ1644230612, 1644231112, 1644231312, A1644230612, A1644231112, A1644231312
Numbers are given for reference so you can check this part against the one you have or against another brand. Always confirm fitment for your vehicle before ordering.
