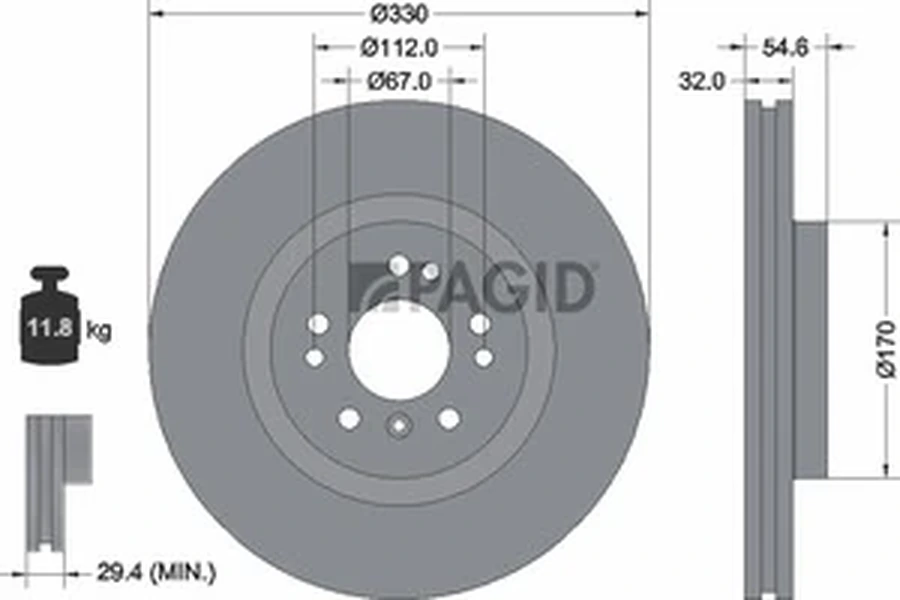

Pagid OEM front brake disc. Part number 54506NHC. Brembo equivalent 09.R104.11.
Fits these vehicles
- M Class W164All years
| Brand | Pagid |
|---|---|
| Range | OEM quality |
| Axle | Front |
| Brake Disc Type | vented |
| Inner Diameter (mm) | 156.4 |
| Outer Diameter (mm) | 330 |
| Brake Disc Thickness (mm) | 32 |
| Minimum thickness (mm) | 29.4 |
| Height (mm) | 54.6 |
| Hole arrangement / number | 05/09 |
| Bolt hole circle (mm) | 112 |
| Centering Diameter (mm) | 67 |
| Wheel Bolt Bore Diameter (mm) | 15.3 |
| Supplied without | without wheel bearing without wheel hub without wheel studs |
| Surface | Coated |
| Processing | High-carbon |
| Weight (kg) | 11.8 |
| EAN | 4007590354199 4007590394690 |
| Packaging size (L x W x H, cm) | 34.3 x 34.3 x 7.5 |
OE numbers are the original equipment references this part replaces. The Brembo number shows the Brembo part it is equivalent to. Always confirm fitment for your vehicle before ordering.
Equivalent part numbers from other brands
Brembo09.R104.11
Original equipment (OE) numbers
MERCEDES-BENZ1644210412, 1644211312, A1644210412, A1644211312
Numbers are given for reference so you can check this part against the one you have or against another brand. Always confirm fitment for your vehicle before ordering.
