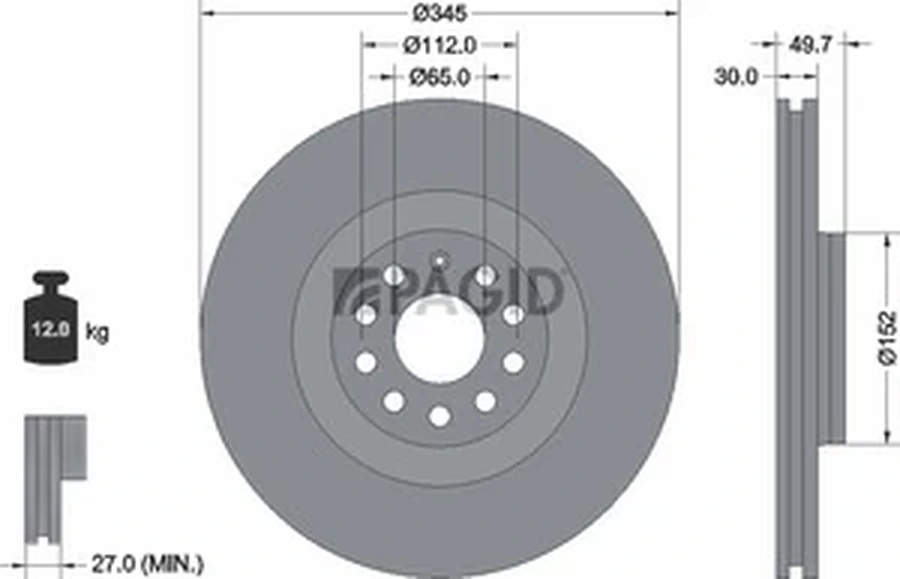

Pagid OEM front brake disc. Part number 54206NHC. Brembo equivalent 09.C892.11.
Fits these vehicles
- Superb 3T4 V62008 to 2015
| Brand | Pagid |
|---|---|
| Range | OEM quality |
| Axle | Front |
| Brake Disc Type | vented |
| Inner Diameter (mm) | 140.3 |
| Outer Diameter (mm) | 345 |
| Brake Disc Thickness (mm) | 30 |
| Minimum thickness (mm) | 27 |
| Height (mm) | 49.7 |
| Hole arrangement / number | 05/10 |
| Bolt hole circle (mm) | 112 |
| Centering Diameter (mm) | 65 |
| Wheel Bolt Bore Diameter (mm) | 15.3 |
| Supplied without | without wheel bearing without wheel hub without wheel studs |
| Surface | Coated |
| Processing | High-carbon |
| Weight (kg) | 12 |
| EAN | 4007590378614 4007590392771 |
| Packaging size (L x W x H, cm) | 35.8 x 35.8 x 8.5 |
OE numbers are the original equipment references this part replaces. The Brembo number shows the Brembo part it is equivalent to. Always confirm fitment for your vehicle before ordering.
Equivalent part numbers from other brands
Brembo09.C892.11
Original equipment (OE) numbers
AUDI1K0615301AB, 1K0615301AR, 1K0615301M
SEAT1K0615301AB, 1K0615301AR, 1K0615301M
SKODA1K0615301AB, 1K0615301AR, 1K0615301M
VW1K0615301AB, 1K0615301AR, 1K0615301M
Numbers are given for reference so you can check this part against the one you have or against another brand. Always confirm fitment for your vehicle before ordering.
