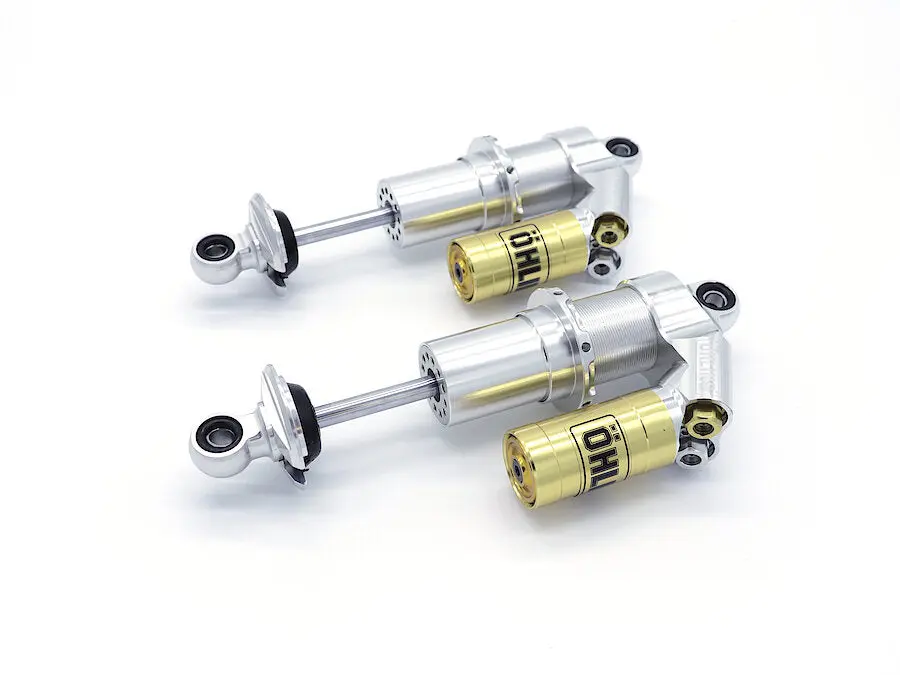

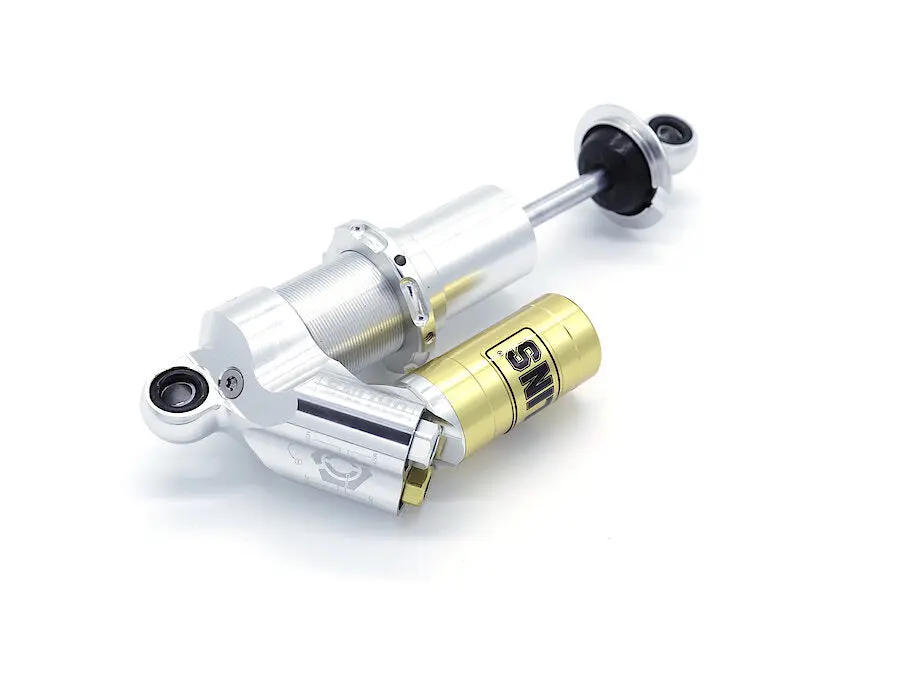

OHLINS GTTX25 FORMULA STUDENT Damper TTX 25 MkII
SKU: GTTX25 | Brand: Öhlins
Approximate Rs 1,19,747.16 not incl. of customs and shipping.
Call or message us for the price and availability.
Öhlins understands the importance of relationships from beginning to end, from racers in training to experienced veterans. It’s for this reason that we developed the TTX 25 MkII FSAE – a shock absorber specifically for Formula SAE/Formula student racing.
The TTX 25 MkII FSAE uses our well-proven twin tube technology, in a small package. The 4-way externally adjustable damper is completely serviceable and offers the possibility for setting changes. With a wide range of springs together with dynamometer plots, CAD models, and other technical information, the TTX25 FSAE provides the perfect package for Formula Student racing teams.
Technical Specifications
- Overall length: 200 mm (center to center of spherical bearings, fully extended)
- Stroke: 57 mm
- Weight: 394 g (without spring)
Spherical Bearing dimensions
- Inner diameter: 8 mm
- Ball width: 8 mm
- Outer diameter: 15 mm
Available Spring Rates
- 150 lb/in
- 175 lb/in
- 200 lb/in
- 225 lb/in
- 250 lb/in
- 300 lb/in
- 350 lb/in
- 400 lb/in
- 450 lb/in
- 500 lb/in
- 550 lb/in
- 600 lb/in
- 650 lb/in
Fits the following vehicles
-
Universal Formula Student TTX 25
Workshop Manual Öhlins Automotive TTX25 MkII FSAE (English) (5.491,51 KB)
Cutaway Öhlins Automotive TTX 25 MkII FSAE (English) (7.586,55 KB)
Schematic Öhlins Automotive TTX 25 MkII FSAE 2014 (English) (910,44 KB)
Sizes: 200/57
Part numbers: GTTX25
Special order: imported to order. Contact us for price and availability.
