MISHIMOTO MMINT-CTR-17KSLWRD HONDA Civic Type R Performance Intercooler Kit, 2017+

Description MISHIMOTO MMINT-CTR-17KSLWRD HONDA Civic Type R Performance Intercooler Kit, 2017+

Honda engineered the 2017-2021 Civic Type R to be among the fastest front-wheel drive production cars in the world. However, as a blend of track performer and commuter, some compromises were made, including the stock intercooling system. Under intense driving or high temperatures, the factory tube-and-fin intercooler can become heat-soaked, reducing performance.

The Mishimoto 2017-2021 Honda Civic Type R Performance Intercooler Kit addresses these issues by significantly increasing the core size to more than double the stock dimensions. The 4.7-inch thick core provides a 169% increase in overall volume and a 189% increase in external fin surface area for improved heat rejection. The kit features a bar-and-plate core construction for better flow and heat transfer, and replaces the plastic end tanks with cast aluminum designs for more effective airflow management.

Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).

• Significantly increases intercooler core size and volume
• Bar-and-plate core construction for improved flow and heat transfer
• Upgraded aluminum and silicone piping to enhance airflow and durability
• Available in multiple color options for intercooler and piping

Specifications:

• Engine Codes: K20C1
• Chassis Codes: FK8
• Inlet (in): 2.5
• Outlet (in): 2.5

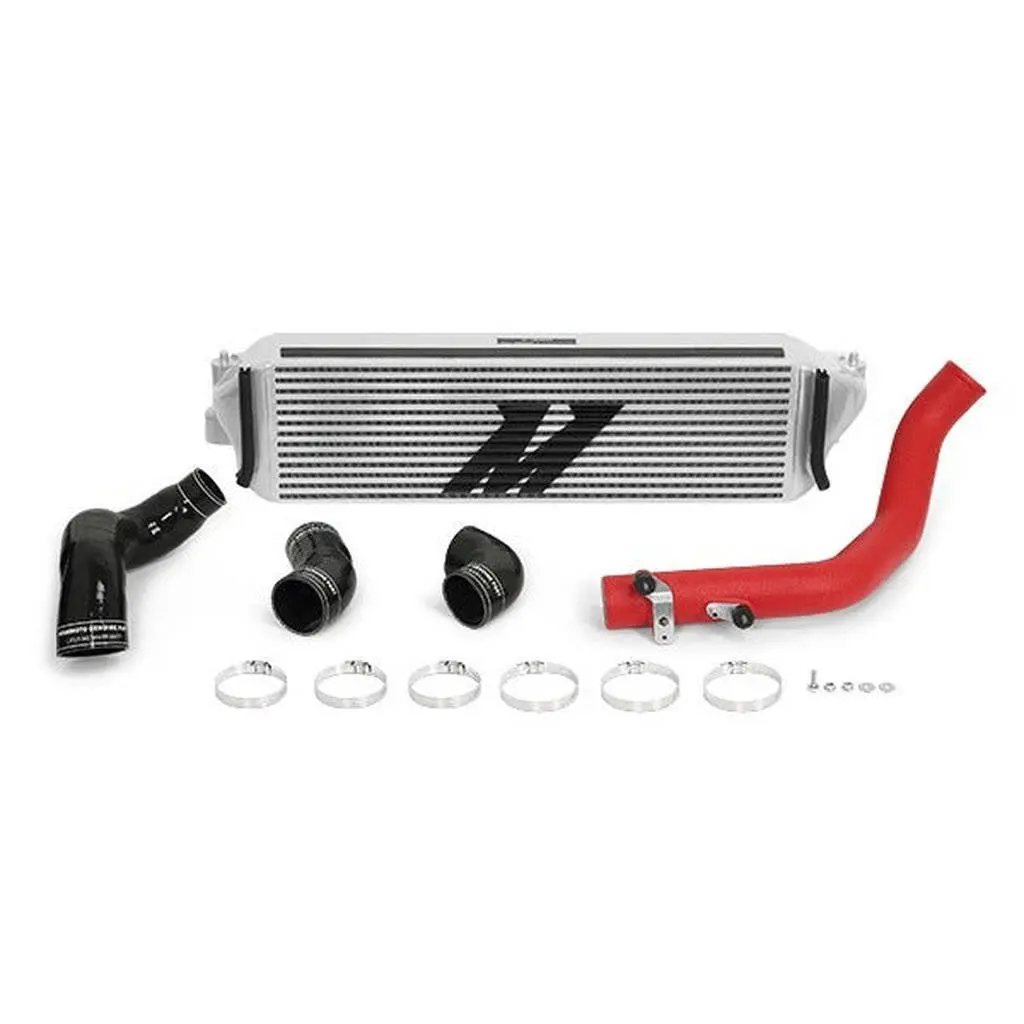

Kit comes with::

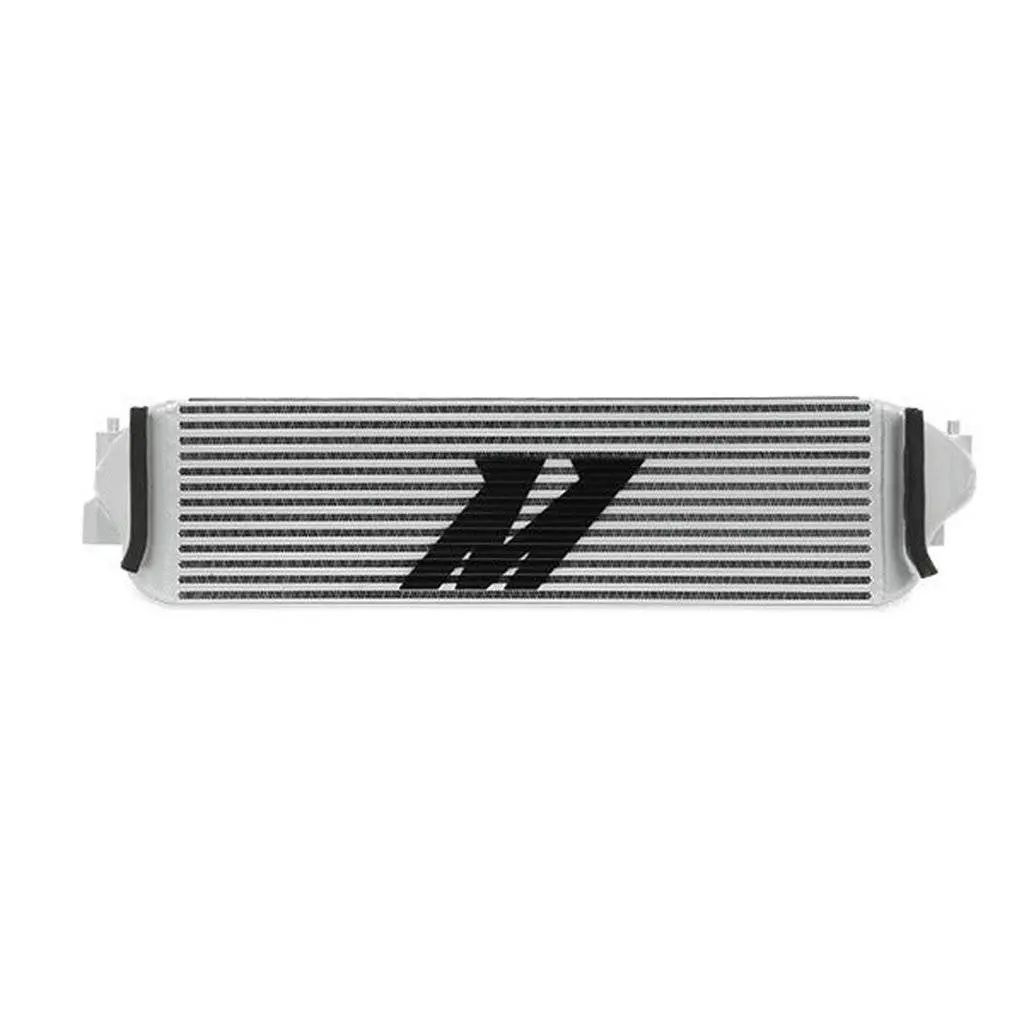

• Intercooler

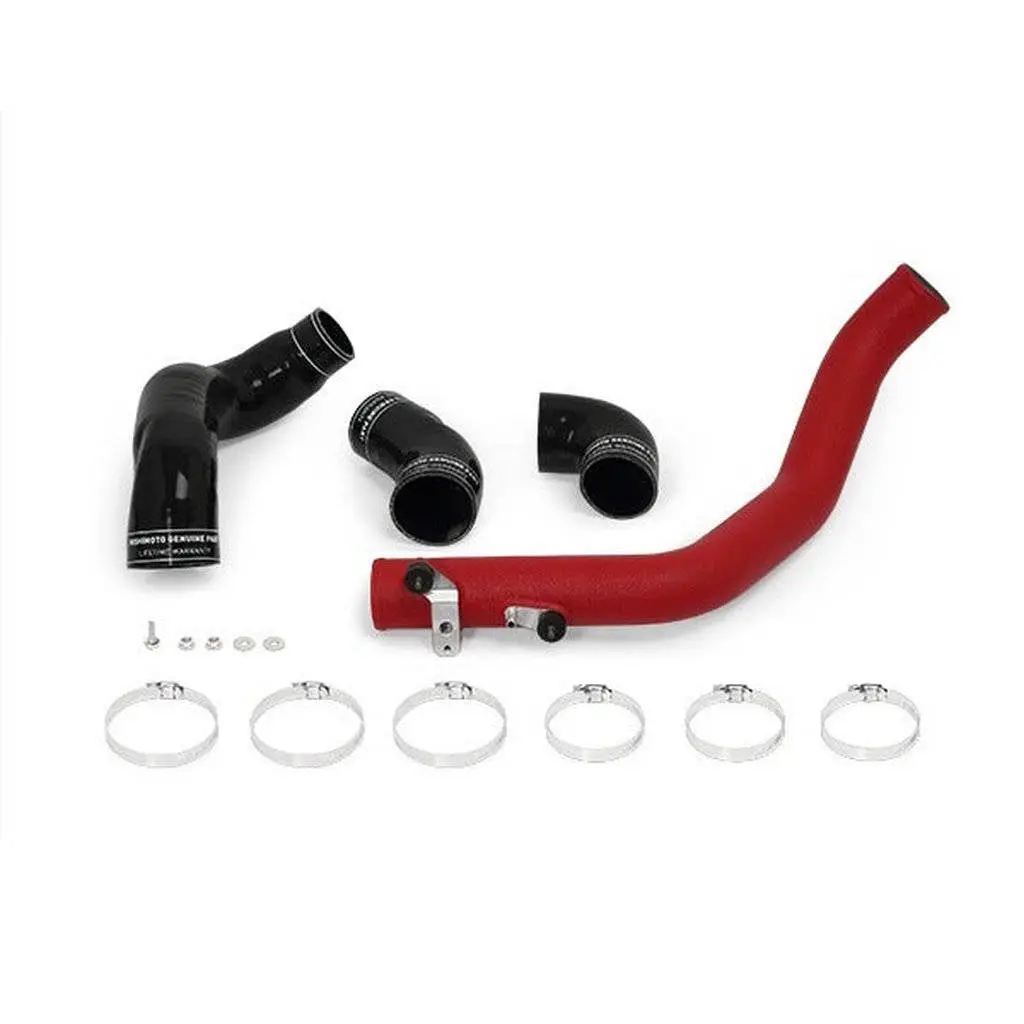

• Mandrel-Bent Aluminum Cold-Side Pipe
• Silicone Hot-Side Pipe
• 2 Silicone Couplers
• 6 High-Torque Worm Gear Clamps
• CARB EO Sticker
• Mounting Hardware

Vehicle Compatibility:

• 2017-2021 Honda Civic Type R (K20C1, FK8)

Part numbers: MMINT-CTR-17KSLWRD, MMINT-CTR-17KBKWBK, MMINT-CTR-17KBKWRD, MMINT-CTR-17KSLWBK

Special order: imported to order. Contact us for price and availability.
