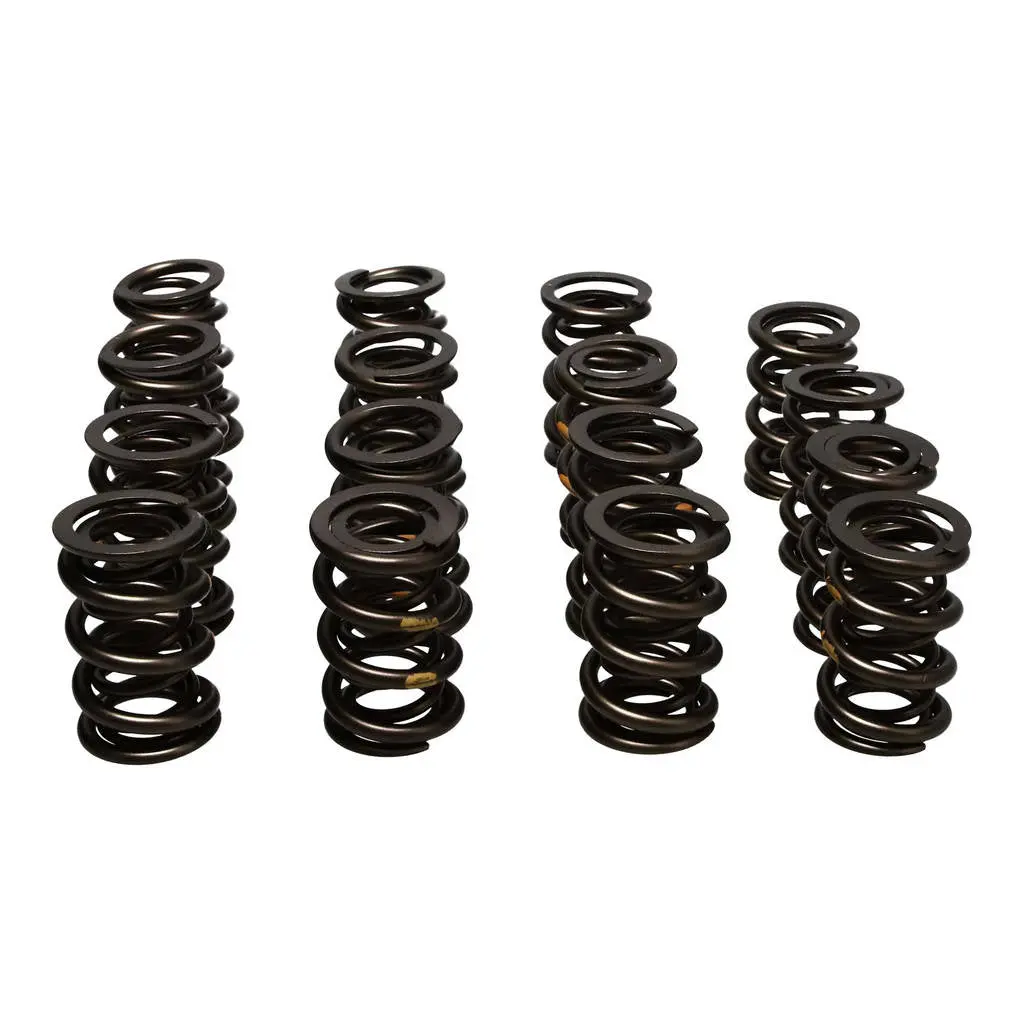

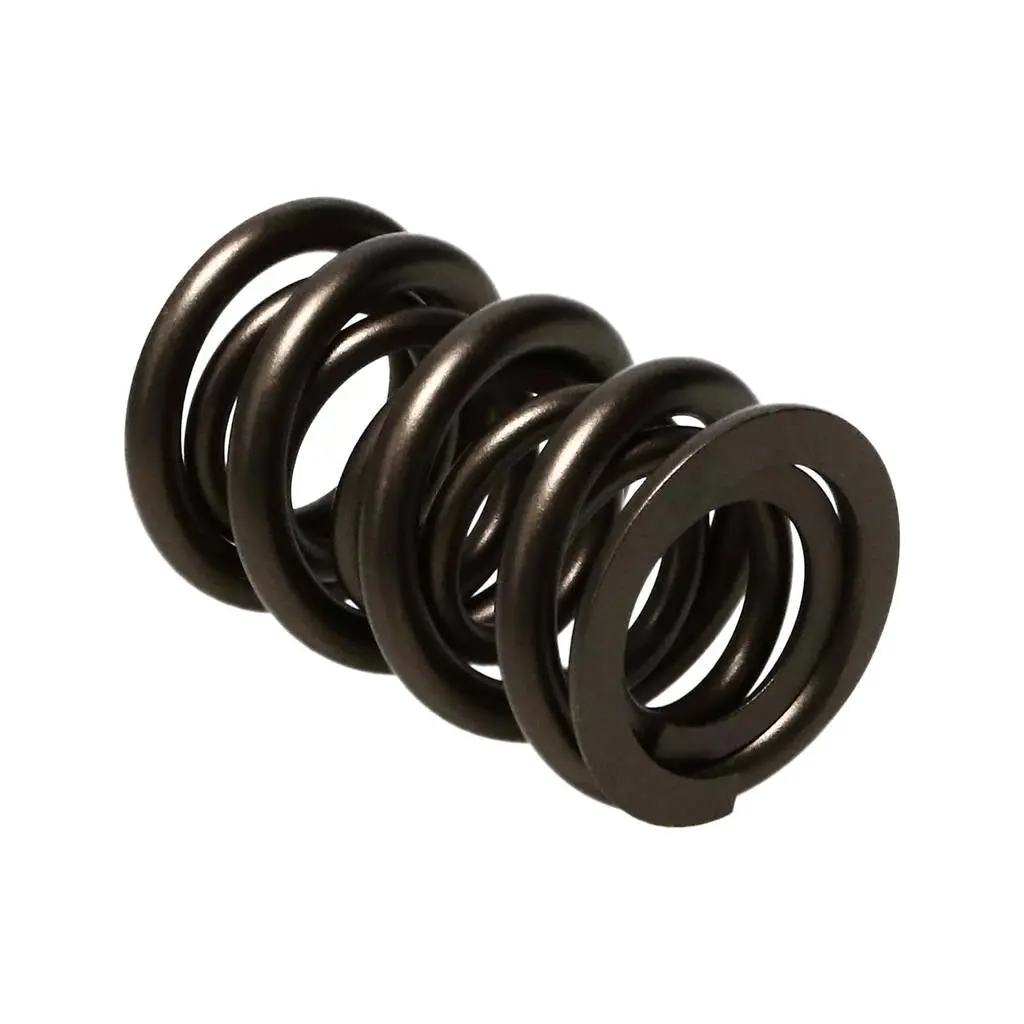

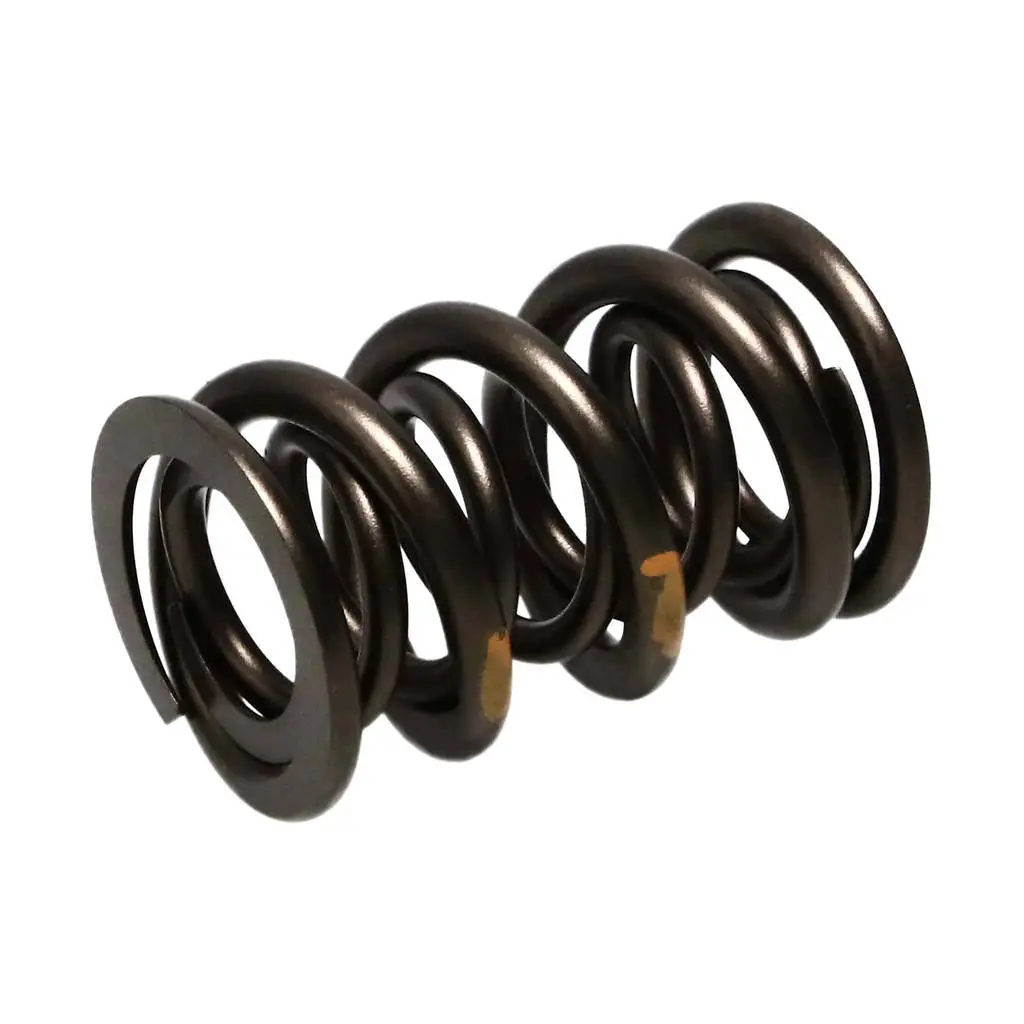

Description MANLEY 261454 Valve Spring Kit NexTex (10 Degree Titanium Retainers, .850″ Max Valve Lift) Manley Performance valve springs are engineered for maximum durability, stability, and precision
MANLEY 261454L Valve Spring Kit NexTex
SKU: 261454 | Brand: Manley
Approximate Rs 71,688.78 not incl. of customs and shipping.
Call or message us for the price and availability.
Description MANLEY 261454 Valve Spring Kit NexTex (10 Degree Titanium Retainers, .850″ Max Valve Lift)
Manley Performance valve springs are engineered for maximum durability, stability, and precision in high-performance and racing applications.
Crafted from premium chrome-silicon alloys, these springs provide exceptional fatigue resistance and high-tensile strength, ensuring consistent valve control at extreme RPMs.
- Dual and triple valve spring designs
- Designed to handle aggressive cam profiles
- Helps prevent valve float
- Suitable for naturally aspirated and forced induction applications
Specifications:
- Product Market: Domestic
- Emissions Code: 3
- Product Type: Engine Valve Spring & Retainer Kit
- Valve Spring Outer Diameter: 1.650 IN
- Valve Spring Inner Diameter: 0.855
- Valve Spring Quantity: 16
- Valve Spring Series: NexTek Series
- Valve Spring Material: Chrome Silicon
- Valve Spring Type: Double
- Valve Spring Coil Bind Height: 1.105 IN
- Valve Spring Rate: 635 PPI
- Installed Pressure and Height: 290 @ 2.000 PPI
- Open Pressure and Height: 825 @ 1.150 PPI
- Valve Lock Angle: 10 DEG
- First Step Diameter: 1.500 IN
- Second Step Diameter: 1.175 IN
- Third Step Diameter: 0.850 IN
Part numbers: 261454, 261454L, 261425, 261424, 261424L
Special order: imported to order. Contact us for price and availability.
