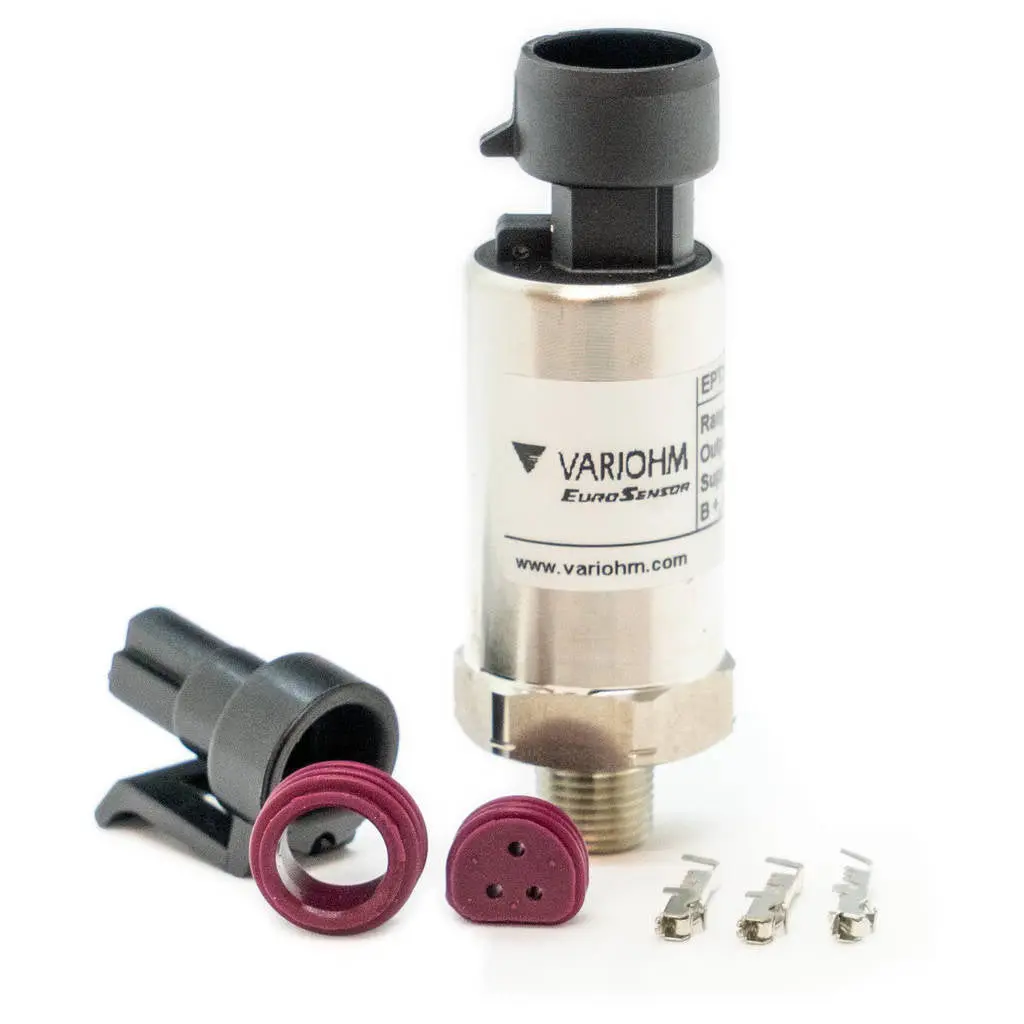

The 8 Bar MAP Variohm Eurosensor reads up to 7 Bar absolute pressure.

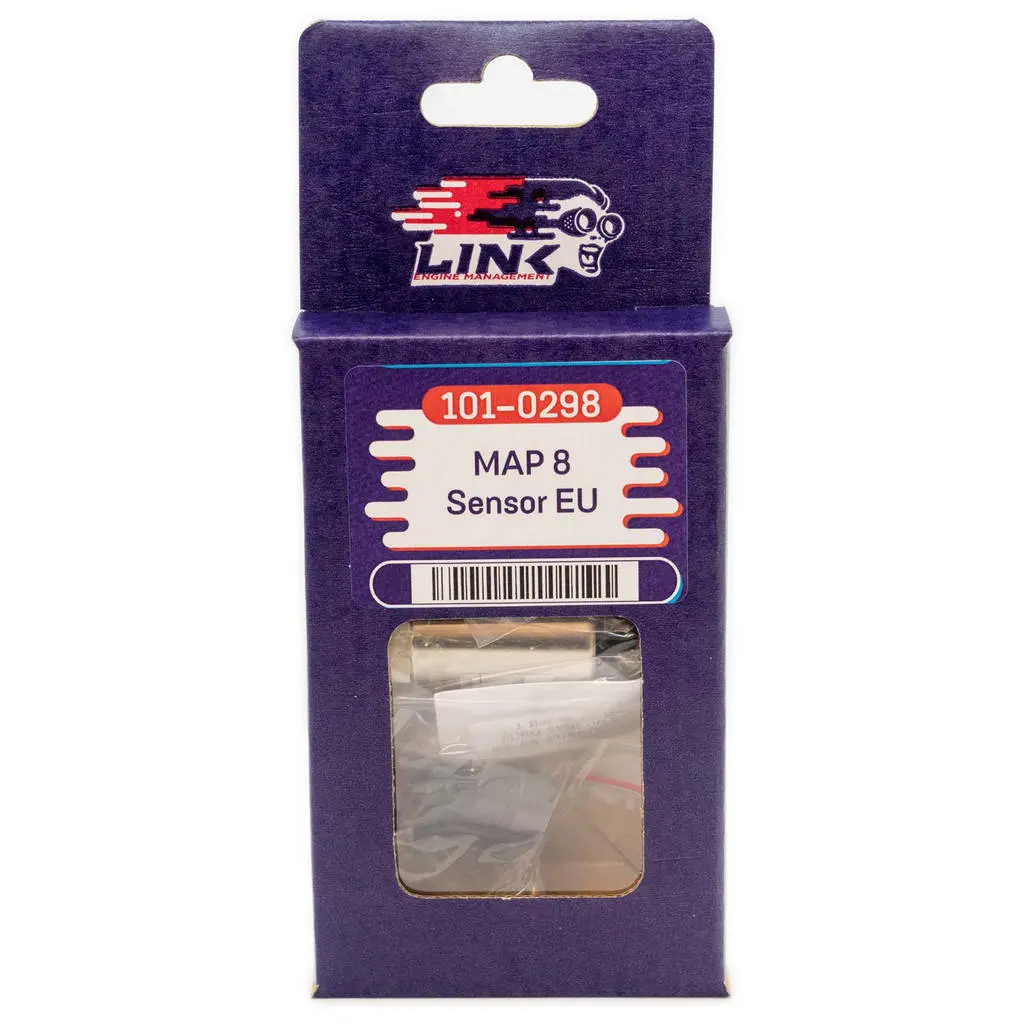

Link ECU 101-0298 MAP Sensor EU 8 bar
SKU: 101-0298 | Brand: Link
Approximate Rs 38,539.83 not incl. of customs and shipping.
Call or message us for the price and availability.
The 8 Bar MAP Variohm Eurosensor reads up to 7 Bar absolute pressure.
This means that it is suitable for turbo or supercharged applications running up to 7 Bar (or 101psi) of boost pressure.
- Includes Plug and Pins
- Push wire through connector; crimp on terminal; pull wire/terminal back into connector
- Using Link G4/G4+/G4X ECU’s select the MAP sensor type in PC Link as ‘Variohm 8 Bar’
Calibration – 0kpa = 0.5v, 800kpa = 4.5v
PIN A = 0v
PIN B = 5v
PIN C = Signal
Part numbers: 101-0298, ECU
Special order: imported to order. Contact us for price and availability.
