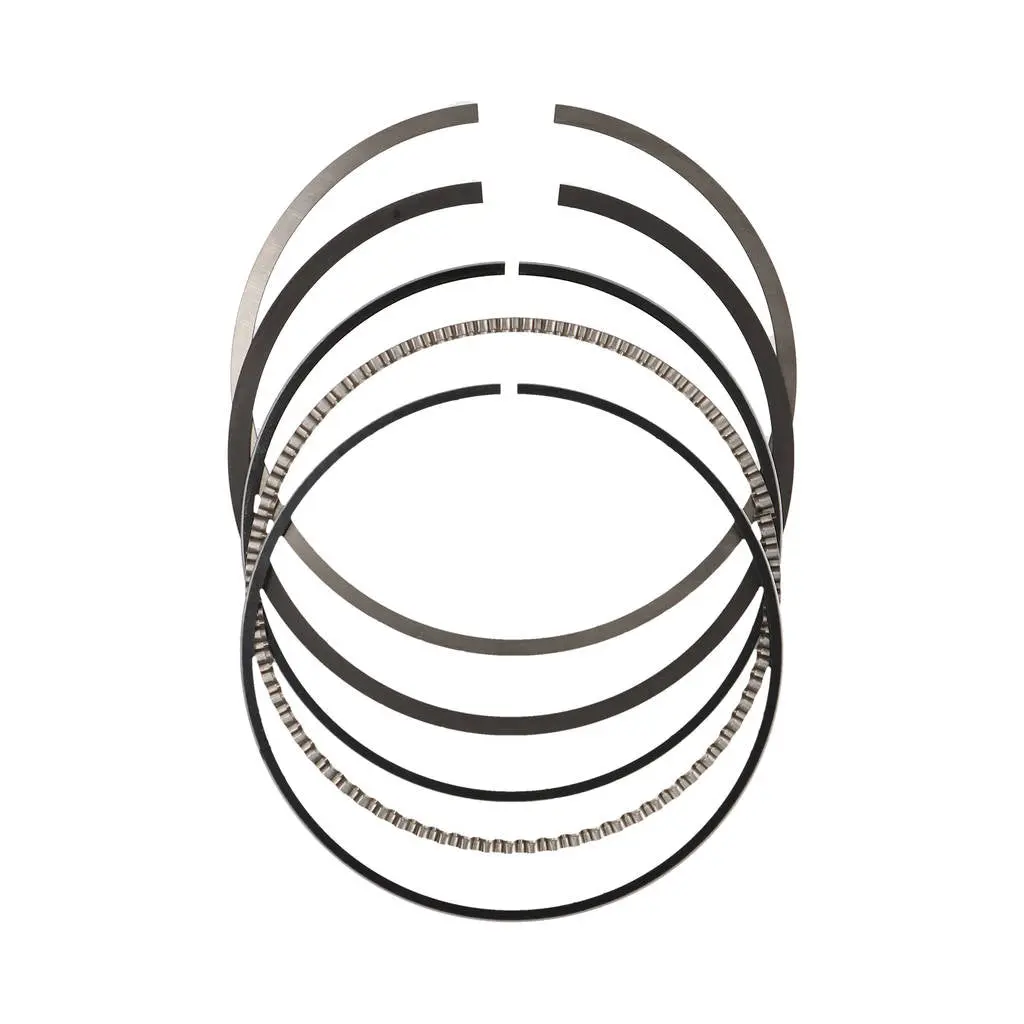

JE JG1004-3366 Piston Ring Set

Description JE ZV9900 Piston Ring Set (3.898 in. Bore, 0.0374 in. Top / 0.079 in. Oil, 1 Cyl.)

JE Piston Rings are designed to maximize Horsepower / HP through precision sealing of combustion pressure. They are available in a wide selection of sizes, materials, and thicknesses to suit various engines.

JE Pistons also offers custom Piston Ring services, including back cutting, Dykes cutting, lapping, grinding, and PVD coating. Used by top NHRA Pro Stock and NASCAR teams, these services are available to the public and provide increased durability, power through reduced friction, and improved Piston Ring sealing.

Specifications:

• Bore Diameter: 3.898 | 99.01 MM
• Ring Type: 2 Ring
• File Fit: Yes
• Top Ring Axial Height: 0.95 MM
• Top Ring Radial Width: 0.127 IN
• Top Compression Ring Thickness: 0.0374 IN
• Top Ring Facing Material: Nitride
• Top Ring Material: Carbon Steel
• Top Ring Shape: Flat Face, Neutral twist
• Oil Ring Axial Height: 2.00 MM
• Oil Ring Radial Width: 0.106 IN
• Oil Ring Thickness: 0.079 IN
• Third Ring Facing Material: Carbon Steel
• Third Ring Shape: Full Seal, Flex Vent
• Ring Set Thickness: 0.0374 in. Top x 0.079 in. Oil
• Product Type: Engine Piston Ring Set

Part numbers: ZV9900, JG1004-3366, JG2704-3366, JG1004-3386, JC2806-3760, JG1004-3346, JG1001-3405, JG1004-3268, JG4901-3917, XA6400, JG4901-3927, J750F1-4030-5

Special order: imported to order. Contact us for price and availability.
