HKS 23011-AN027 Short Block RB26 3.0L STEP3

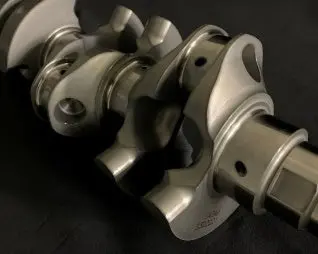

• The exclusive 3.0L crank is machined from high-end race grade nitride steel that is ion plasma treated to increase surface strength and toughness.

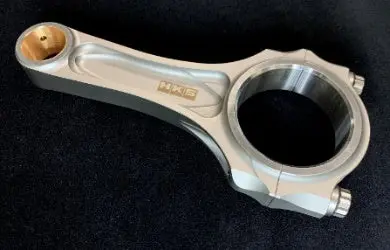

• A dedicated I-beam connecting rod has been adopted to increase buckling strength by 36%, in preparation for higher torque. The piston pin thickness has also been increased by 22mm.
• Various design changes were made to countermeasure against heat generated during higher output, such as, changes to valve guide and seat materials, adoption of sodium-filled EX valves, and pistons with cooling channels.
• Dedicated 36-tooth crank angle sensor and crank angle sensor for V-cam improve signal accuracy in the high-RPM range.

The two-piece piston has a higher pin position making it possible to reduce the compression height. The extremely lightweight 313 g pistons, which have cooling channels for oil cooling.

SHORT BLOCK RB26 3.0L STEP3

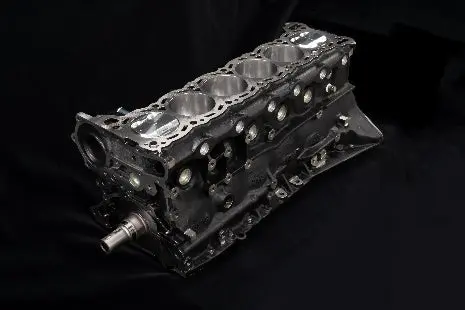

Block (24U)

Modifications

Block deck Resurfacing (Parallel to the crankshaft),

Waterhole Machining, Head bolt hole chamfering (to prevent cracking),

Deburring lower end of cylinder, Boring

Piston

HKS 2-piece machined

Piston Pin

Dia. 22 Enhanced product

Connecting Rod

HKS I-Beam Center Distance: 127.5 mm

Crankshaft

HKS Billet Full Counter

(Ion plasma treated nitriding steel)

Main Bearing

ACL

Conrod Bearing

ACL

HKS 3.0L

Stock

Bore

87.0 mm

86.0 mm

Stroke

84.0 mm

73.7 mm

Compression Ratio

(t=1.2)

8.7

–

Max RPM

9,000 rpm

7,600 rpm

Displacement

2,996 cc

2,568 cc

Part numbers: 23011-AN027

Special order: imported to order. Contact us for price and availability.
