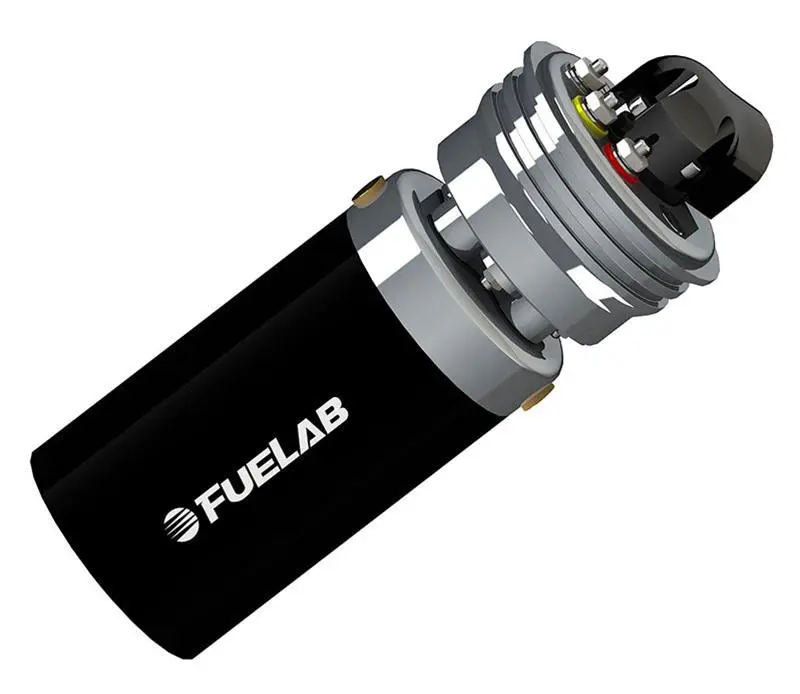

FUELAB 91901 In-Tank Power Module Fuel Pump EFI 1000 HP

Based on our popular 41401 series, but in a new configuration for in tank applications.

PUMP FEATURES:

• Based on our popular Prodigy Series, but in a new configuration for in-tank applications
• Compatible with gasoline, diesel, methanol and ethanol
• Jet pump compatibility for saddle tanks or internal pumps
• High efficiency sling vane positive displacement pump
• Special housing shape for extremely quiet operation and steady pressure
• Carbon 9-vane construction with pressure balanced rotor for high reliability

ELECTRONIC FEATURES:

• Internal Speed controller for variable flow operation
• 12 to 24 volt vehicle electrical system compatibility
• Accepts PWM input for speed control
• No expensive add-on voltage regulators or pump controllers required
• Continuous duty motor speed can be adjusted to meet fuel demand

MOTOR FEATURES:

• Lightweight super efficient DC brushless motor reduces current draw
• Low mass rotor for high speed reaction to changes in speed and flow
• Powerful high flux density neodymium rare earth magnets
• No motor brushes to wear out or corrode (low sulfur diesel, no problem)
• Wet motor design, no dynamic shaft seals that can wear out

INSTALLATION FEATURES:

• Requires the use of a bypass style regulator and return line
• Single Drop in Fuel Pump
• Installation kits available for Fabricator Series
• No wires to pass in fuel tanks
• Eliminates the need for multi-pump wiring, Y-blocks, and extra plumbing
• Easy service access flange system
• Installation kits sold separately
• Utilizes the factory tank, o-ring, lock ring and mounting location
• Can be used without 529 Series Electronic Fuel Pressure Regulator
• Features Noise Dampening Pump Mount Technology

Part numbers: 91901

Special order: imported to order. Contact us for price and availability.
