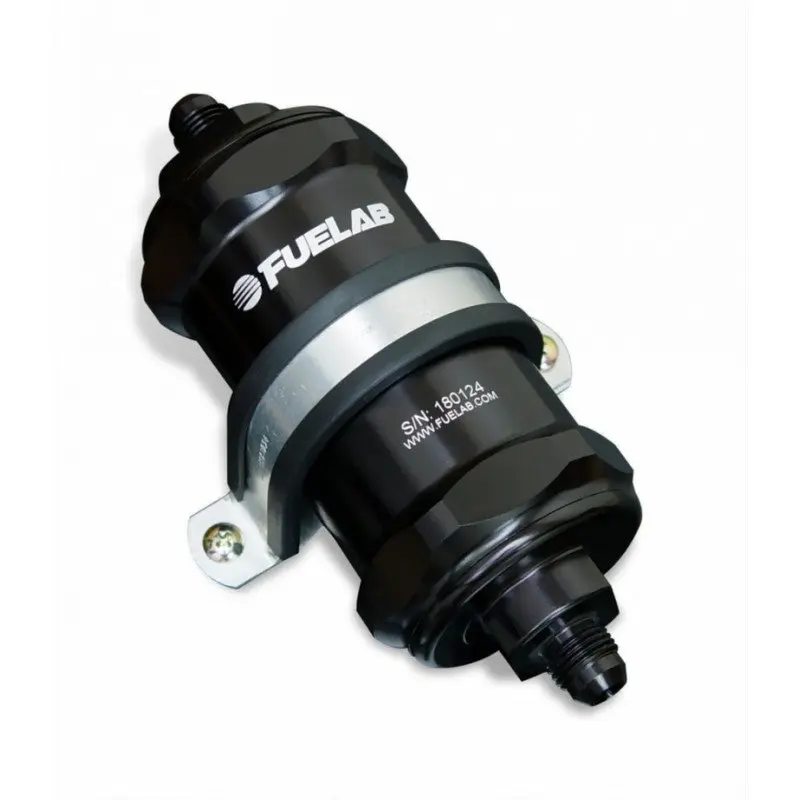

FUELAB 81823-1 In-Line Fuel Filter (10AN in/out, 3 inch 100 micron stainless steel element) Black

10AN inlet/outlet Fuelab filter with short (3 inch) 100 micron / Stainless Steel Element

Filter Features

• Compact design supports 200 GPH
• Gasoline, diesel, methanol, and ethanol fuel compatible
• Billet Aluminum with anodize per military MIL-A-8625, Type II
• -10AN male inlets and outlets
• Includes low profile saddle clamp mounting bracket(s)
• Replaceable or cleanable filter element
• 200 PSIG maximum pressure rating

Includes 100 micron / Stainless Steel Element – This filter element should only be used as a pre-filter for fuel pumps. It helps prevent pump cavitation with an extremely low pressure drop.

FUELAB In-Line Fuel Filters keep your engine running clean. They feature male AN / 37°Flared fitting end caps, so you can attach them directly to other fuel system components*. Also featured are machined internal radii for minimal pressure drop. The compact 818 Series Fuel Filter includes a 3-inch element. For greater flow capacity and increased filtration, the larger 828 Series Fuel Filter is equipped with a 5-inch element. (10 Micron / Paper elements are NOT compatible with Methanol or E85 usage). *With AN female ports. O-ring required. Consult component manufacturer’s port specifications.

Part numbers: 81823-1

Special order: imported to order. Contact us for price and availability.
