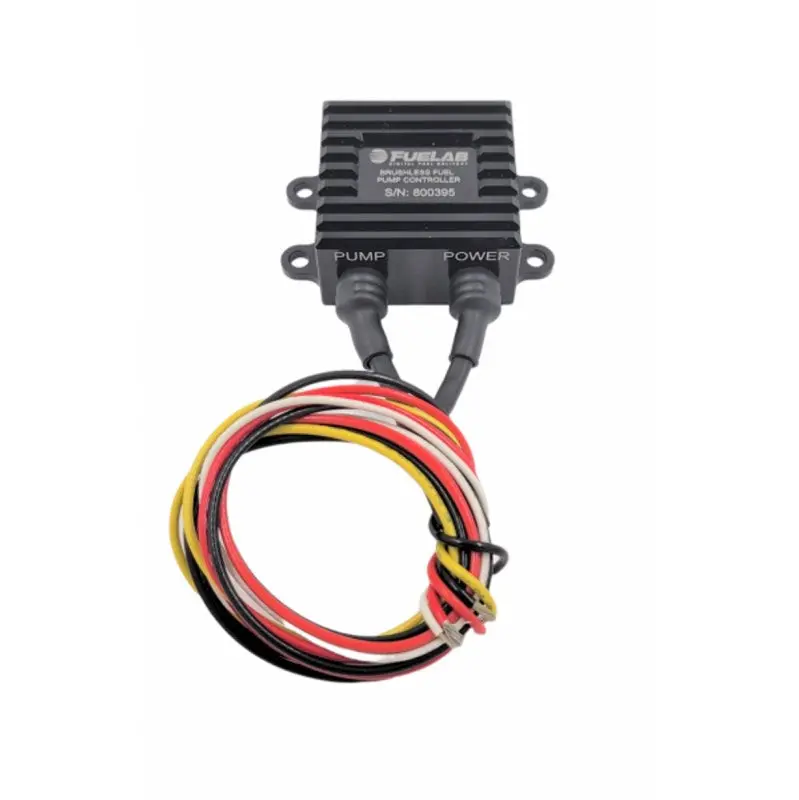

FUELAB 72007 Fuel Pump Controller DC Brushless (External) 50A
SKU: 72007 | Brand: Fuelab
Approximate Rs 79,903.36 not incl. of customs and shipping.
Call or message us for the price and availability.
Electronic (External) DC Brushless Fuel Pump Controller (Full or Variable Speed, PWM, 0-5v Input) 50A Rated CAN Communication Capable
Features
- Advanced CAN Integration
- User friendly CANopen communication allows easy tie in to controller
- CAN Customizable calibration options
- Data Streams include – Pump State (on,off), Pump Voltage, Pump Amperage, Pump Motor speed, PWM frequency and controller temp
- Offers multiple default and data codes for accurate diagnostics
- Compatible with 3-Phase DC Brushless Fuel Pumps
- (3-wire) without Internal Controllers Only
- 12 and 24v electrical system compatibility
- Billet Aluminum Enclosure
Pulse Width Modulation Compatibility (PWM) or 0-5v Input Signal
- Compatible with most aftermarket ECU’s with PWM output frequency
- Compatible from 100Hz to 5000Hz
Part numbers: 72007
Special order: imported to order. Contact us for price and availability.
