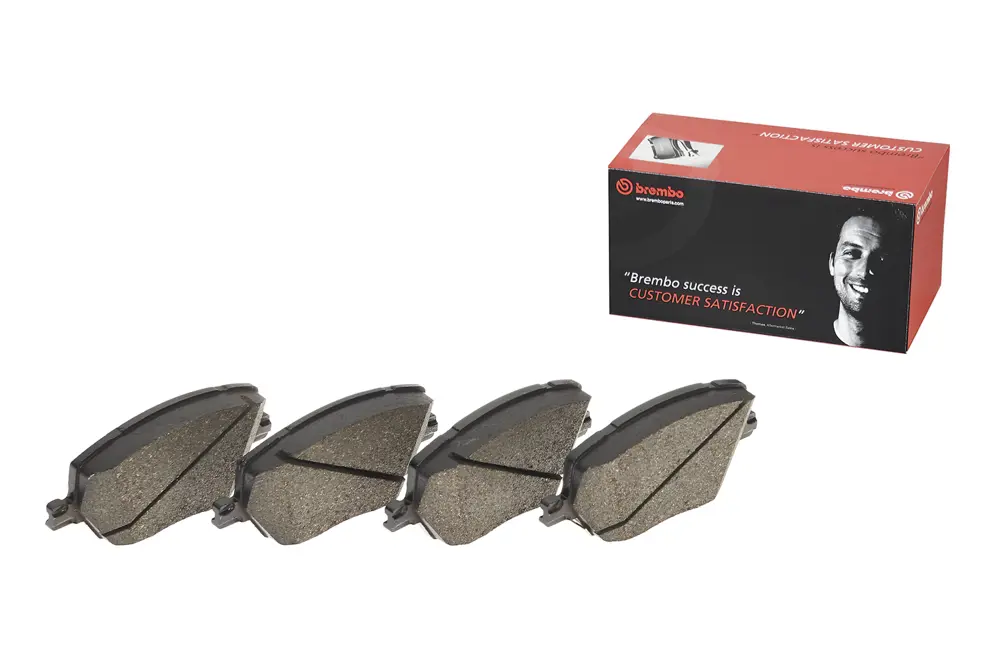

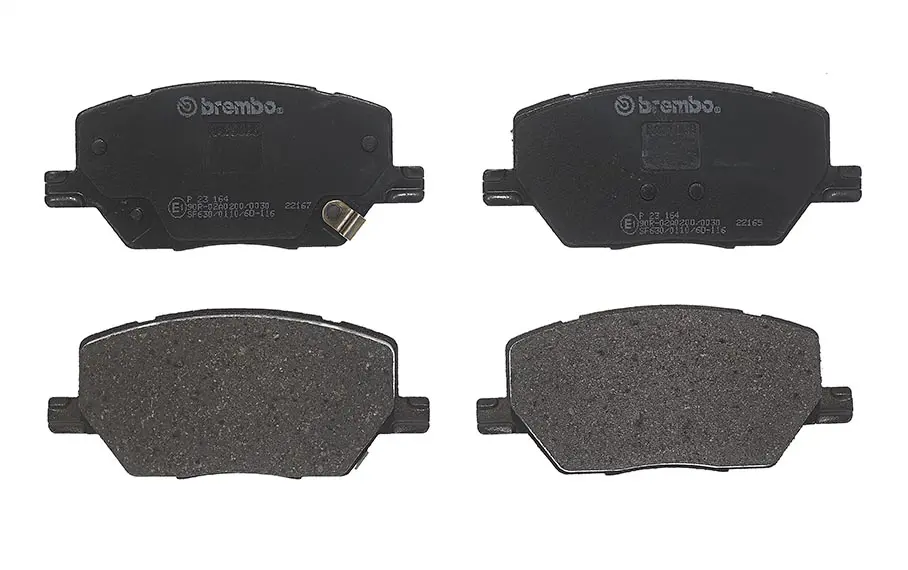

Brembo front brake pads. Part number P23164.
Fits these vehicles
- Compass / RenegadeAll years
| Width | 141 mm |
|---|---|
| Thickness | 21 mm |
| Height | 63 mm |
| Braking system | Mando |
| WVA number | 22166,22167,22165 |
| FMSI | D1811 9046 |
| Wear indicator | Acoustic |
| Accessories | With accessories; With anti-squeal shim; With brake caliper bolts |
| Axle | Front |
| EAN code | 8020584081006 |
| Brand | Brembo |
Equivalent and OE numbers are taken from the ICER catalogue entries that list this Brembo part as a cross reference.
Equivalent part numbers from other brands
ATE13.0460-5662.2, 605662
BENDIX BRAKING-TMDBPD2485
BENDIX-AUSTRALIADB2399 4WD
BENDIX-ROULUNDS511278
DELPHI LOCKHEEDLP3184
FERODOFDB4688
FMSID1811-9046
GIRLING6136296
HELLA-PAGID8DB 355 024-711, 8DB 355 025-901
ICER182243
MINTEXMDB3770
NECTOFD7623A, FD7709A
ROAD HOUSE21640.02
TEXTAR22165 201 0 5, 2216501, 2216503
TRWGDB2660, GDB3629
VALEO601431
WVA22165, 22166, 22167, 77369311
Original equipment (OE) numbers
FIAT7 736 728 2, 7 736 834 4
JEEP00K2AMV3886AB, 2AMV3886AA, 5 209 417 4, 68273005AA, 68299399AA, 68346917AA, 68346917AB, 68368829AA, 68379582AA, 68379582AB, 68404783AA, 7 736 721 4, 7 736 793 6, 7 736 821 1, 7 736 857 7, 7 736 877 8, K2AMV3886AA, K2AMV3886AB, K68346917AA, K68346917AB, K68346986AA, K68346986AB, K68379582AA, K68379582AB
Numbers are given for reference so you can check this part against the one you have or against another brand. Always confirm fitment for your vehicle before ordering.
