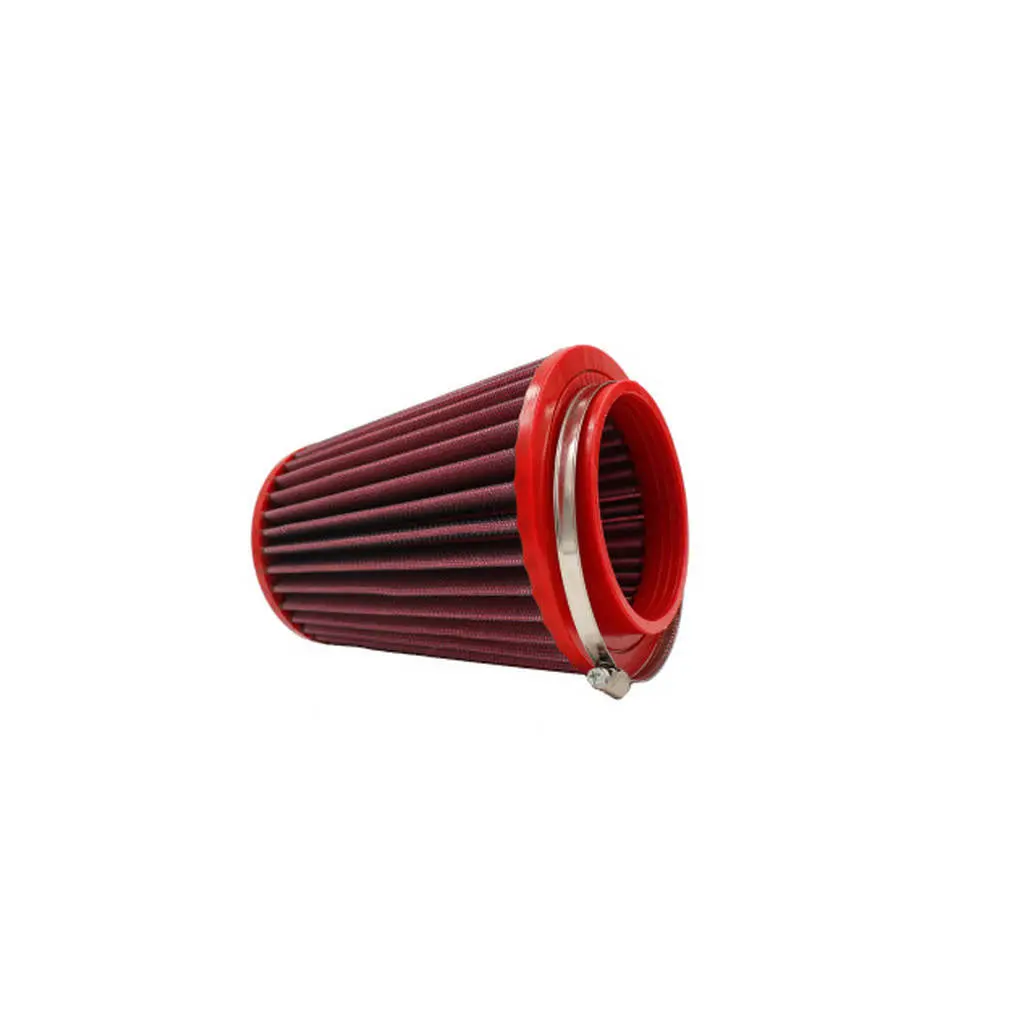

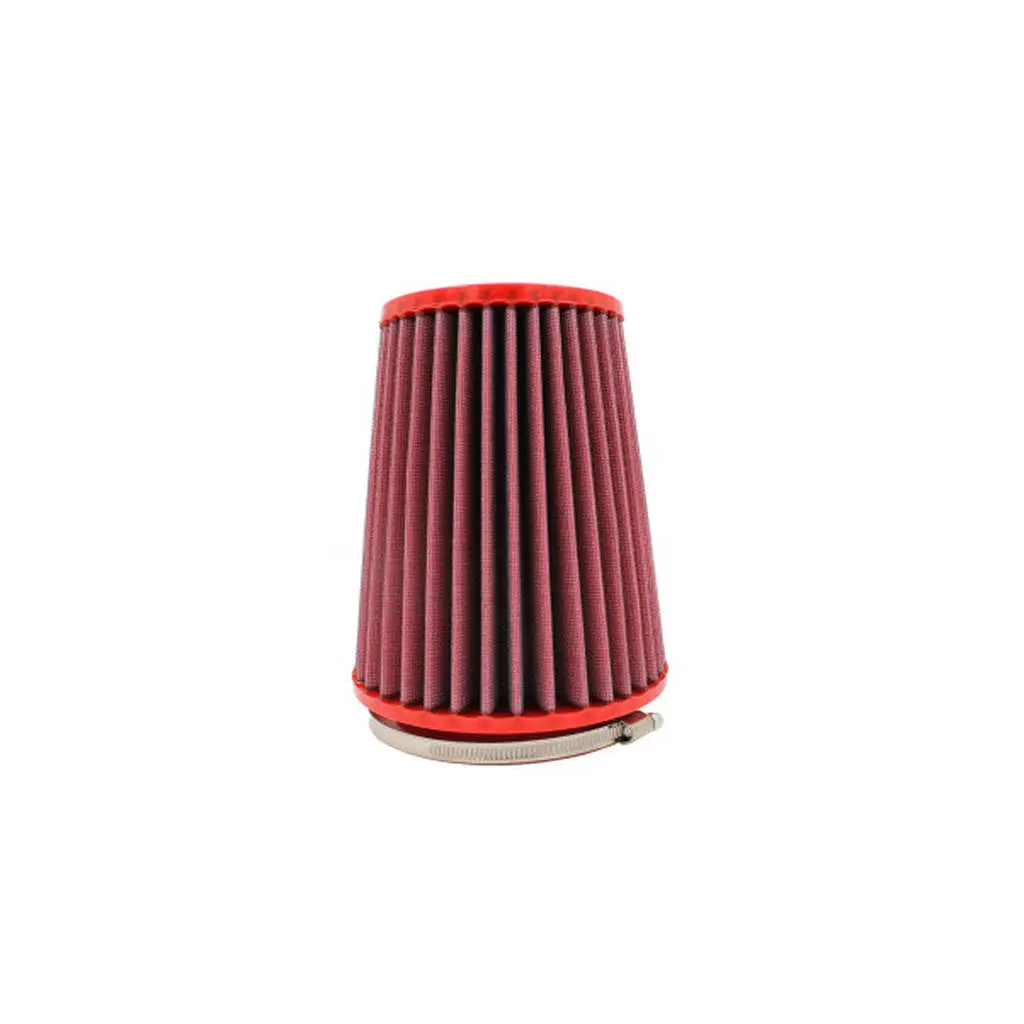

BMC FBSA00004 Conical filter 101mm

Description BMC FBSA00004 Conical filter 101mm (4 inches)

The BMC air filter features a metallic mesh with an oiled multilayer cotton filtration material. This design ensures a high level of filtering efficiency while minimizing air pressure loss. The oil provides the material with an adhesive property, helping to retain air impurities without restricting airflow, resulting in a continuous filtering process.

The cotton filtrating element is housed in an external support frame that interfaces with the air-box for secure installation. All stages of production, from design to manufacturing, are performed in Italy by Italian engineers using high-quality materials. BMC air filters are reusable, as the cotton material can be washed with a special detergent and re-oiled, reducing the need for frequent replacements and minimizing environmental waste.

BMC operates in automotive, racing, aerospace, nautical, and industrial sectors, adhering to the specific regulations and requirements of each. Rigorous testing ensures higher quality compared to paper, foam, and plastic materials. Filtration tests are conducted according to ISO 5011 standards, with BMC Air Filters achieving a 98.5% filtering efficiency.

• Oiled multilayer cotton filtration material for high efficiency
• Reusable and washable with special detergent and oil
• Tested to ISO 5011 standards with 98.5% filtering efficiency
• Manufactured in Italy using high-quality materials

Kit comes with:

• Special BMC detergent
• Oil applicator (spray or dispenser version)

Technical features

• Flanges: 1
• Flange Length (mm): 16
• Flange Inside Diameter O1 (mm): 101
• Base Outside Diameter O2 (mm): 152
• Height – H2 (mm): 194
• Height – H1 (mm): 178
• Top Outside Diameter O3 (mm): 114
• Top material – Finish: Polyurethane

Product Box Info

• Product Box Width (mm): 186
• Product Box Length (mm): 212
• Product Box Height (mm): 194
• Gross Weight (Kg): 0,40
• Package Quantity: 1
• Package Contents: 1 Air Filter

Part numbers: FBSA00004

Special order: imported to order. Contact us for price and availability.
