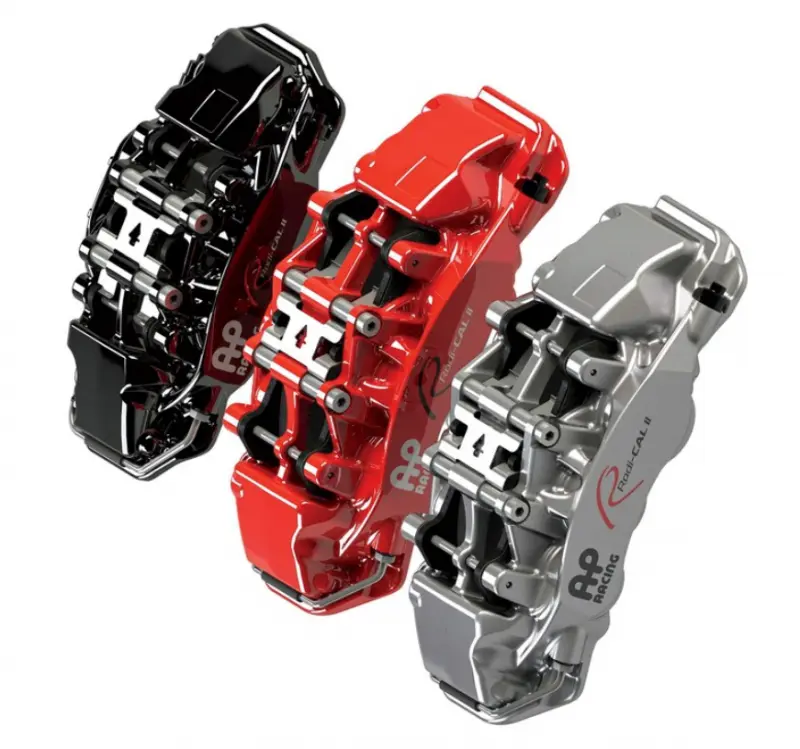

AP RACING CP9561-3S0S10 Brake caliper Radi-CAL (EEK)LHTx36.00-CP7555

CP9561 Family – 58.6cm² Piston Area

Applications:
– Performance Road Front or Rear.

Features:
– Benefits from our latest radical asymmetric design concept.
– Radial Mount, 195mm centres.
– Suits Ø390mm Max or 356mm Min x 36mm Max or 34mm Min thick discs.
– Forged two piece Aluminium alloy body.
– Aluminium alloy pistons.
– Boot type dirt seals fitted.
– Advanced Red, Black or Silver anti-corrosion paint finish.
– Pad anti-rattle clip fitted.

Black Caliper Part Numbers:
RHT = CP9561-2S0BG4 / LHT = CP9561-3S0BG4

RHL = CP9561-4S0BG4 / LHL = CP9561-5S0BG4

Red Caliper Part Numbers:
For Red calipers add ‘R12’ to end of Part Number e.g.
CP9561-2S0R12

Silver Caliper Part Numbers:
For Silver calipers add ‘S10’ to end of Part Number e.g.
CP9561-2S0S10

Brake Pad
CP7555D70

– Pad Area = 108.9cm²
– Pad Depth = 70mm
– Thickness = 16.75mm

CALIPER TECHNICAL SPECIFICATIONS
Piston Sizes – mm
– Ø31.8 x 4
– Ø41.3 x 2

Piston Area – cm² 58.6

Disc Diameter – mm
– Max = 390.0
– Min = 362.0

Disc Diameter – mm
– Max = 36.0
– Min 34.0

Weight (No Pads) – Kg 4.5
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting centres – mm 195.0
Mounting Offest – mm 49.50
Mounting Hole Ø – mm 12.1
PL Dimension – mm 70.0
Bleed Scrwe Tightening Torque – Nm 17.0

CALIPER SPARES
Pistons
Ø31.8mm = CP8336-116 x 4
Ø41.3mm = CP8335-111 x 2

Seal Repair Kit CP427-EEK

Tube Pad Retainer and Bolt part Nos
CP9560-106 x 4
CP5555-156ST
Pad Retaining Pin CP7555-116 x 2
Bleed Screw Kit CP3880-1
Pad Anti Rattle Clip CP9560-107

Part numbers: CP9561-3S0S10, RACING

Special order: imported to order. Contact us for price and availability.
