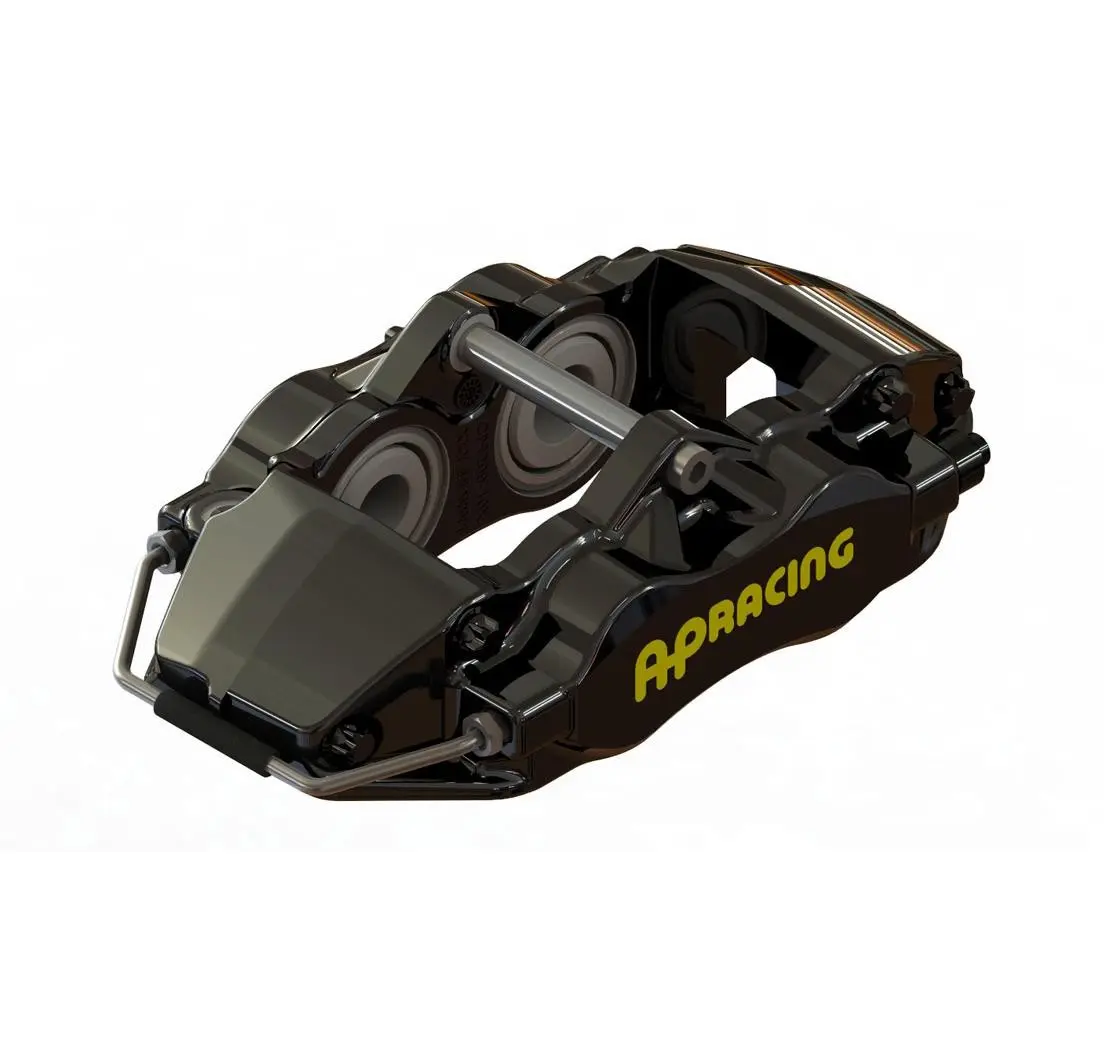

AP RACING CP9202-5S0BG Brake caliper Radi-CAL (CC)LHLx28.0-CP3215

CP9202 – Forged Rear – 152mm Mounting Ctrs

Applications:
– Rear.
– Factory Big Brake Kit. – Compliment CP9040 Front 6 piston caliper.
Features:
– Radial Mount, 152mm centres.
– Suits Ø360 x 28mm Max / 26mm Min Disc.
– Forged two piece Aluminium alloy body. – Designed to compliment CP9040. 6 piston caliper family.
– Aluminium alloy pistons.
– Boot type dirt seals fitted.
– Advanced Red or Black anti-corrosion paint finish.
– Pad anti-rattle clip fitted.

Black Caliper Part Numbers:
– RHT = CP9202-2S0BG / – LHT = CP9202-3S0BG.
– RHL = CP9202-4S0BG / – LHL = CP9202-5S0BG.

Red Caliper Part Numbers:
For Red calipers add ‘R2’ to end of Part Number e.g.
CP9202-2S0R2

TECHNICAL SPECIFICATIONS   Piston Sizes – mm

27.0mm (1.06″) x 4

Disc Diameter – mm 360.0 Disc Thickness – mm – Max = 28.0
– Min = 26.0 Weight (no pads) – Kg 2.48 Hydraulic Threads M10x1.0 Mounting Type Radial Mounting Centres – mm 152.0 Mounting Offset – mm 46.86 Mounting Hole Ø – mm   ‘PL’ Dimension – mm 60.36 Bleed Screw Tightening Torque 17Nm

• Click on the link to download the relevant drawing.
  •  – Customer Drawing
  •  – Technical Specifications Sheet

  Part numbers: CP9202-5S0BG, RACING

  Special order: imported to order. Contact us for price and availability.
