CP8520 Family – 62.5cm² Piston Area Applications: – Performance Road Front.

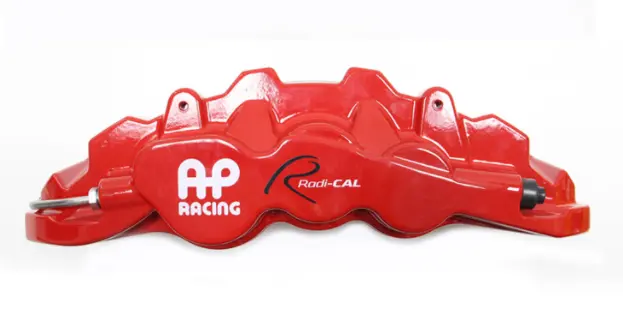

AP RACING CP8520-5S0R2 Brake caliper Radi-CAL (EHK)LHLx35.6-CP7555
SKU: CP8520-5S0R2 | Brand: AP Racing
Approximate Rs 98,805.69 not incl. of customs and shipping.
Call or message us for the price and availability.
CP8520 Family – 62.5cm² Piston Area
Applications:
– Performance Road Front.
– Factory Radi-CAL™ Brake Kits.
Features:
– Benefits from a radical asymmetric design concept.
– Radial Mount, 195mm centres.
– Suits Ø410mm or 380mm x 36mm thick discs.
– Forged two piece Aluminium alloy body.
– Aluminium alloy pistons.
– Boot type dirt seals fitted.
– Advanced Red or Black anti-corrosion paint finish.
– Pad anti-rattle clip fitted.
Black Caliper Part Numbers:
– RHT = CP8520-2S0BG
– LHT = CP8520-3S0BG.
– RHL = CP8520-4S0BG
– LHL = CP8520-5S0BG
Red Caliper Part Numbers:
For Red calipers add ‘R2’ to end of Part Number e.g.
CP8520-2S0R2
Brake Pad Information
– Pad Area = 108.9cm²
– Pad Depth = 70mm
– Thickness = 16.75mm
CALIPER TECHNICAL SPECIFICATIONS
Piston Sizes – mm Ø31.8 / Ø36.0 / Ø41.3
Piston Area – cm² 62.5
Disc Diameter – mm
– Max = Ø410.0
– Min = Ø380.0
Disc Thickness – mm 36.0
Weight (No Pads) – Kg 4.65
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting Centres – mm 195.0
Mounting Offset – mm 49.50
Mounting Hole Ø – mm 12.10
PL Dimension – mm 70.0
Bleed Screw Tightening Torque – Nm 17
CALIPER SPARES
Pistons
– Ø31.8mm = CP8336-116
– Ø36.0mm = CP8520-107
– Ø41.3mm = CP8335-111
Seal Repair Kit CP4527-EHK
Pad Retainer Type / Part No. Pin / CP7555-116
H / Piece and Bolt CP8520-106 & CP3596-112ST x 2
Bleed Screws CP3880-1
Pad Anti Rattle Clip
CP8520-110
Part numbers: CP8520-5S0R2, RACING
Special order: imported to order. Contact us for price and availability.
