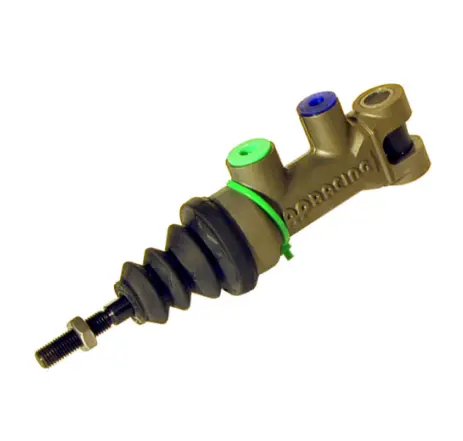

AP RACING CP7854-89PRTE Master brake cylinder 15mm (single-circuit)

CP7854

A high efficiency single circuit, short push type master cylinder. Fixed through a trunnion system running in needle roller bearings and with a one piece piston / push rod it offers a significant improvement in efficiency over traditional cylinder designs.
Ranging from 14mm to 7/8″ with 30mm stroke and 15/16″ to 1.00″ with 28mm stroke.

Note:
The following master cylinder part numbers have larger body dimensions, please check customer drawing before cylinder selection.
CP7854-93 / -94 / -95 & -96.

Features:
– Hard anodised Aluminium Alloy body.
– Compact Design.
– Extra Short travel to cut-off standard.
– One piece piston and push rod.
– Use with CP5520-3, -4 or -13 Trunnion type balance bar or purpose designed pedal box.
– Full range of 10 bore sizes.
– Rubber boots fitted as standard.
– Replaces CP5854 family

Weight – .28 to .293Kg (.61 to .64lbs)
Full Stroke – 14mm to 7/8″ Bores – 30mm (1.18″) /- 15/16″ to 1.0″ Bores – 28mm (1.10″)
Travel To Cut-Off – Extra Short – .48 to .63mm (.19″ to .25″)
Inlet Hydraulic Thread – 7/16″ x 20UNF
Outlet Hydraulic Thread – 3/8″ x 24UNF
Push Rod Threads – PRTE = 5/16″ x 24UNF

Bore Sizes Available Part Numbers
14mm – CP7854-88PRTE
15mm – CP7854-89PRTE
15.9mm (.625″) 5/8″ – CP7854-90PRTE
16.8mm – CP7854-905PRTE
17.8mm (.70″) – CP7854-91PRTE
19.1mm (.75″) 3/4″ – CP7854-92PRTE
20.6mm (.812″) 13/16″ – CP7854-93PRTE
22.2mm (.875″) 7/8″ – CP7854-94PRTE
23.8mm (.937″) 15/16″ – CP7854-95PRTE
25.4mm (1.00″) – CP7854-96PRTE

Part numbers: CP7854-89PRTE, RACING

Special order: imported to order. Contact us for price and availability.
