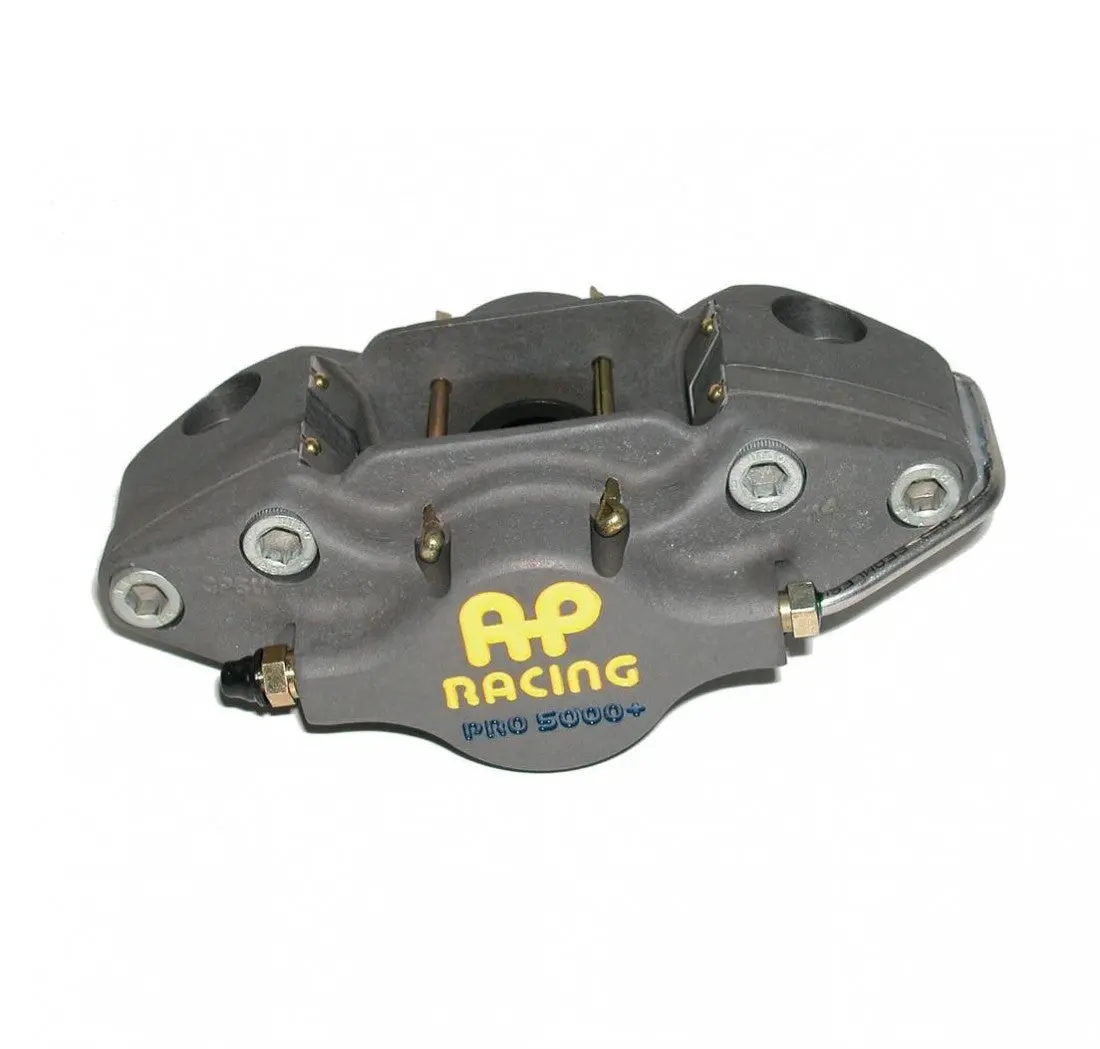

AP RACING CP5020-20S0 Brake Caliper ACAL(H)RHTx09,6-CP2399

 Applications:
– Lightweight Single Seater..
– F2 Rally Rear.
– Race Rear.

Features:
– Radial Mount, 130.0mm x 17.5mm centres.
– Cast Aluminium alloy body.
– Suits Ø280.0mm x 9.6mm solid disc.
– Aluminium alloy Pistons.
– High temperature seals.
– Split pin pad retainer.
– Stainless Steel wear plates.

TECHNICAL SPECIFICATIONS   Piston Sizes – mm Ø36.0 x 2 Piston Area – cm² 20.4 Weight (No pads) – Kg 1.5 Hydraulic Threads M10x1.0 Mounting Type Radial Mounting Centres – mm 130.0 Mounting Offset – mm 17.5 Mounting Hole Ø – mm 10.1 ‘PL’ Dimension – mm 41.5 Bleed Screw Tightening Torque 17Nm

• Click on the link to download the relevant drawing.
  •  Customer Drawing

  Part numbers: CP5020-20S0, RACING

  Special order: imported to order. Contact us for price and availability.
