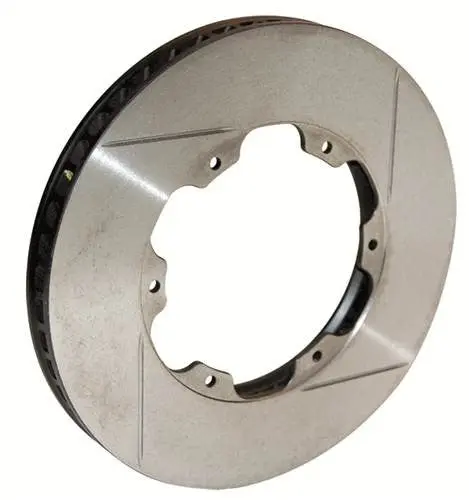

AP RACING CP4136-568G4 Brake Disc
SKU: CP4136-568G4 | Brand: AP Racing
Approximate Rs 44,983.56 not incl. of customs and shipping.
Call or message us for the price and availability.
- ‘A’ Outside Diameter (mm): 254
- ‘B’ Thickness (mm): 21
- ‘M’ P.C.D. Diameter (mm): 139.7
- Mounting Hole Number: 6
- Mounting Fixing Type: “Bolted”
- Mounting Hole Diameter (mm): 6.4
- ‘C’ Eye Diameter (mm): 154.9
- ‘D’ Inside flange Diameter (mm): 125.8
- ‘H’ Mtg Flange Thickness (mm): 5.6
- Max Pad Depth: D46
- Number of Vanes: 36
- Air Gap (mm): 9.3
- Weight (kg): 3.2
- Face Types Available: G4
Part numbers: CP4136-568G4, RACING
Special order: imported to order. Contact us for price and availability.
