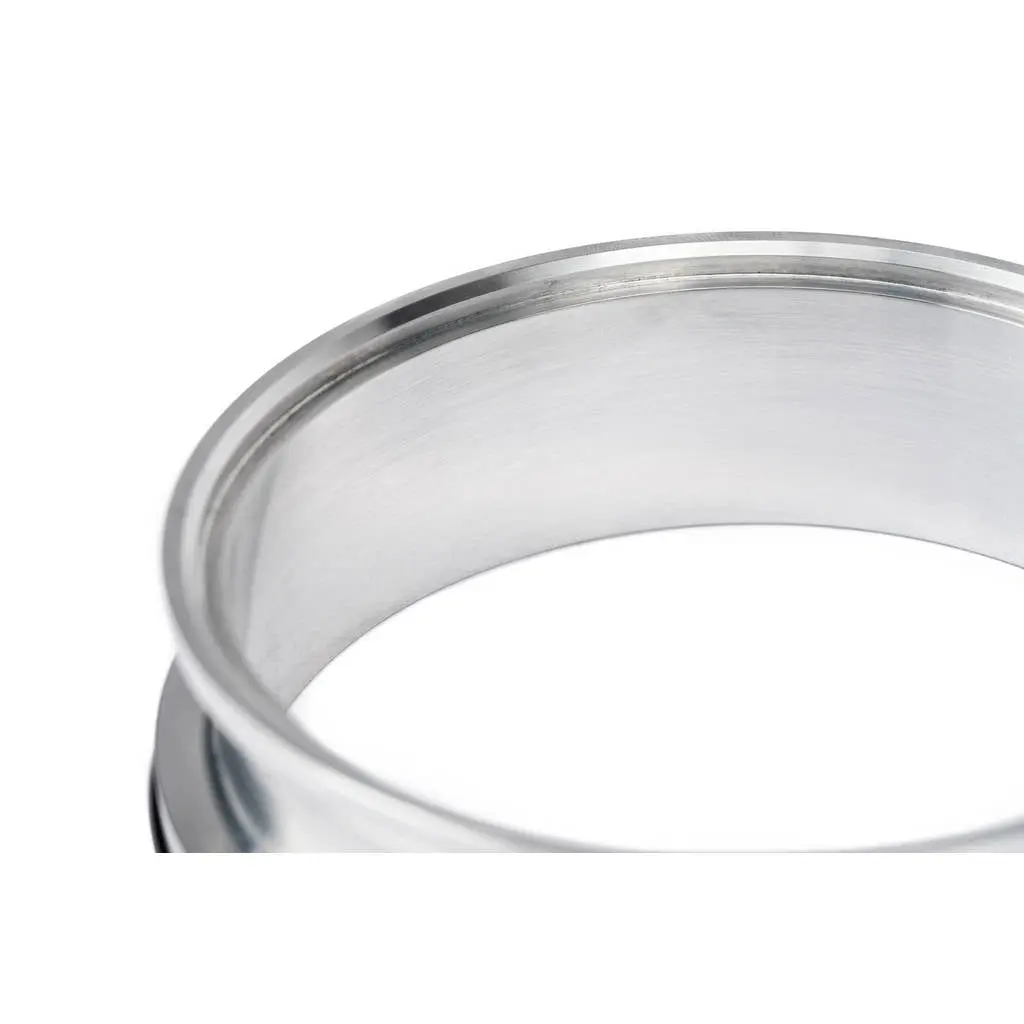

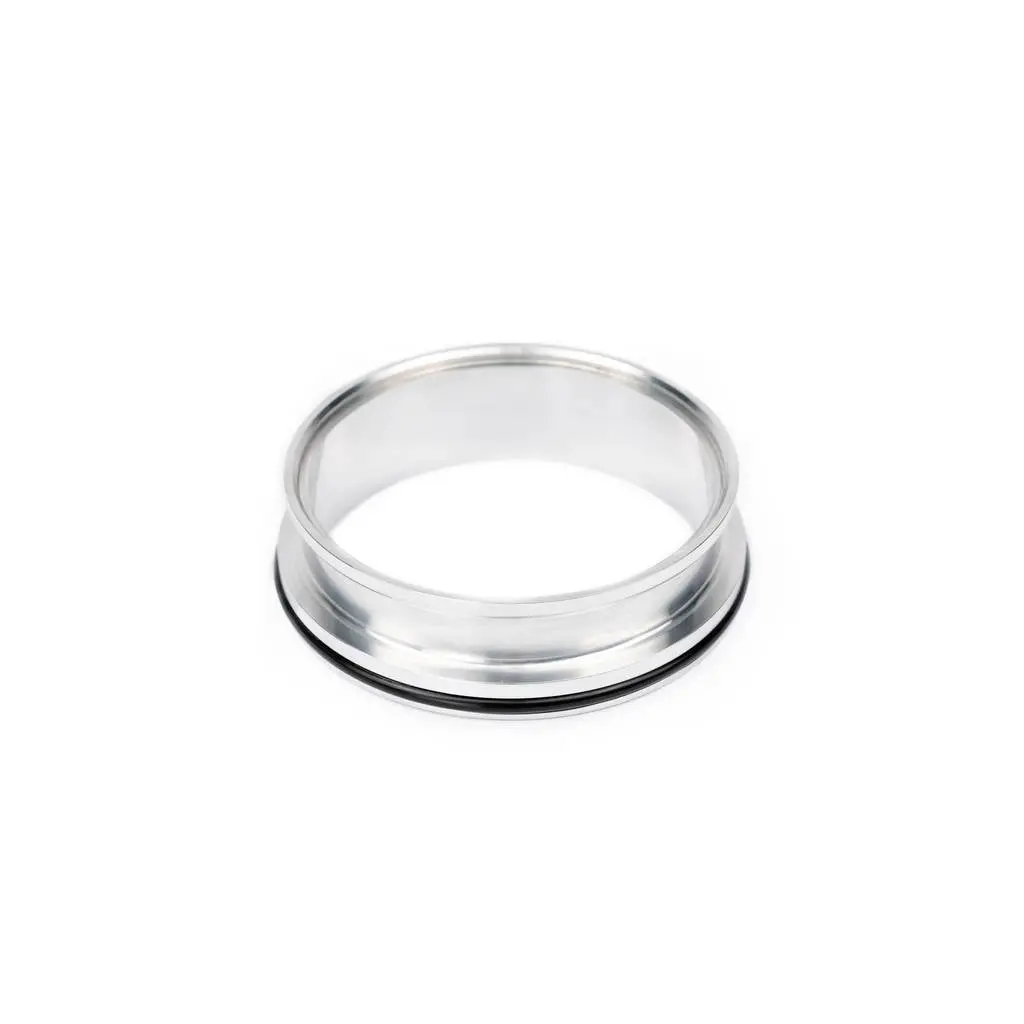

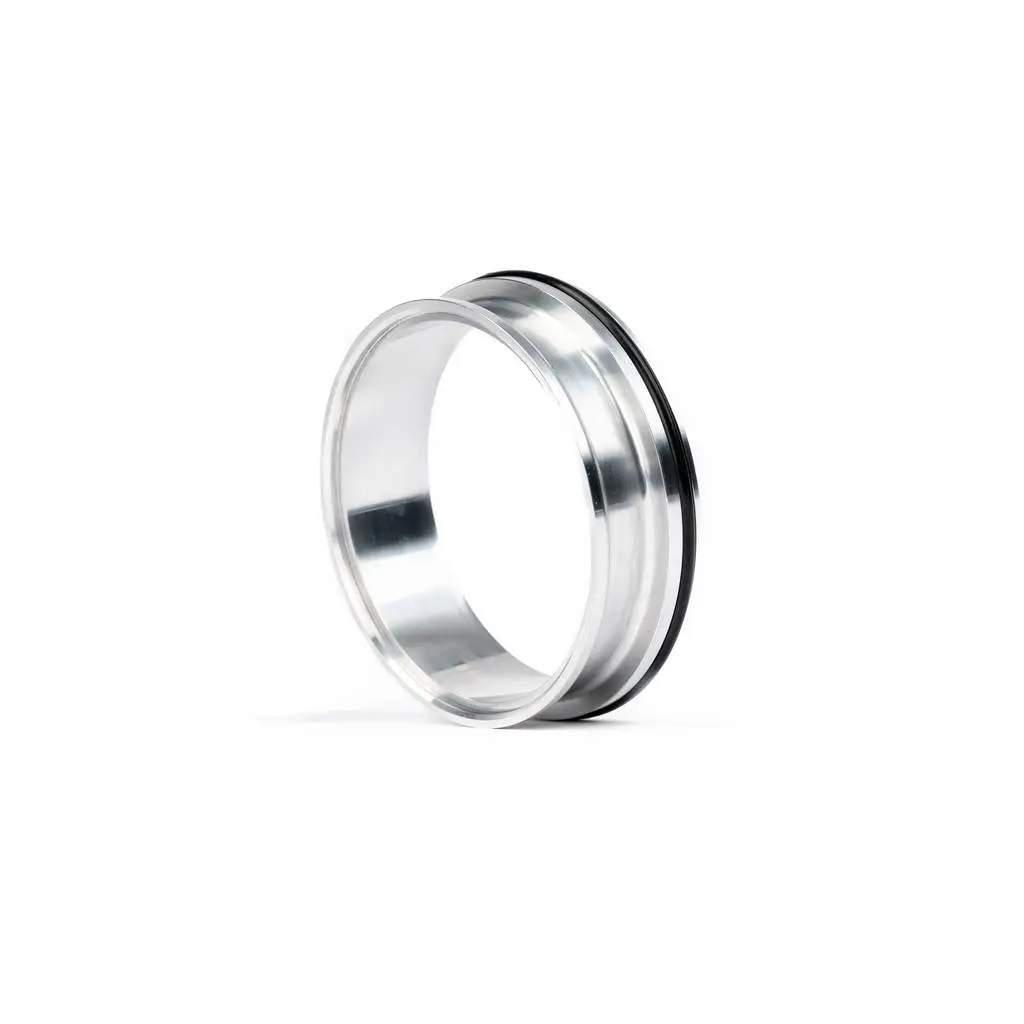

AMS AMS.00.09.3505-1 Standard Ferrule QuickClamp 3.5″

Description AMS AMS.00.09.3505-1 Standard Ferrule QuickClamp 3.5″

The AMS QuickClamp System offers a high-performance solution for induction piping connections, delivering both reliability and ease of use. This system serves as an upgrade over traditional silicone hose connections, providing a secure, articulating connection that helps prevent decoupling during engine operation.

The integrated push-pin design allows for toolless clamp release, enabling quick and easy removal of piping connections. CNC machined from 6061-T6 billet aluminum, the QuickClamp System ensures durability and long-term reliability, even under demanding conditions.

Product Notes: Ferrule ONLY. Clamps and Retaining Rings available separately.

Product Notes: Sold individually.

Product Notes: Universal fitment, requires custom fabrication.

Product Notes: Each ferrule type is designed for a specific fabrication application, depending on project requirements. The Standard ferrule is intended for use with aluminum tubing commonly used for intake and charge pipes. Panel ferrules can be mounted directly to sheet metal, such as intercooler end tanks. Flat ferrules are receiver-less and are suitable for mounting to turbo compressors or other unorthodox applications.

• Allows articulation between piping to prevent decoupling during engine operation
• Upgrade over silicone hose connections
• Integrated push-pin for toolless clamp release
• Provision for safety wire or cotter pin to prevent accidental release

Specifications:

• Lab and FEA tested to 120 PSI
• CNC machined 6061-T6 billet aluminum construction

Part numbers: AMS.00.09.3505-1

Special order: imported to order. Contact us for price and availability.
