MXm is the dash logger which provides all the info needed by racers: it samples and shows key info like speed, laptimes, RPM, gears, it has a 9 axis inertial platform, multiple math channels and much
AIM X87MXM0000 MXm Dash logger
SKU: X87MXM0000 | Brand: AIM
Approximate Rs 1,68,361.24 not incl. of customs and shipping.
Call or message us for the price and availability.

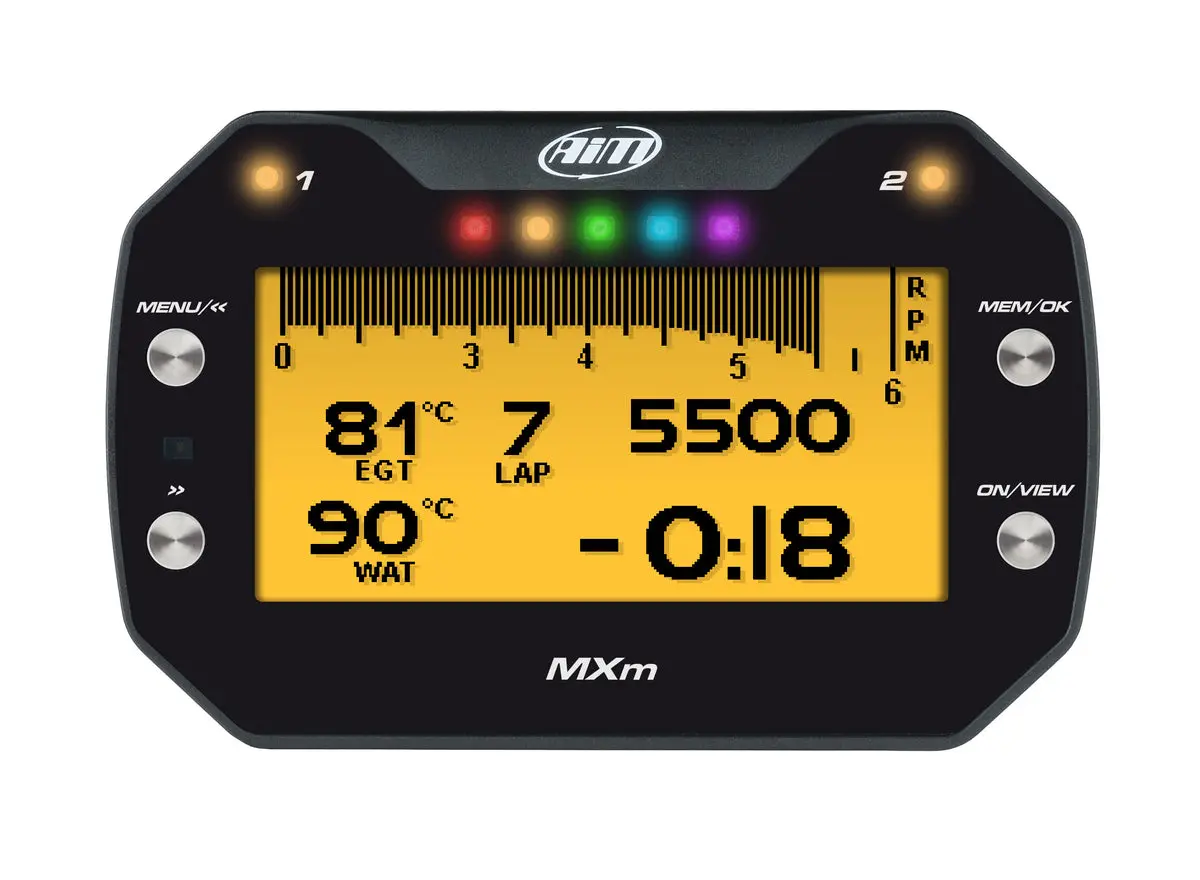

MXm is the dash logger which provides all the info needed by racers: it samples and shows key info like speed, laptimes, RPM, gears, it has a 9 axis inertial platform, multiple math channels and much more. Its strengths are the compactness, which makes MXm perfect to be fit into any kind of car and bike, and its plug-and-play usage: complete but simple, MXm is the perfect device for both Pro and Amateaur racers.
MXm features two power outputs that can drain up to 15 A each. The two power outputs can be configured in order to be turned on/off depending on the value of the analog or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights,to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.
- User guide can be downloaded here
- Technical sheet can be downloaded here
- Installation template (scaled 1:1) can be downloaded here
IN THE BOX MXm, USB cable, 37 pins standard harness, power cable, Race Studio 3 software.
Part numbers: X87MXM0000
Special order: imported to order. Contact us for price and availability.
