AiM X05SNVK301 Sensor Front wheel speed

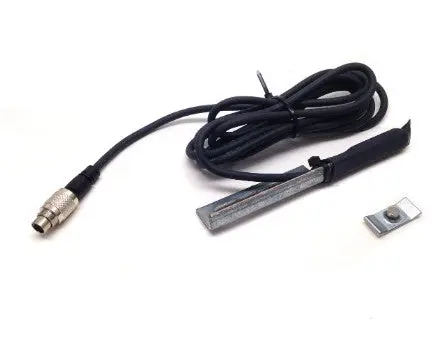

AiM devices can measure the kart front wheel speed using a non-contact sensor that needs a magnetic metallic trigger to pass in front of it. The sensor kit includes a metal plate with a magnetic cylinder and a metallic bracket the sensor is welded to.

• Datasheet can be downloaded here

  Installation notes

• Install the magnetic plate on the front wheel rim;
•  install the bracket on the steering arm; if the steering arm is solid make a hole in it with a 6mm drill bit;
• when mounting the bracket ensure that the sensitive part passes in front of the cylinder at a 3-5 mm distance;
• irmly fix the bracket to the steering arm to avoid sensor movements due to the strong vibrations of the kart front wheel;
• ensure the bracket does not get in contact with the metallic plate when steering;

Part numbers: X05SNVK301

Special order: imported to order. Contact us for price and availability.
