AiM 0-50 PSI pressure sensor is suitable for oil, fuel and water pressure reading, being able to readpressures up to 50 PSI.

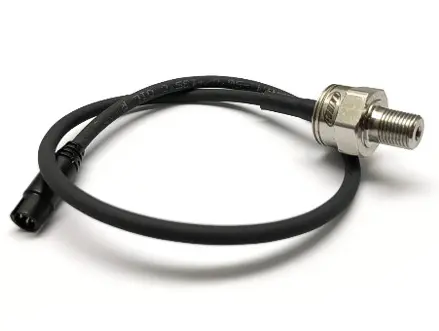

AIM X05PSA00050P18K AiM pressure sensor 0-50 PSI
SKU: X05PSA00050P18K | Brand: AIM
Approximate Rs 30,912.04 not incl. of customs and shipping.
Call or message us for the price and availability.
AiM 0-50 PSI pressure sensor is suitable for oil, fuel and water pressure reading, being able to readpressures up to 50 PSI. Technical characteristics:
- Supply – 8-16 V
- Accuracy – < +/- 0.5% FS (CLNH – combined non-linearity and hysteresis)
- Characterisation – 500 mV/ 0 bar 4500 mV/ 5 bar
- Consumption – < 10 mA
- Temperature working range – from -20°C to 135°C
- Sealing – IP66
- Housing – 316 stainless steel
- Weight – 30 g
- Cable – length 400 mm
- Thread – 1/8 NPT
Datasheet can be downloaded here
Race Studio3 configuration can be downloaded here
Race Studio 2 configuration can be downloaded here
Part numbers: X05PSA00050P18K
Special order: imported to order. Contact us for price and availability.
