AiM 0-10bar 3/8 24 pressure sensor is suitable for oil and fuel pressure reading, being able to read pressures up to 10 bars.

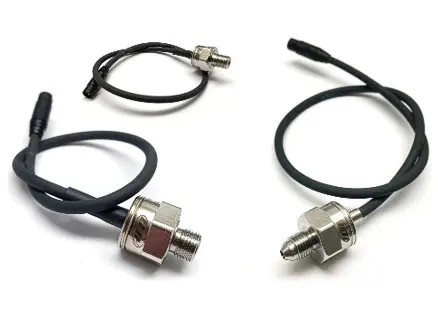

AIM X05PSA00010B38K AiM pressure sensor 0-10 bar
SKU: X05PSA00010B38K | Brand: AIM
Approximate Rs 30,903.22 not incl. of customs and shipping.
Call or message us for the price and availability.
AiM 0-10bar 3/8 24 pressure sensor is suitable for oil and fuel pressure reading, being able to read pressures up to 10 bars. The sensor is sold with three different threads, whose part number is:• 0-10 bar M10 – X05PSA00010B10K• 0-10bar 1/8 NPT – X05PSA00010B18K• 0-10 bar 3/8 24 – X05PSA00010B38K Technical characteristics:
- Supply – 8-16 V
- Accuracy – < +/- 0.5% FS (CLNH – combined non-linearity and hysteresis)
- Characterisation – 500 mV/ 0 bar 4500 mV/ 5 bar
- Consumption – < 10 mA
- Temperature working range – from -20°C to 135°C
- Sealing – IP66
- Housing – 316 stainless steel
- Weight – 30 g
- Cable – length 400 mm
- Thread – M10 – 3/8 24 – 1/8 NPT
Datasheet can be downloaded here
Race Studio3 configuration can be downloaded here
Race Studio 2 configuration can be downloaded here
Part numbers: X05PSA00010B38K
Special order: imported to order. Contact us for price and availability.
