AiM 0-5bar pressure sensor is suitable for oil, fuel and water pressure reading, being able to read pressures up to 5 bars.
AIM X05PSA00005B38K AiM pressure sensor 0-5 bar
SKU: X05PSA00005B38K | Brand: AIM
Approximate Rs 30,912.04 not incl. of customs and shipping.
Call or message us for the price and availability.

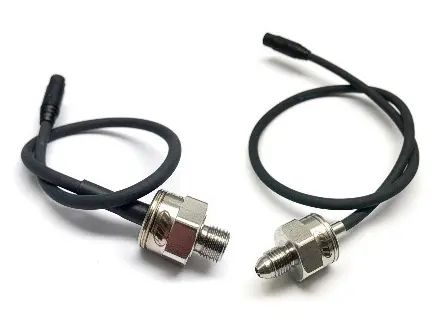

AiM 0-5bar pressure sensor is suitable for oil, fuel and water pressure reading, being able to read pressures up to 5 bars. The sensor is sold with two different threads, whose part number is:• 0-5 bar M10 X05PSA00005B10K• 0-5 bar 3/8 24 X05PSA00005B38K
- Technical characteristics:
- Supply – 8-16 V
- Accuracy – < +/- 0.5% FS (CLNH – combined non-linearity and hysteresis)
- Characterisation – 500 mV/ 0 bar 4500 mV/ 5 bar
- Consumption – < 10 mA
- Temperature working range – from -20°C to 135°C
- Sealing – IP66
- Housing – 316 stainless steel
- Weight – 30 g
- Cable – length 400 mm
- Thread – M10 – 3/8 24
Datasheet can be downloaded here
Race Studio3 configuration can be downloaded here
Race Studio 2 configuration can be downloaded here
Part numbers: X05PSA00005B38K, X05PSA00005B10K
Special order: imported to order. Contact us for price and availability.
